Toris-Panel Series

The post adopts an elegant symmetrical circular arc design, which makes the same visual effect of internal and external of the site;

Send Inquiry

Product Description

Features

✓

Easy Installation

✓

Cost effective

✓

Durable

✓

Different colors available (RAL 6005, 7016, etc)

✓

Different post available

✓

High strength, strong protection ability

Applications

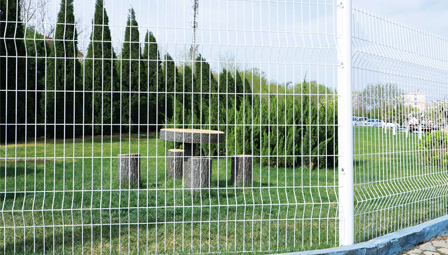

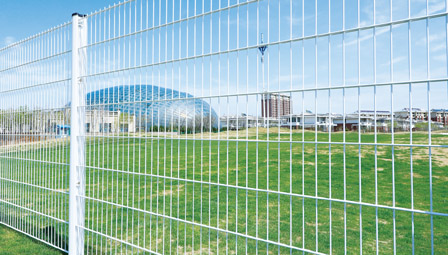

Ideal for Parks, gardens, living areas, and more.

Technical Specifications

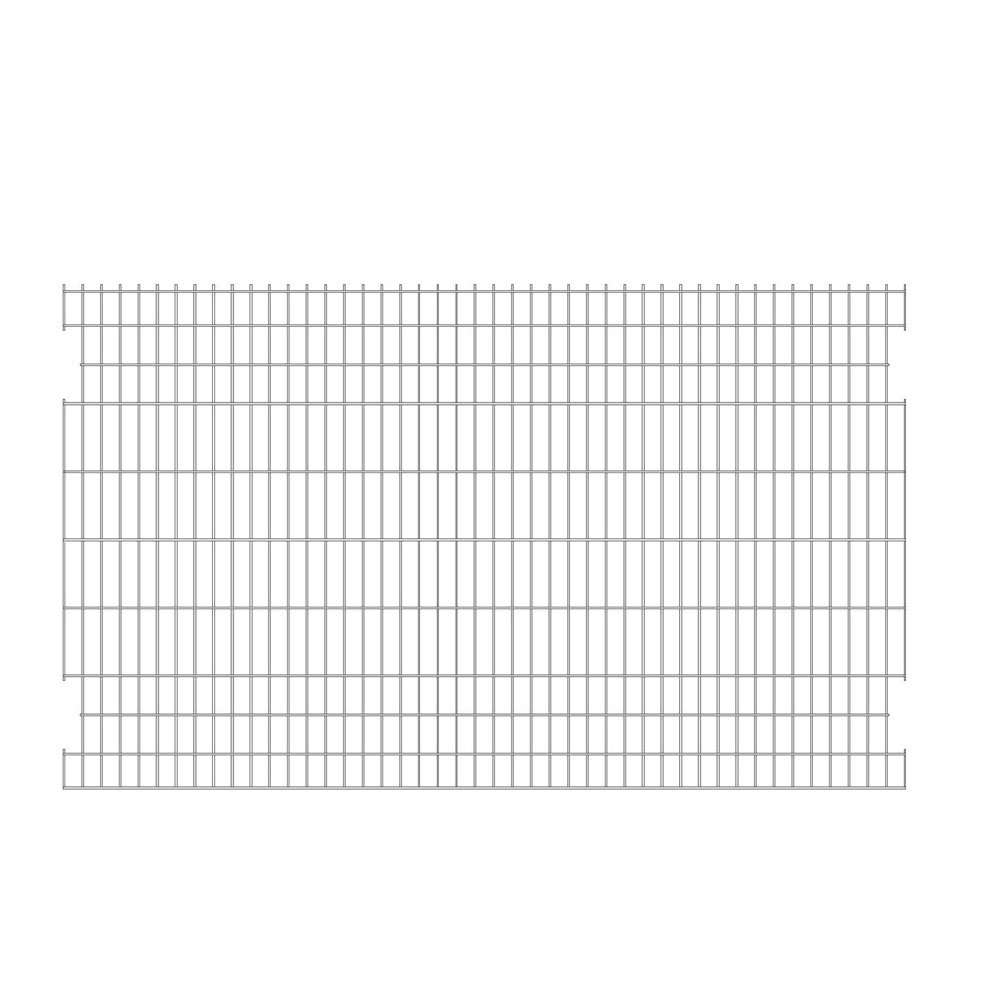

Toris-Double wire panel

Wire (mm)	Mesh (mm)	Width of Panel (mm)	Height of panel (mm)	Post section size (mm)	Distance between posts (mm)	Post Height (mm)
6/5/6	50x200	2500	1420 / 1620 / 1820 / 2020 / 2220 / 2420	95x65x1.5	2523	1900 - 3000
Note: 1. Other wire sizes available: 8+6+8 and 6+6+6. 2. Panel width is the center distance between side wires. 3. Height of the wire refers to the vertical length.

Toris-Single wire panel

Wire (mm)	Mesh (mm)	Width (mm)	Height (mm)	Post Size (mm)	Dist. between posts (mm)	Post Height (mm)
4/4 or 5/5	55x200 / 55x100	2475 / 2970	1420 - 2420	95x65x1.5	2497 - 2993	1900 - 3000
4/4 or 5/5	65x200 / 65x100	2470 / 2990	1420 - 2420	95x65x1.5	2492 - 3013	1900 - 3000
Note: 1. Mesh sizes available in 50x100 and 50x200. 2. Panel width is the center distance between side wires. 3. Height of the wire refers to the vertical length.

Packaging & Shipping

1) Pallet packing: Ensures safe and reliable transportation to the warehouse, preventing damage during transit.

2) Stretch film wrapping: The entire pallet is wrapped to maintain tidiness and prevent bumps or scratches.

3) Accessories: Clips and screws are securely packed in sets using plastic film and carton boxes.

* Special loading capacities are available based on different requests.

Frequently Asked Questions

Q1: What colors are available for the wire panels? A: We offer a variety of colors according to special requirements, including standard RAL 6005 (Green) and RAL 7016 (Anthracite Grey).

Q2: Can the wire size be customized for double wire panels? A: Yes, in addition to the standard 6/5/6mm, we also provide 8+6+8mm and 6+6+6mm wire sizes.

Q3: How is the product protected during long-distance shipping? A: We use professional pallet packing wrapped in stretch film to prevent scratching and bumping, ensuring the goods arrive in perfect condition.

Q4: What are the typical applications for these panels? A: These panels are widely used for security and decoration in parks, gardens, and residential living areas.

Q5: Are installation accessories included? A: Yes, accessories like clips and screws are packed in organized sets using plastic film and sturdy carton boxes.

Q6: Is the installation process difficult? A: Not at all. One of the main features of our system is "Easy Installation," designed for efficiency and stability.
