Easy Installation
Cost effective
Durable Performance
Standard Colors: RAL 6005, 7016, etc.
Multiple Post Options
High strength & Protection
Ideal for Parks, Gardens, Living areas, and various residential or commercial fencing needs.

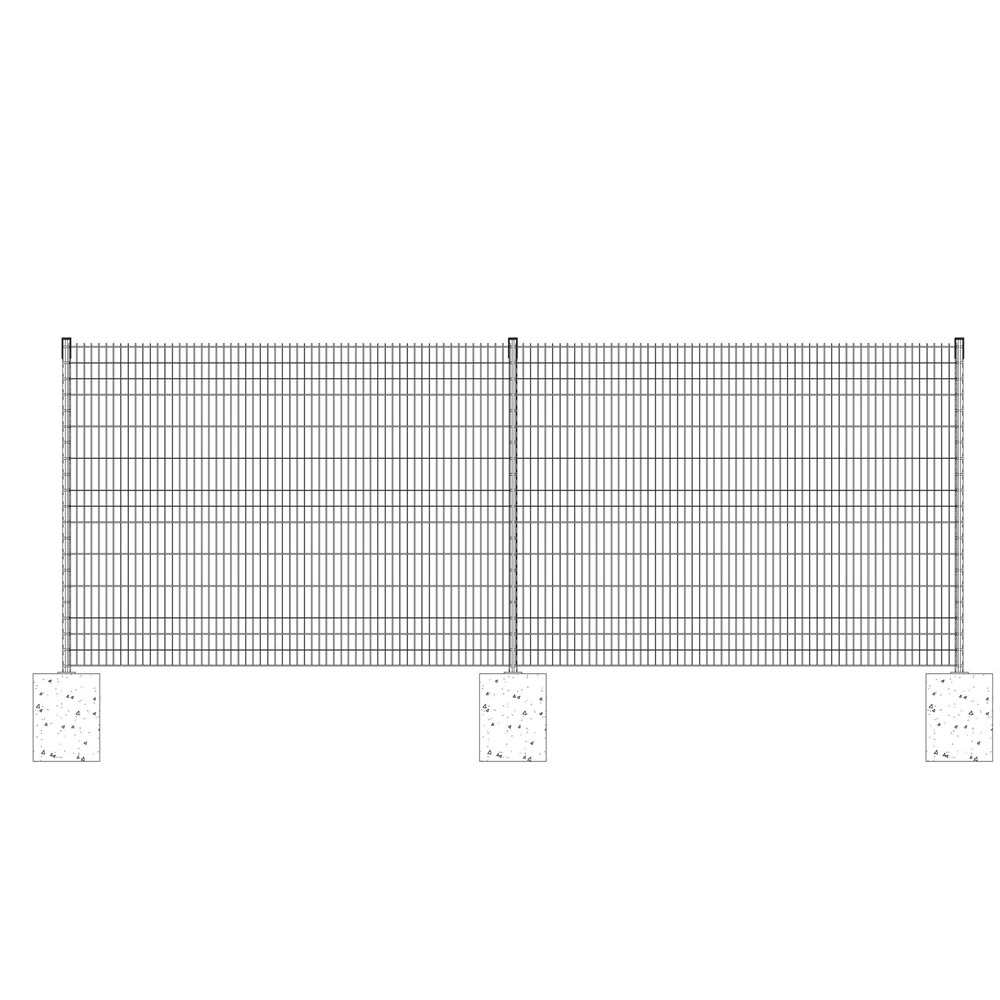

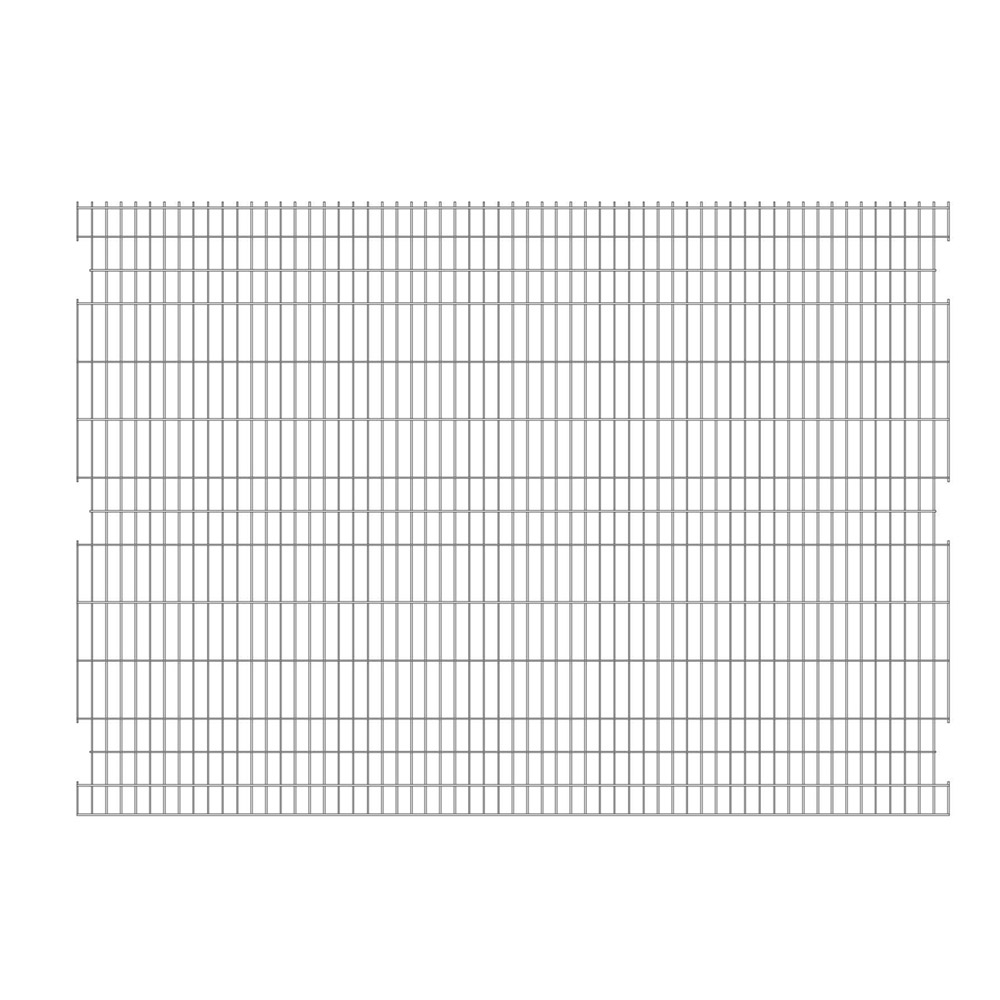

| HERA panel series | |||||||
| Wire(mm) | Mesh(mm) | Width of Panel(mm) | Height of panel(mm) | Post section size(mm) | Distance between posts(mm) | Post Height(mm) | |
| Width 2475(4/5) | Width 2970(4/5) | ||||||
| 4/4 & 5/5 | 55x200 / 55x100 | 2475/2970 | 1420 | 67.3x54x1.2 | 2522/2523 | 3017/3018 | 1900 |
| 1620 | 2100 | ||||||
| 1820 | 2300 | ||||||
| 2020 | 2500 | ||||||
| 2220 | 2800 | ||||||
| 2420 | 3000 | ||||||
| 4/4 & 5/5 | 65x200 / 65x100 | 2470/2990 | 1420 | 67.3x54x1.2 | 2517/2518 | 3037/3038 | 1900 |
| 1620 | 2100 | ||||||
| 1820 | 2300 | ||||||
| 2020 | 2500 | ||||||
| 2220 | 2800 | ||||||
| 2420 | 3000 | ||||||
1) Pallet Packing: Ensures safe and reliable transportation to the warehouse. Special loading capacities are available based on specific requests.
2) Protective Wrapping: Entire pallets are wrapped in stretch film to maintain cleanliness and prevent scratches or bumping during transit.
3) Accessories: Clips and screws are packed in sets using plastic film and sturdy carton boxes.
