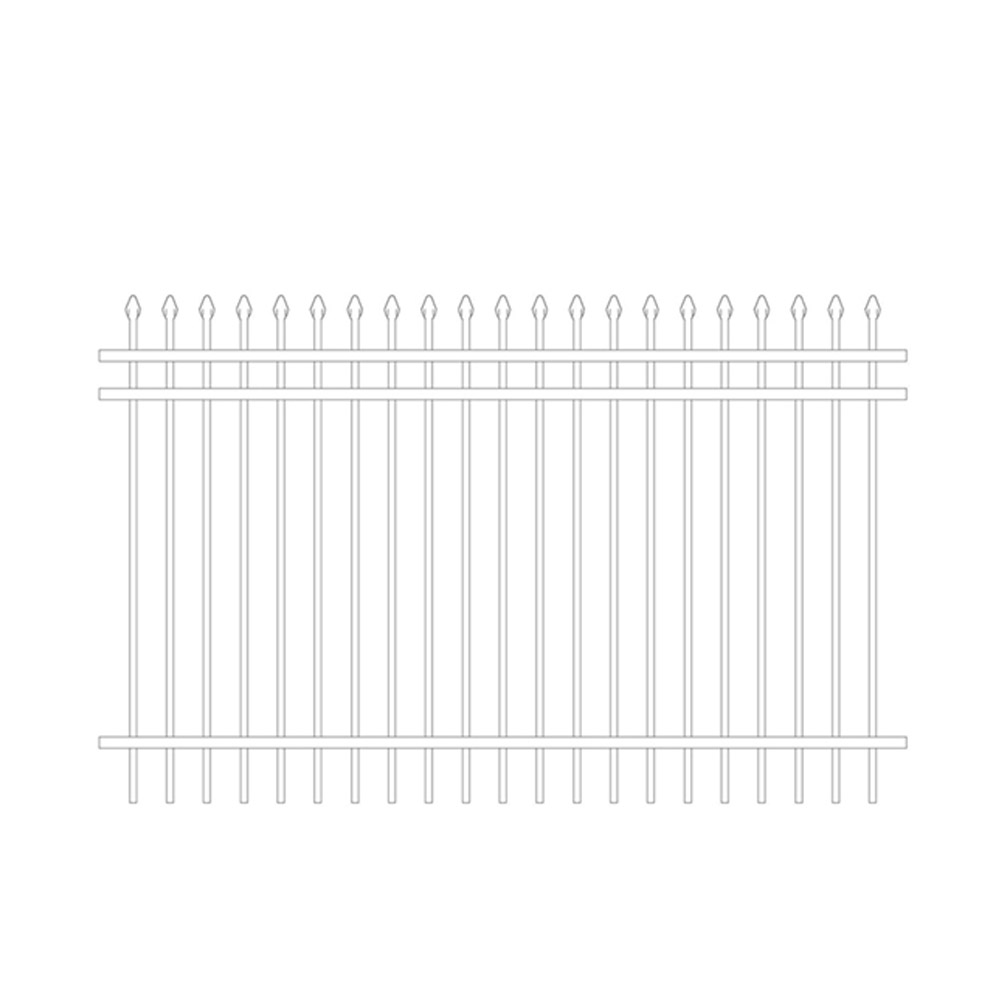

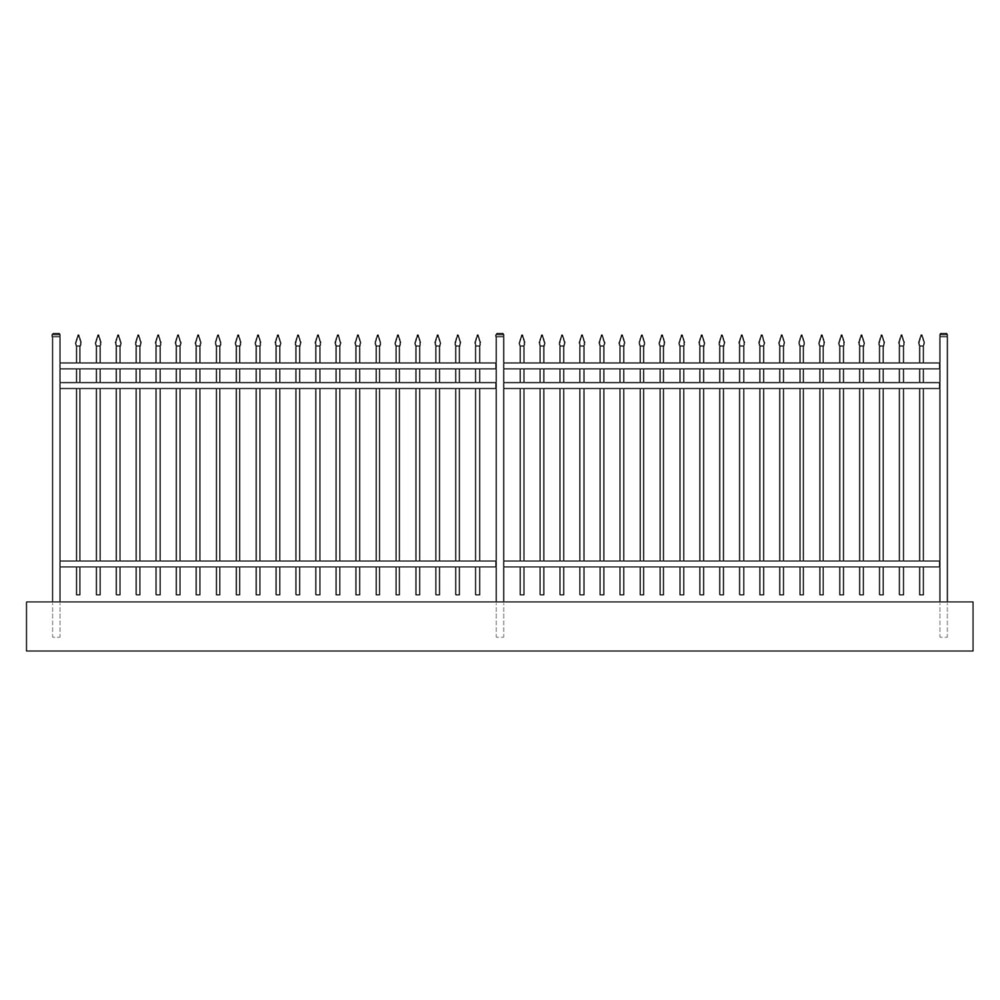

SQUARE-Panel Series

Simple and generous design of square post, which can improve the strength of the post.

Product Description

Features

  • Easy Installation
  • Cost effective
  • Durable
  • Different colors available (RAL 6005, 7016, etc)
  • Different post available
  • High strength, strong protection ability

Applications

Ideal for Parks, gardens, living areas, and more.

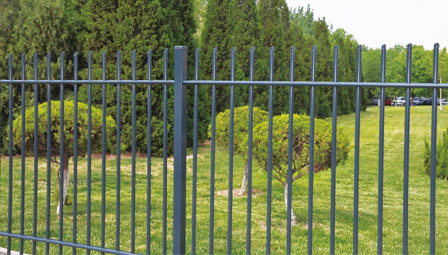

Application 1

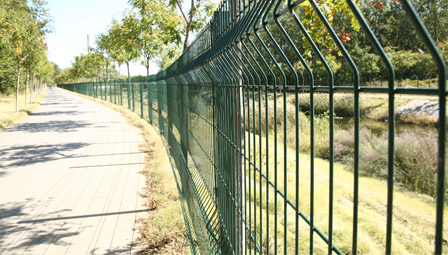

Application 2

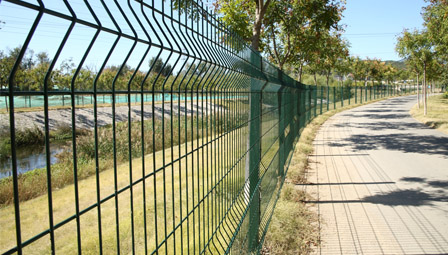

Application 3

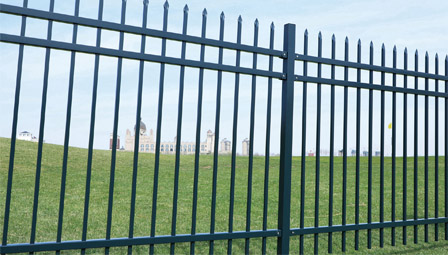

Application 4

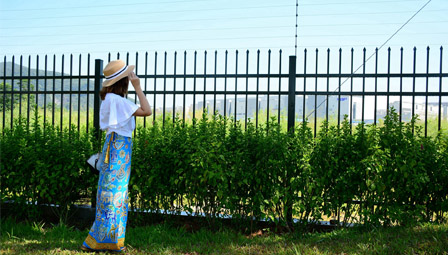

Application 5

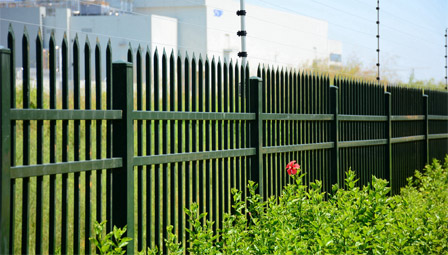

Application 6

Size varies from different requirements

SQUARE-Single wire panel

Wire(mm) Mesh(mm) Width of Panel(mm) Height of panel(mm) Post section size(mm) Distance between posts(mm) Post Height(mm)
4/4 & 5/5 55x200 / 55x100 2475/2970 1420-2420 80x80x2 2498 / 2993 1900-3000
- - - 2520-3420 120x60x3 - 3200-4200
- - - 3620-5920 120x60x4 - 4400-6900
Note: 1. Other mesh sizes available: 50x200/50x100, 65x100/65x200; 2. Width is center distance between side wires; 3. Height is vertical length.

SQUARE-Double wire panel

Wire(mm) Mesh(mm) Width of Panel(mm) Height of panel(mm) Post section size(mm) Distance between posts(mm) Post Height(mm)
6+5+6 50x200 2500 1420-2420 80x80x2 2526 1900-3000
- - - 2520-3420 120x60x3 - 3200-4200
- - - 3620-5920 120x60x4 - 4400-6900
Note: 1. Other wire diameters: 8+6+8mm, 6+6+6mm; 2. Width is center distance; 3. Height is vertical length.

SQUARE-Small mesh panel

Wire(mm) Mesh(mm) Width of Panel(mm) Height of panel(mm) Post section size(mm) Distance between posts(mm) Post Height(mm)
4/4 25.4x100 2500 1420-2420 80x80x2 2532 1900-2600
- - - 2020-4020 120x60x3 - 2600-4800
Note: 1. Other mesh sizes: 12.7x76.2mm; 2. Width is center distance; 3. Height is vertical length.

Packaging & Shipping

Pallet packing: Makes transportation safer and more reliable, ensuring complete delivery to the warehouse. Special loading capacity available upon request.
Stretch film wrap: Entire pallets are wrapped to ensure tidiness and prevent bumping or scratching during transit.
Accessories: Clips and screws are packed in sets using plastic film and sturdy carton boxes.

Frequently Asked Questions

What colors are available for the panels?
We offer a wide range of colors based on customer requirements, including standard RAL 6005 (Green) and RAL 7016 (Anthracite Grey).
How is the product protected during shipping?
All goods are palletized and wrapped in stretch film to prevent scratches and ensure stability during transportation. Accessories are boxed separately.
Are different mesh sizes available?
Yes, we can provide various mesh sizes such as 50x200mm, 55x100mm, and even small mesh options like 12.7x76.2mm depending on your security needs.
Is the installation process difficult?
No, our system is designed for easy installation with compatible posts and specialized clip/screw sets included in the package.
What materials are used to ensure durability?
We use high-strength wire with professional coating to ensure the panels are weather-resistant and have a long service life in various environments.
