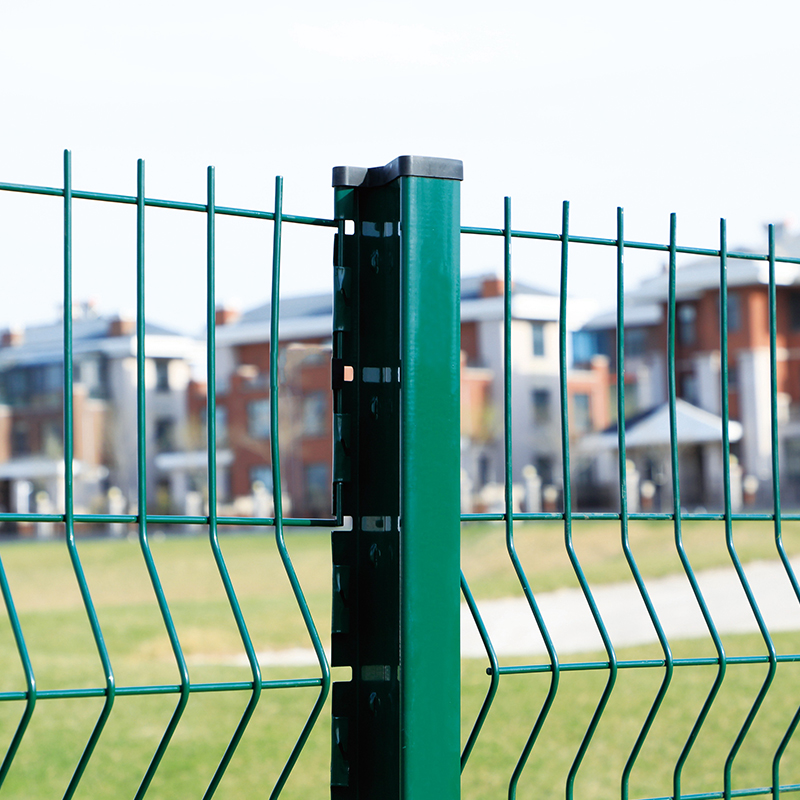

DOVE panel series

Introducing our innovative 3D fence system, designed to provide unparalleled security and aesthetics for residential and commercial properties.

Send Inquiry

Product Description

With its unique three-dimensional structure, our 3D fence not only provides an effective barrier but also enhances the visual appeal of your property.
Whether you are looking to secure your home, office, or public space, our 3D fence system will meet your needs.
Choose from a variety of colors and finishes to complement your surroundings and create an attractive aesthetic. With our 3D fence system, you can enjoy both security and style in one seamless package.
Experience peace of mind with our reliable and sturdy 3D fence solution, designed to withstand even the harshest weather conditions.
Rest easy knowing that our 3D fence system has been rigorously tested to meet industry standards for strength and durability.

Advantages

Streamlined Design

Symmetrical scissors streamline design of the dovetail. Effective reduction of wind resistance increases the stability of equilibrium.

Durability & Standards

No spare parts installed way, avoid the rust of spare parts. Strict application of the galvanized steel in accordance with the international standard.

Advanced Technology

Adopt international advanced Nano-ceramics and electrostatic powder spraying technology. Provide a professional 10 years guarantee of anti-corrosion.

Product Features

Easy Installation
Cost effective
Durable
Different colors available (RAL 6005, 7016, etc)
Different post options
High strength, strong protection

Applications

Ideal for Parks, Gardens, Living Areas, and more.

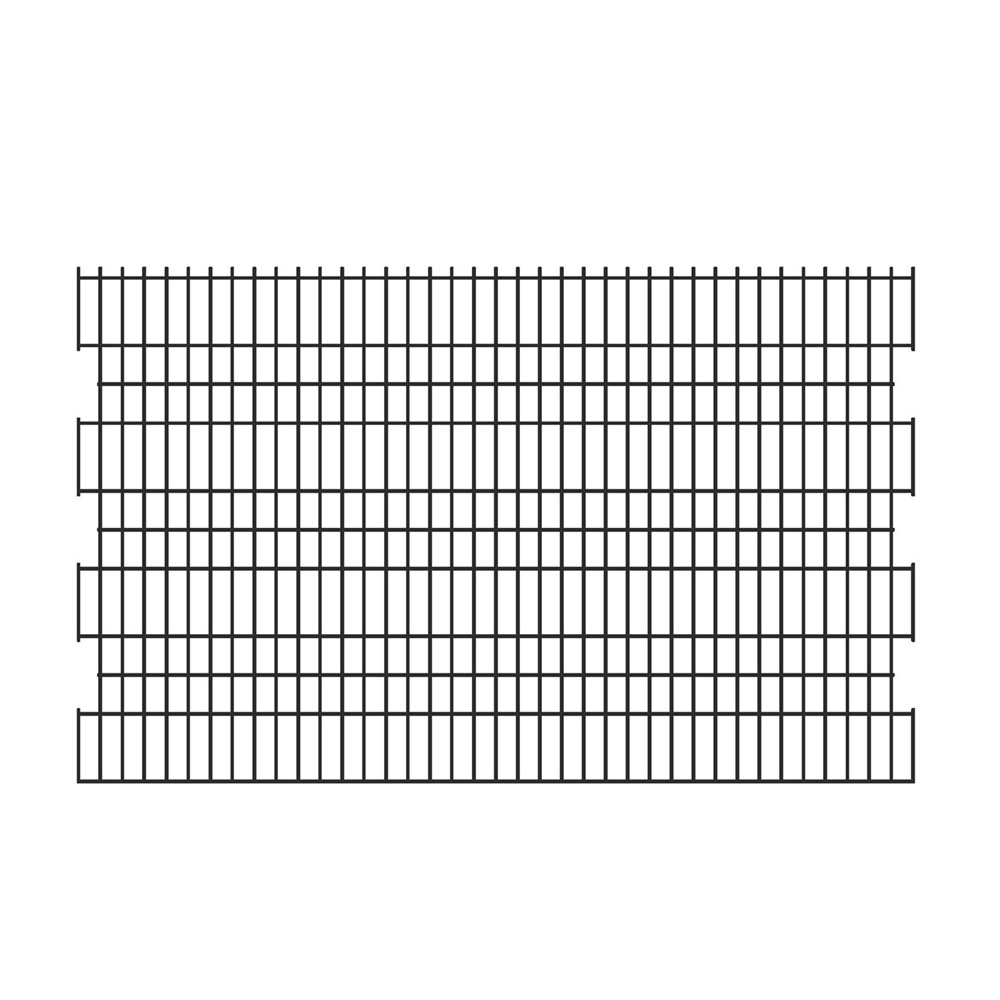

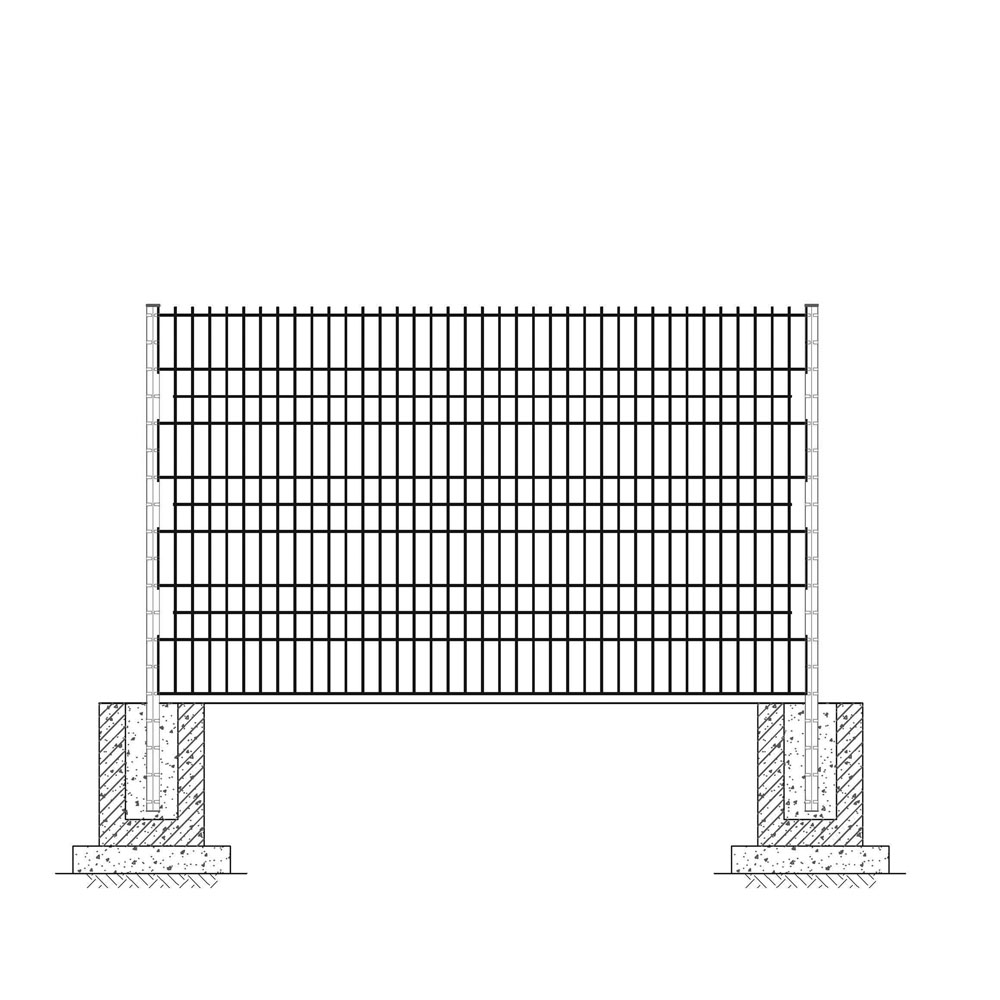

DOVE Panel Series Specifications

Wire (mm)	Mesh (mm)	Width of Panel (mm)	Height of Panel (mm)	Post Section Size (mm)	Distance between posts (mm)		Post Height (mm)
Wire (mm)	Mesh (mm)	Width of Panel (mm)	Height of Panel (mm)	Post Section Size (mm)	Width of Panel 2475	Width of Panel 2970	Post Height (mm)
4/4	55x200 / 55x100	2475 / 2970	1420	80x49.5x1.1	2515	3010	1870
			1620				2070
			1820				2270
			2020				2470
			2220				2670
			2420				2870
1. Other mesh sizes available: 50x100/50x200 and 65x100/65x200.
2. Panel width refers to the center distance between side wires.
3. Height of the wire refers to the height of the vertical length.

Packaging & Shipping

Pallet Packing

Ensures safer transportation to the warehouse. Wrapped by stretch film to prevent scratches and bumps.

Accessories

Clips and screws are packed in sets using plastic film and carton boxes for organized delivery.

Frequently Asked Questions

Q: What makes the 3D fence system more stable than standard fences?

A: The 3D fence features a symmetrical scissors streamline design and dovetail structure which effectively reduces wind resistance and enhances overall stability.

Q: Does the 3D fence system rust easily?

A: No. We use high-standard galvanized steel combined with advanced Nano-ceramics and electrostatic powder spraying technology, providing a 10-year anti-corrosion guarantee.

Q: Can I customize the color of my fence?

A: Yes, we offer various colors including RAL 6005 (green) and RAL 7016 (anthracite grey) to match your specific aesthetic requirements.

Q: Is the installation process complicated?

A: The system is designed for easy installation without the need for complex spare parts, which also helps in preventing rust at joint points.

Q: How are the fence panels and accessories shipped?

A: Panels are shipped on pallets wrapped in stretch film for protection. Accessories like clips and screws are securely packed in carton boxes.

Q: What are the typical applications for this fencing?

A: It is widely used for securing and beautifying parks, private gardens, residential living areas, and commercial properties.
