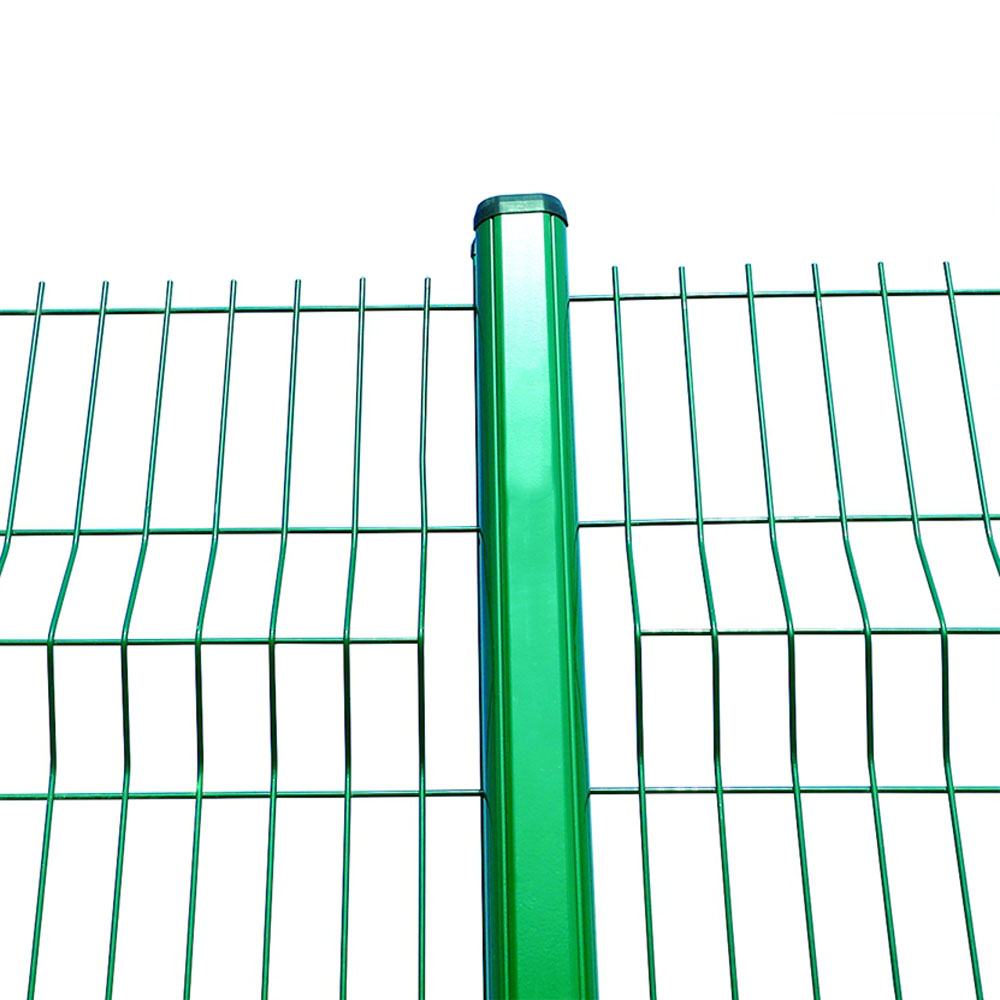

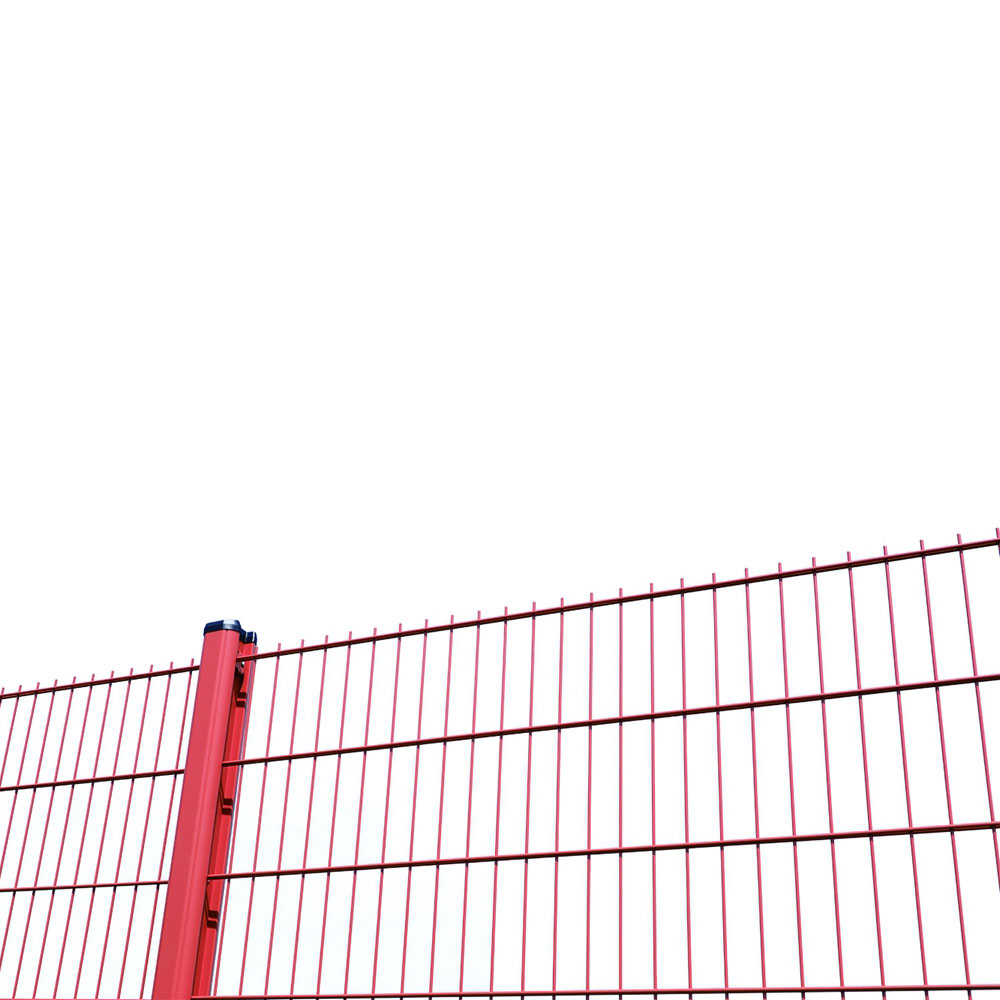

Doric-Panel Series

The unique and nested system design of the post structure has high strength;

Product Description

Dori-Single wire panel

  • Post can be installed with single wire panel, double wire panel, small mesh panel and chain-link fence;
  • Adopt international advanced Nano-ceramics and electrostatic powder spraying technology;
  • Provide a professional 20 years guarantee of anti-corrosion;
  • Extension arm, concertina, barbed wire are optional…

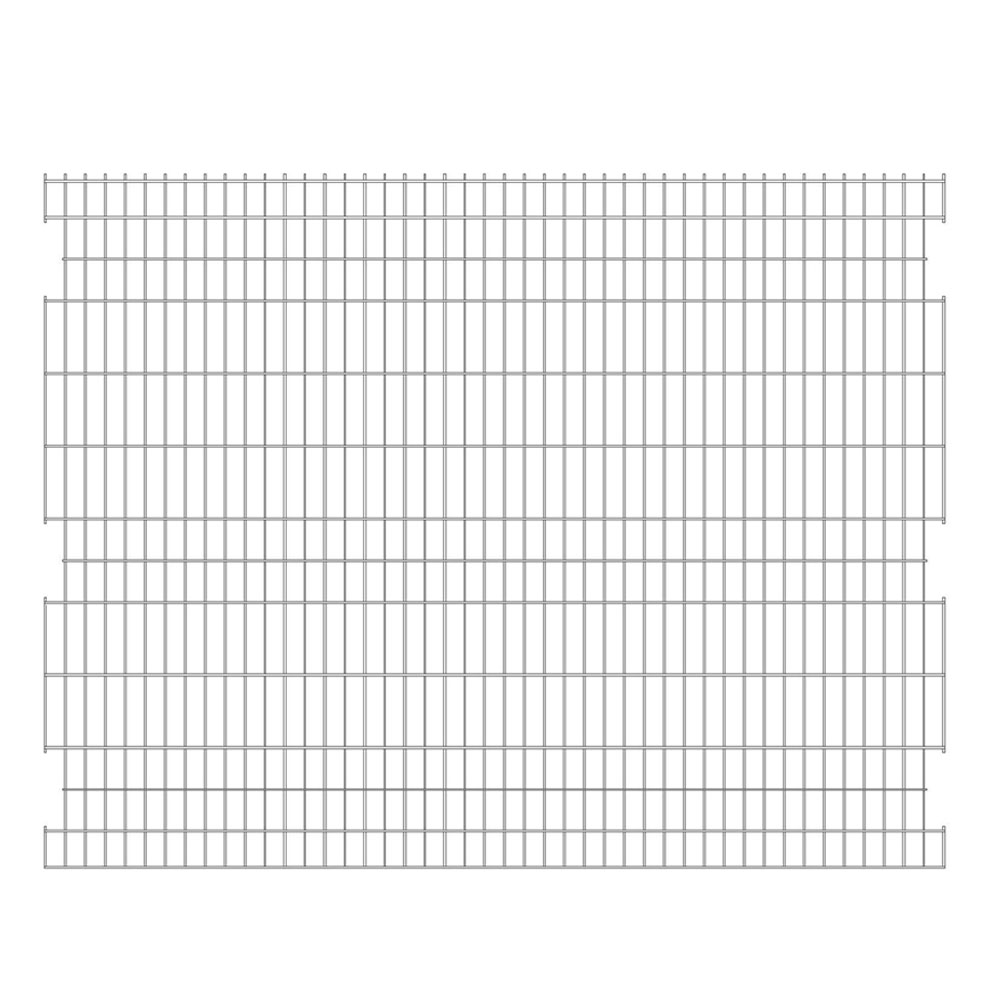

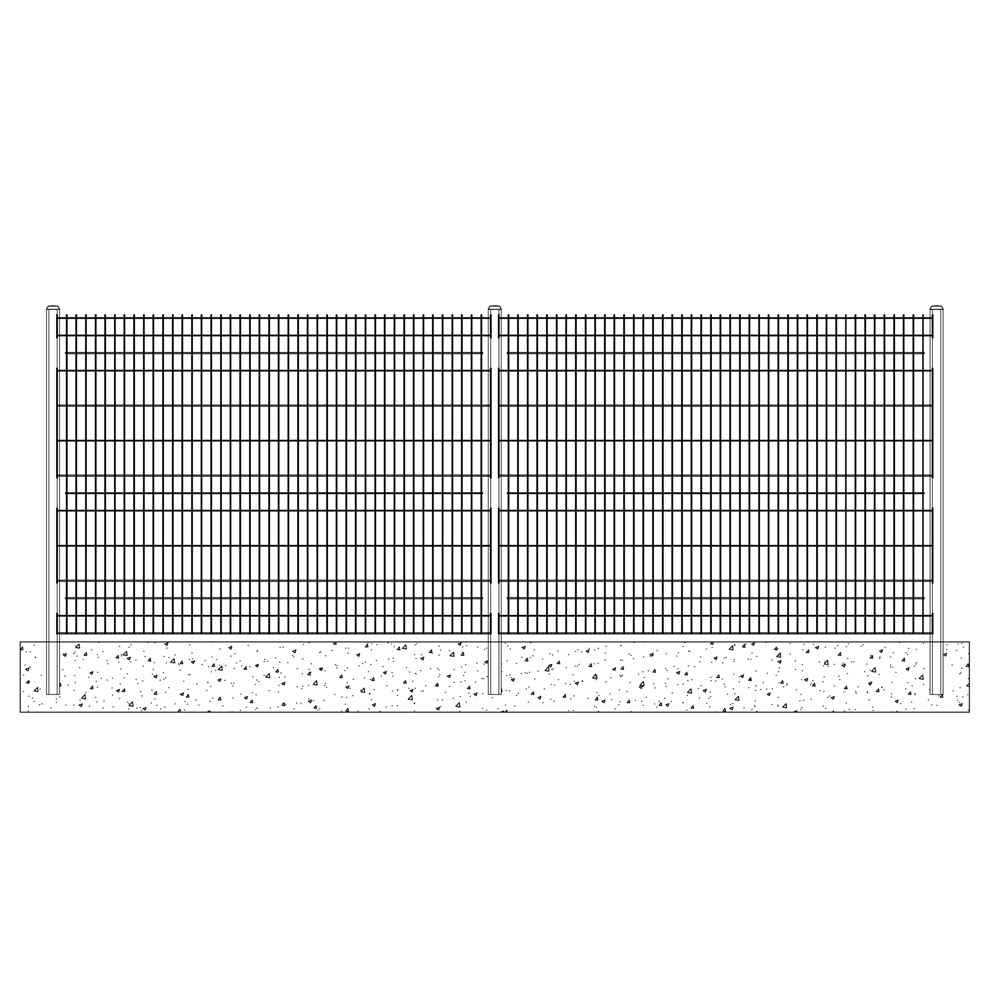

Dori-Double wire panel

  • Double wire design let the fence has more strong shearing resistance function;
  • Double wire design let the fence has better anti-climbing function;

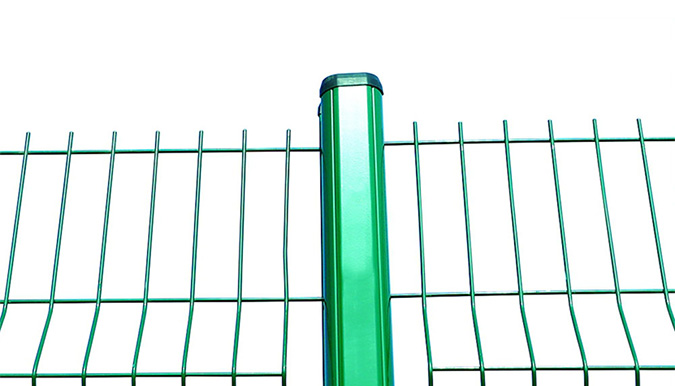

Dori-Double wire panel 1
Dori-Double wire panel 2

Dori-Small mesh panel

  • A rectangular hole in a small size, without any anchoring point or free-climbing place, effectively limits the entry of outer objects;
  • Excellent anti shearing and anti climbing performance, make the product has highest security level;
Features:
Easy Installation
Cost effective
Durable
High strength
Custom RAL Colors (6005, 7016, etc)
Multiple Post Options
Applications:

Parks, gardens, living area, etc.

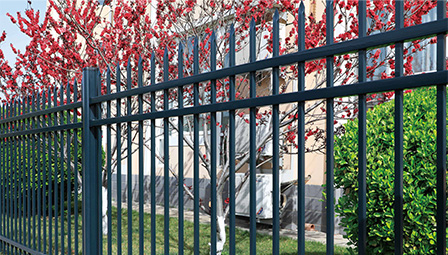

Application 1

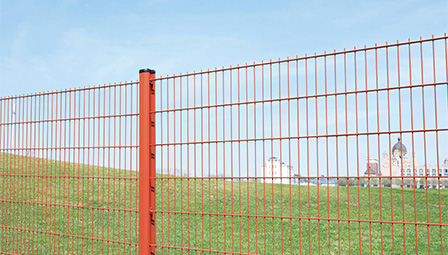

Application 2

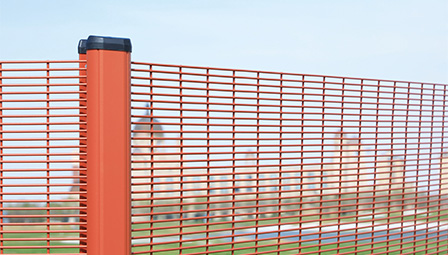

Application 3

Product Parameter Table

Size varies from different requirements and Extension arm, concertina, barbed wire are optional….

Doric-Single wire panel
Wire(mm) Mesh(mm) Width(mm) Height(mm) Post Size(mm) Post Distance(2475) Post Distance(2970) Post Height(mm)
4/4 or 5/5 55x200 / 55x100 2475/2970 1420 100x75x2.5 2519/2520 3014/3015 1900
1820100x75x2.52519/25203014/30152300
2420100x75x2.52519/25203014/30153000
4020100x75x2.52519/25203014/30154700
Doric-Double wire panel
Wire(mm) Mesh(mm) Width(mm) Height(mm) Post Size(mm) Distance(mm) Post Height(mm)
6+5+6 50x200 2500 1420 100x75x2.5 2545 1900
2020100x75x2.525452500
4020100x75x3.025454700

Packaging & Shipping

  • Pallet packing: Ensures safe and reliable transportation to the warehouse.
  • Protection: Entire pallet wrapped by stretch film to prevent bumping and scratching.
  • Accessories: Clips and screws are packed by sets in plastic film + carton boxes.

Frequently Asked Questions

How long is the anti-corrosion guarantee for the fencing?
We provide a professional 20-year guarantee of anti-corrosion, thanks to our advanced Nano-ceramics and electrostatic powder spraying technology.
Are different colors available for the wire panels?
Yes, we can provide different colors according to special requirements, including standard RAL 6005 (Green) and RAL 7016 (Anthracite Grey).
What security options can be added to the fence?
Optional security features include extension arms, concertina wire, and barbed wire to enhance protection.
Why choose the Double Wire Panel design?
The double wire design provides significantly stronger shearing resistance and superior anti-climbing performance for higher security needs.
How are the accessories like clips and screws delivered?
All accessories are packed in complete sets using plastic film and sturdy carton boxes to ensure no parts are lost during shipping.
What makes the small mesh panel effective against climbing?
The small size of the rectangular holes eliminates anchoring points or free-climbing places, making it nearly impossible to climb or cut through.
