Machine

Barbed Wire Machine

Send Inquiry

Product Description

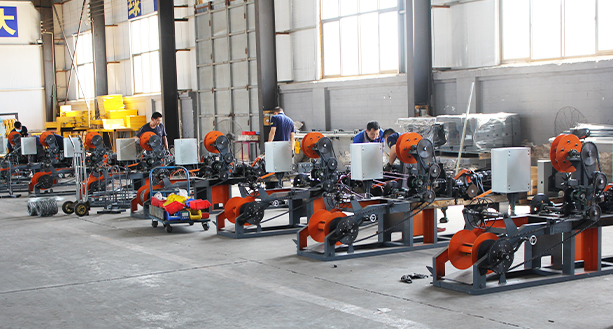

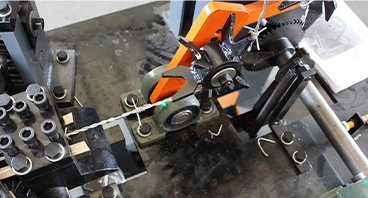

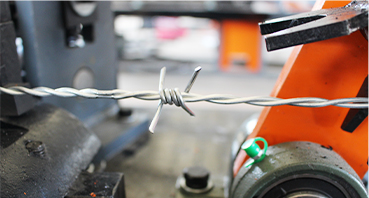

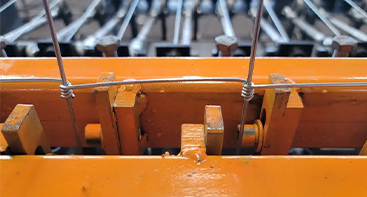

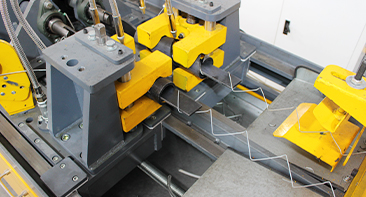

Barbed Wire Machine

Barbed wire will be twined on the main wire by the machine, and the product will be finished through a variety of weaving process. The product is used on the pasture boundary, railway and express way to play the role of isolation and protection.

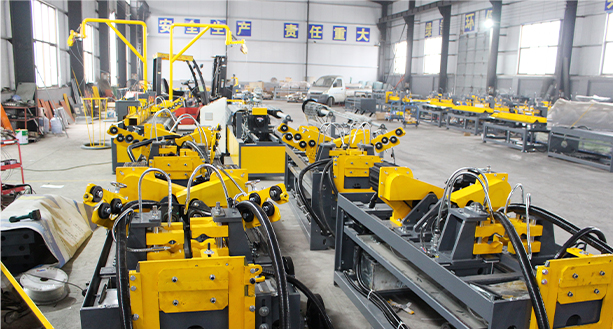

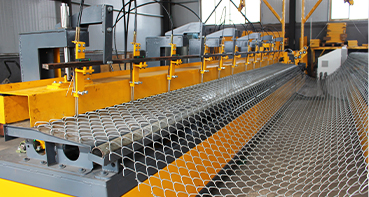

Chain Link Fence Machine

Chain link fence machine is an equipment that weaving low carbon steel wire, stainless steel wire, aluminum alloy wire, PVC wire and plastic-covered wire into chain link fence. The finished fence has various features, such as even mesh aperture, smooth surface and aesthetic appearance. Fence size and wire diameter are all adjustable, corrosion resistance, concise weaving, nice-looking and utilitarian are also its advantages.

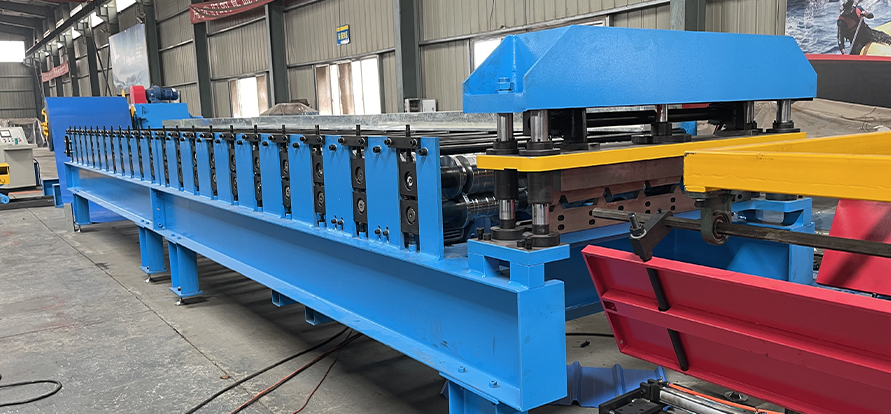

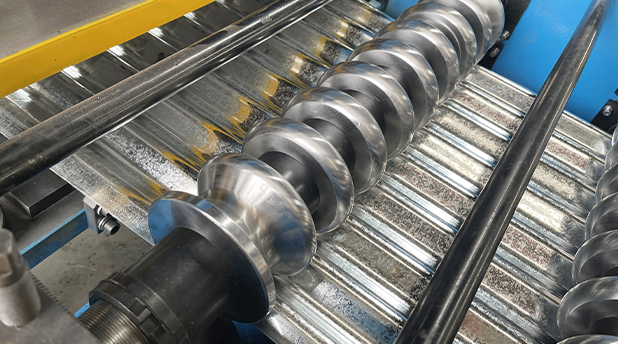

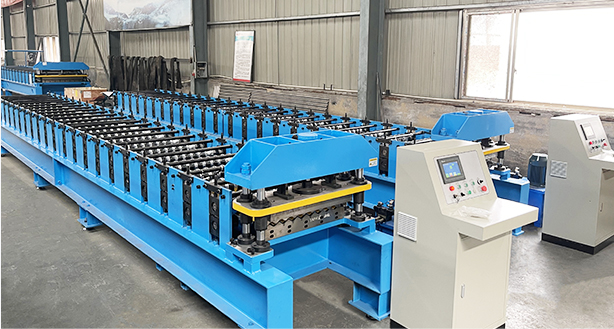

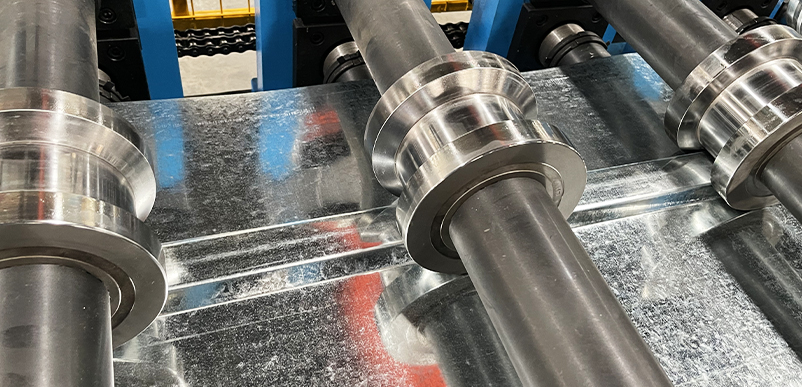

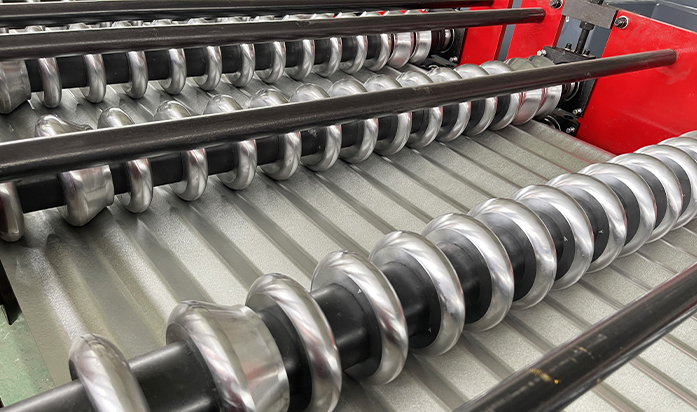

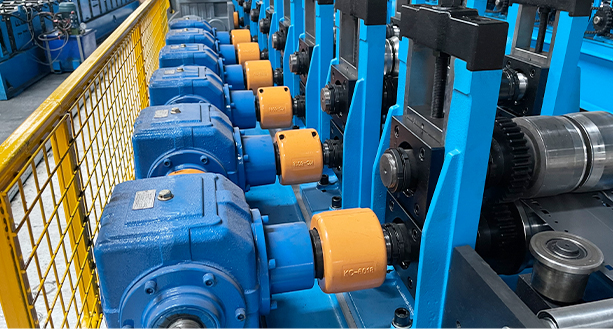

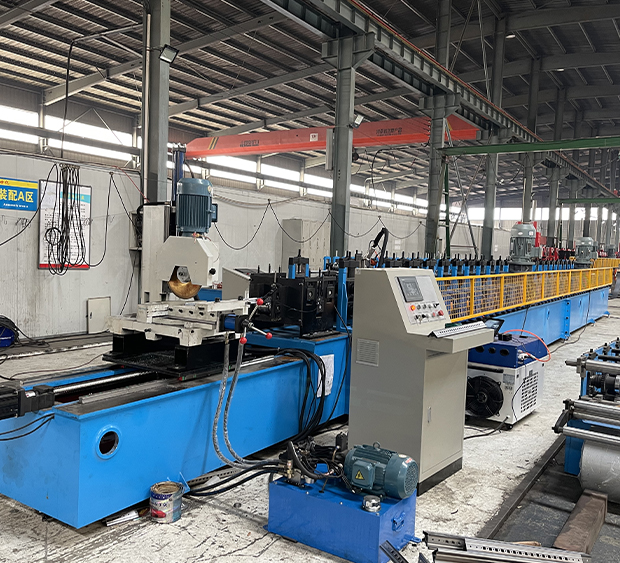

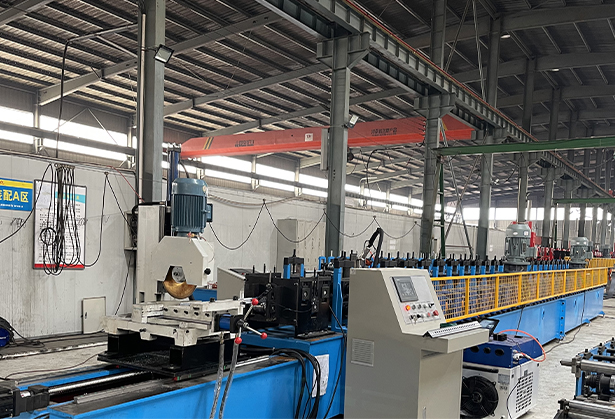

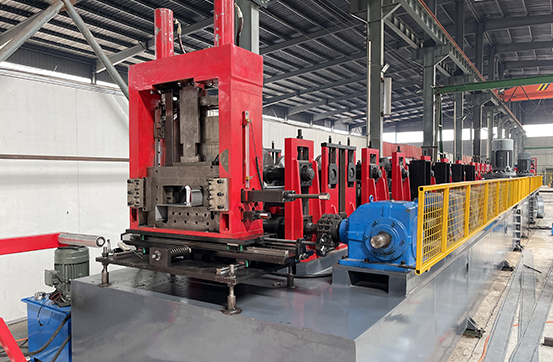

Cold Roll Forming Machine

1. HYDRAULIC UNCOILER

Motor power: 5.5KW
Frequency modulator: 5.5KW
Bearing weight: 5T
Voltage tighting: 3 blades, blade length: 550mm

2. SERVO LOADING MACHINE

Motor power: 1.5KW
3 stations punching
Oil pump motor power: 5.5KW, the energy storage tank can provide strong explosive power and fast punching speed
Cold air structure can help cooling the machine
Tank capacity: 1L
Electric cabinet: PLC screen control

3. EQUIPMENT SPECIFICATIONS

High precision product, machine roll
Rack：110 type, Gearbox driven 26 rows
Motor power: double 22KW
Laser welder: 1500ANW
3.8kw servo tracking oil pressure flying saw cutting
Sheet thickness：1.5mm
Length of host machine: 18M (Whole line: 30M)
Weight: 12T
Hydraumatic power: 3KW motor for burr-free cutting
Advantages: excellent rolls material, host machine rack structure, gearbox driven by Double 22KW, laser welding

CORE PARAMETERS

Adopting 125*100 square tube
Motor power: 11KW
26 rows 110 type rack
Sheet size: 1.5*115*120mm
Machine dimension: 24*1.5*1.6m
Weight: 16T
Chains drive each other
Working efficiency: 8-10m/minute

PHOTOVOLTAIC SUPPORT MOLDING EQUIPMENT

Sheet thickness: 0.6-0.8mm
Motor power: double 11kw
Type Changing: 762.6/572.7, manual type changing hauff drivepipe
Dimension: 23x1.5x1m
Working efficiency: 20-25m/minute
Weight: 20T, Contains 42 racks
Advantages: host machine adopts double 11kw motor for sufficient power and high productivity
Parts of transmission equipment are electric controlled for high precision and fast switching speed

CUSTOMIZE TYPE SPECIFICATIONS

Width range: 80-300cm | Height: 40-80cm
Sheet thickness: 5mm
Working efficiency: 20-25m/minute
Dimension: 35-40m (Host machine: 24m) | Weight: 30T
Feature: 125 Racks, Stable Speed, intergearing

NORMAL SPECIFICATION

Width：100-350cm | Height：50-100cm
Speed：15-20m/minute | Sheet thickness: 2-2.5
Length: 13-14m | Weight: 15t

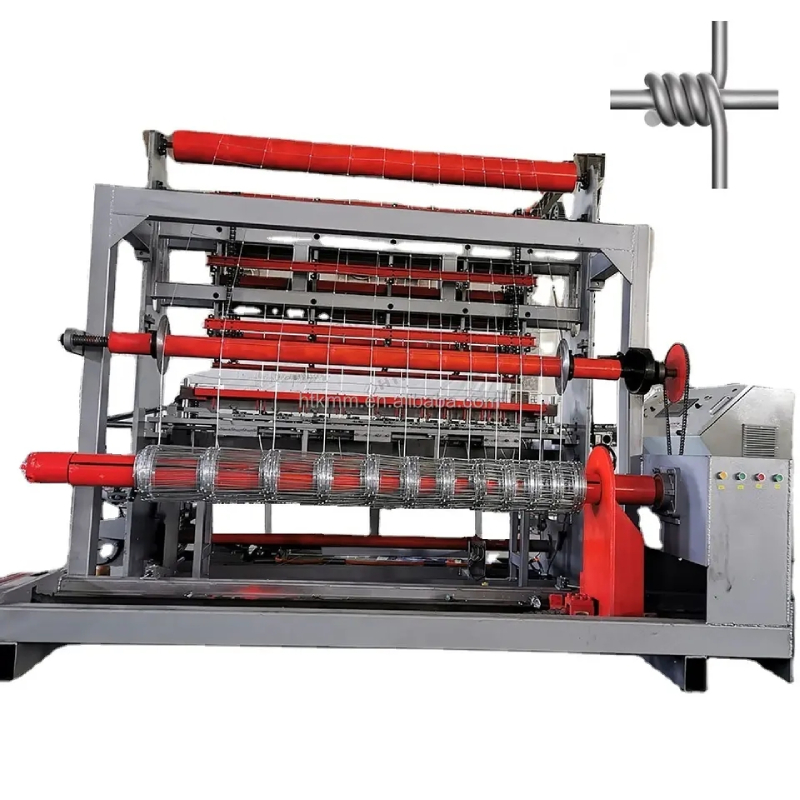

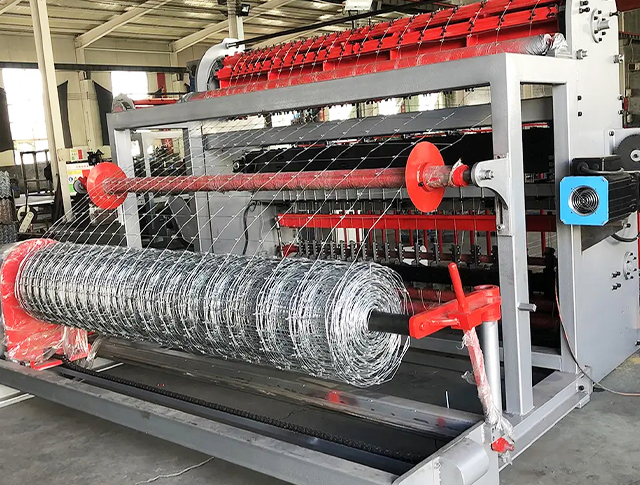

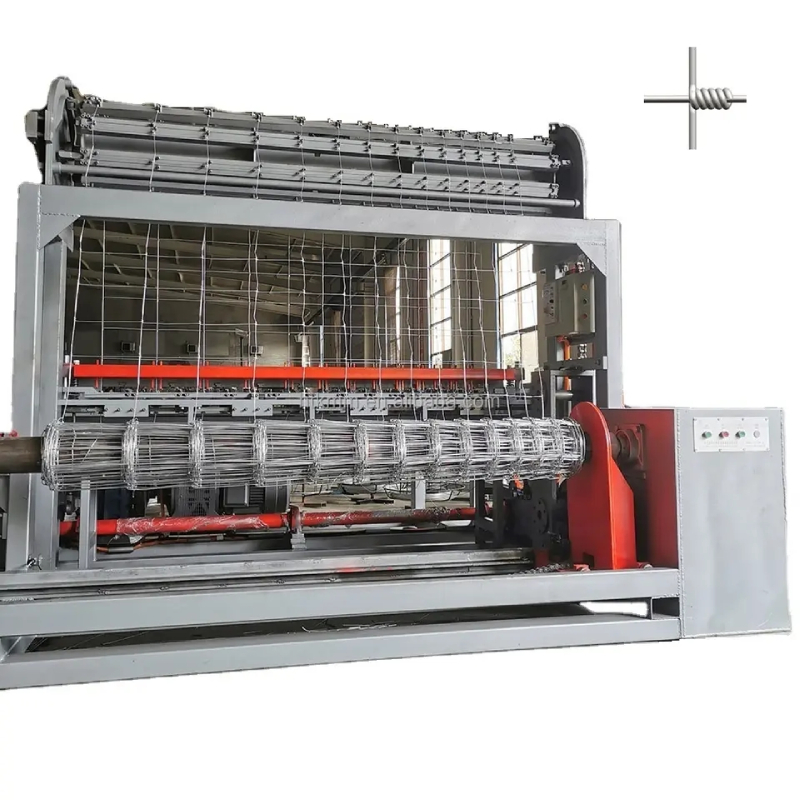

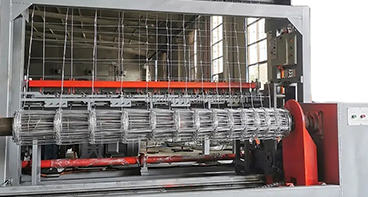

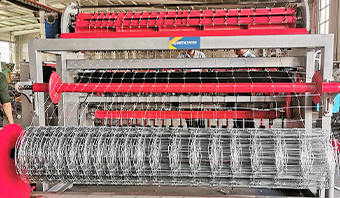

Deer Fence Machine

This machine adopts sophisticated computer control and advanced production technology to weave deer fence widely used for ecological protection and livestock. It can weave the weft and warp wire together automatically, offering high efficiency, simple operation, and low maintenance.

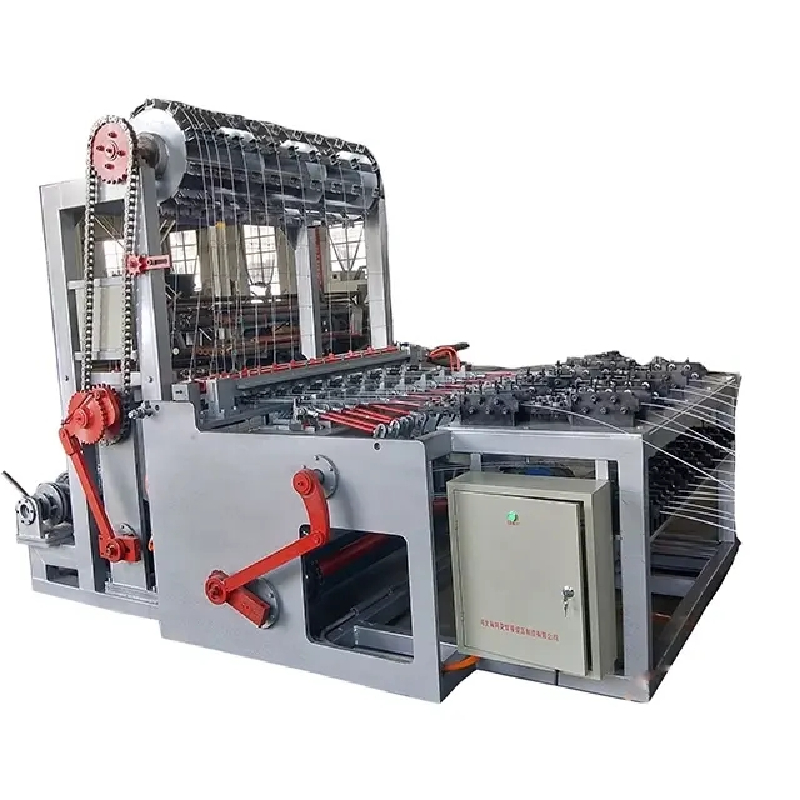

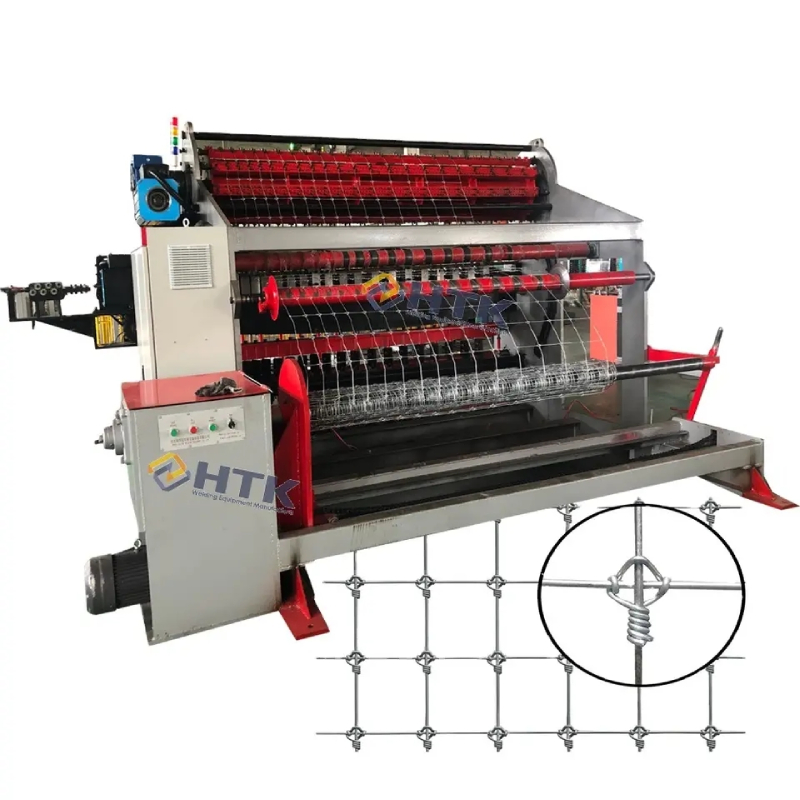

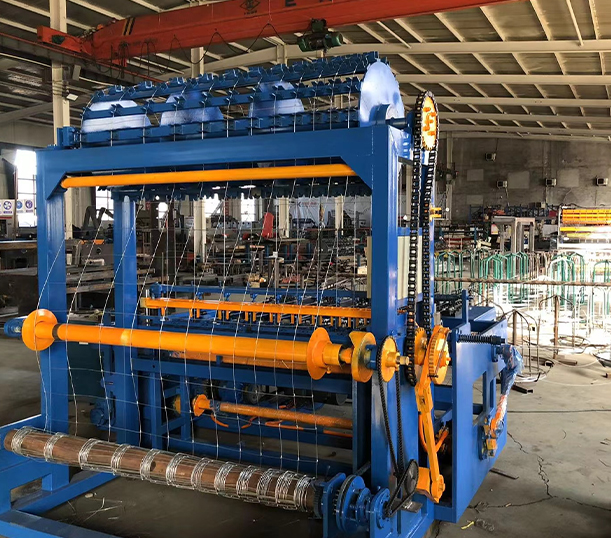

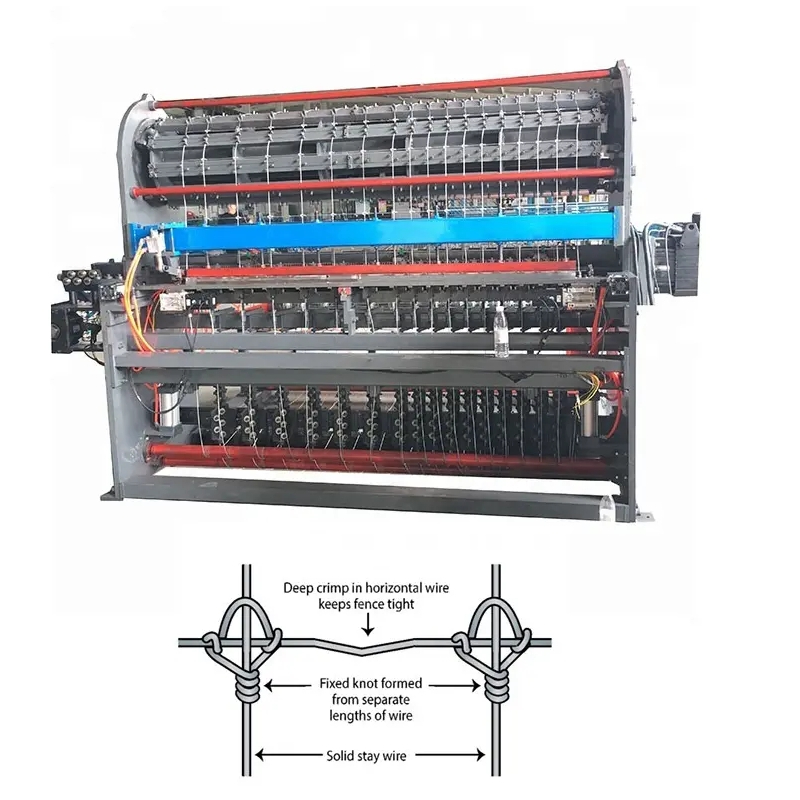

Field Fence Machine

Also called cattle fence machine or grassland fence machine. It adopts sophisticated computer control to automatically weave field fences. Features include reliable performance, high efficiency, and low-cost maintenance. The finished products enjoy innovative structure, firm and precise weaving.

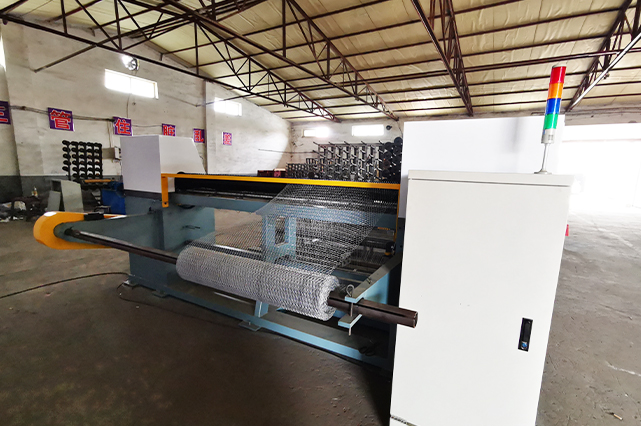

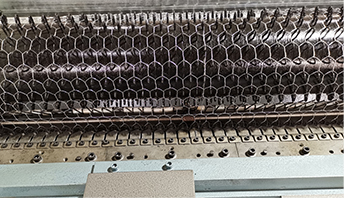

Hexagonal Wire Netting Machine

Also named chicken mesh machine, special equipment to produce hexagonal wire netting mesh. Features reasonable design, stable operation, and convenient repair. Types include PLC Control Straight and Reverse. Widely used in fences of farmland, grazing land, and building walls.
