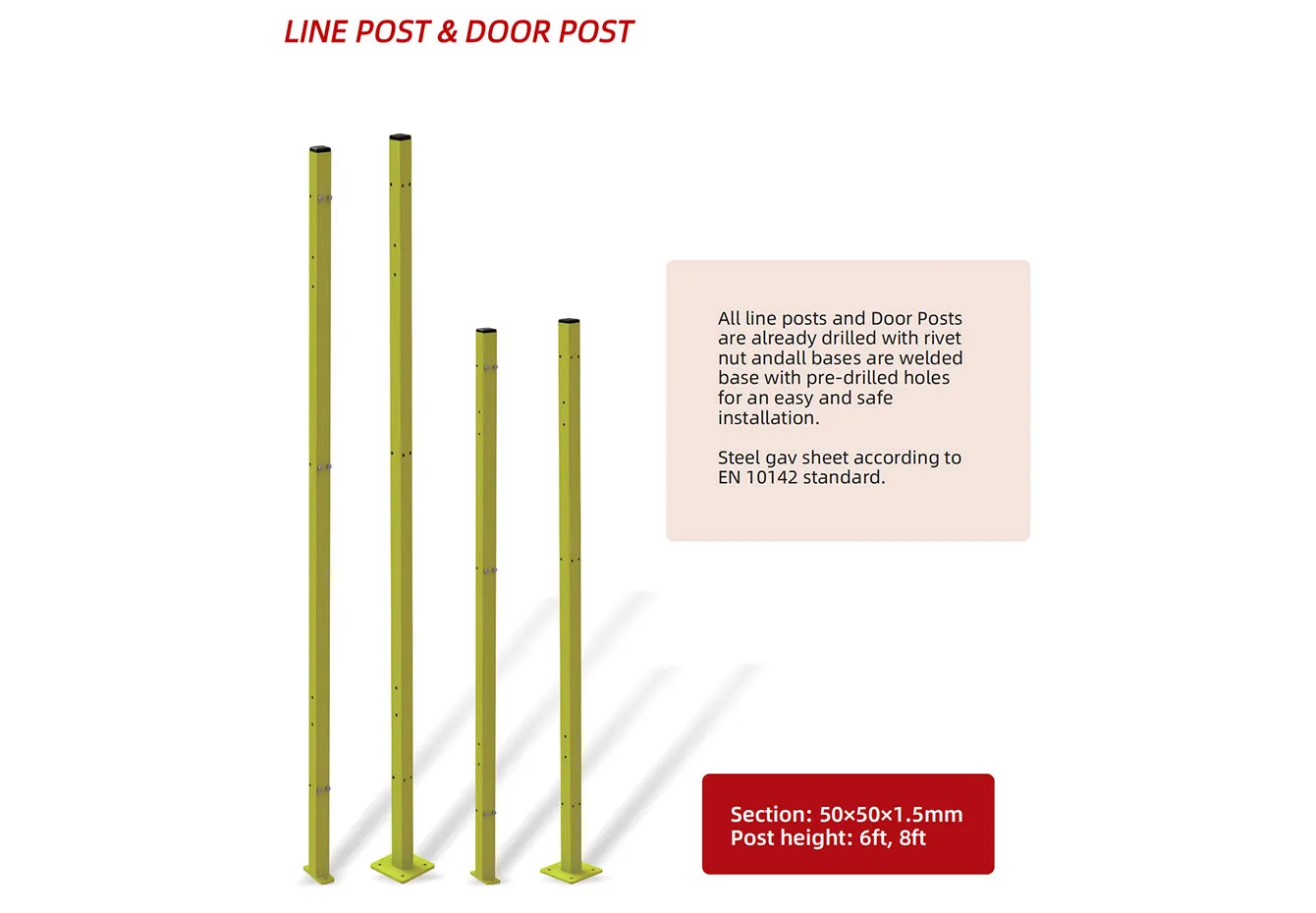

• All line posts and door posts are already drilled with rivet nuts and all bases are welded bases with pre-drilled holes for an easy and safe installation.
• Steel GAV sheet according to EN 10142 standard.

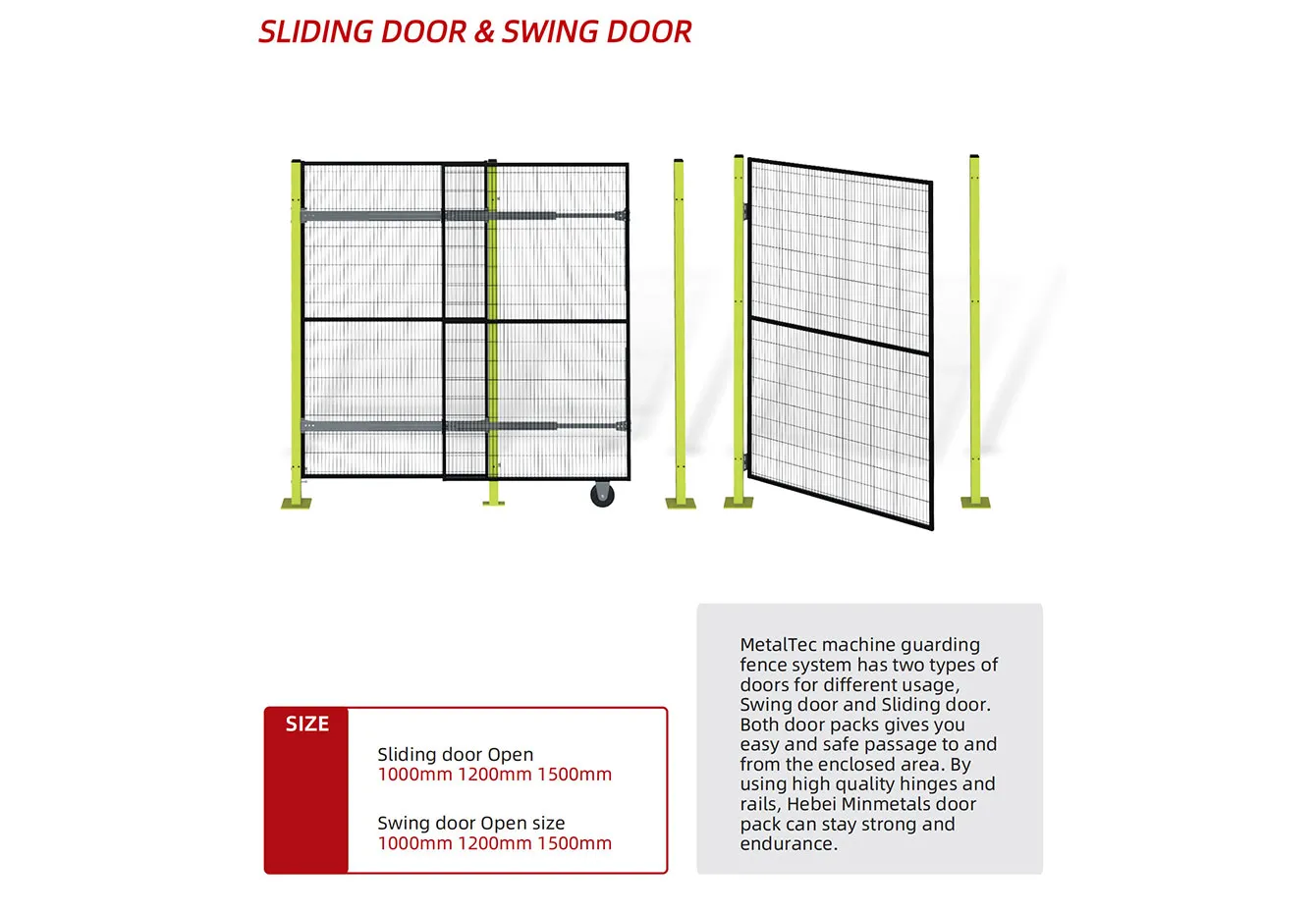

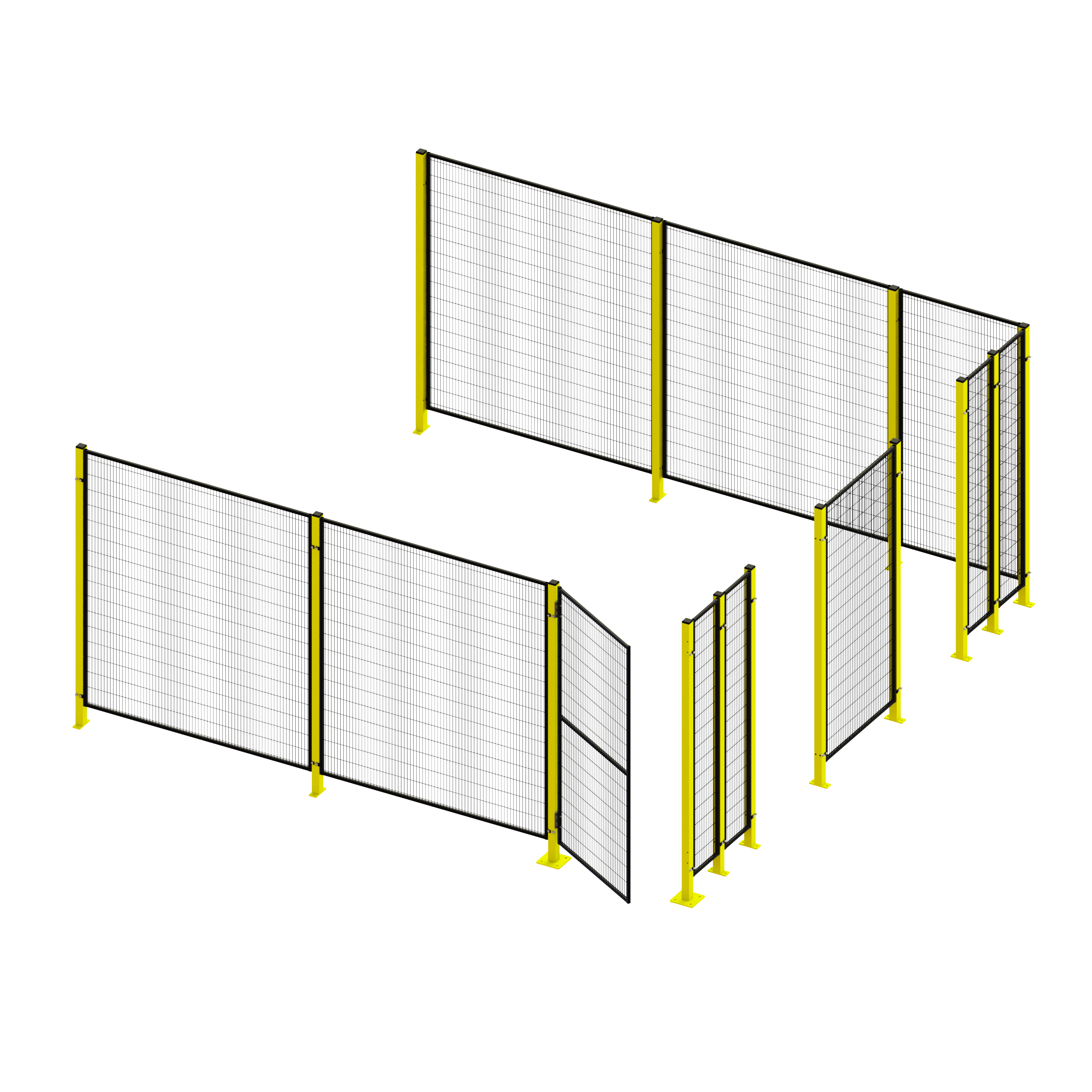

• Machine guarding fence system has two types of doors for different usage, a swing door and a sliding door.
• Both door packs give you easy and safe passage to and from the enclosed area.
• By using high-quality hinges and rails, the door pack can stay strong and endure.
• The framed panels and posts have been tested according to the recommendations on the impact tests described in ISO 14120:2015 annex C with the impact energies 1600J.

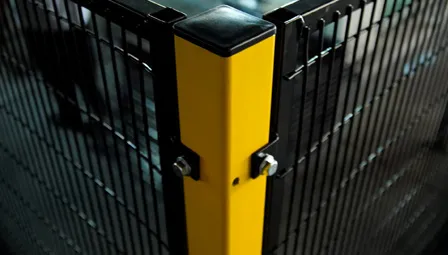

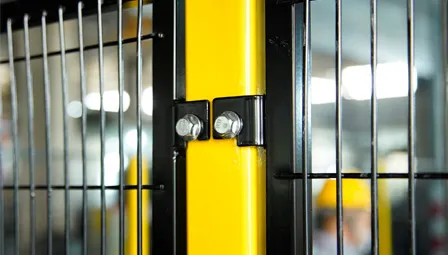

• The posts and panels can be connected using either U-shaped hooks or clamps. U-shaped hooks make assembly easier, while clamps enhance the versatility of the connection between the panels and posts.

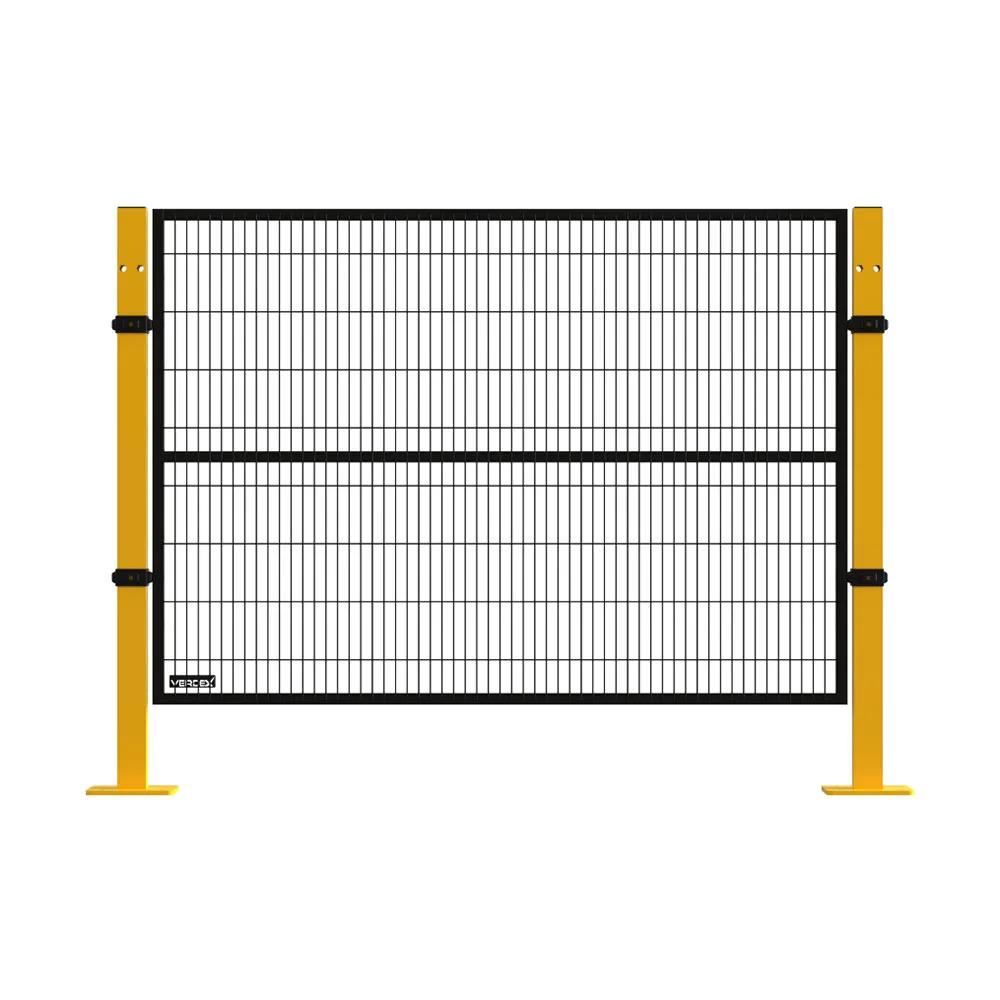

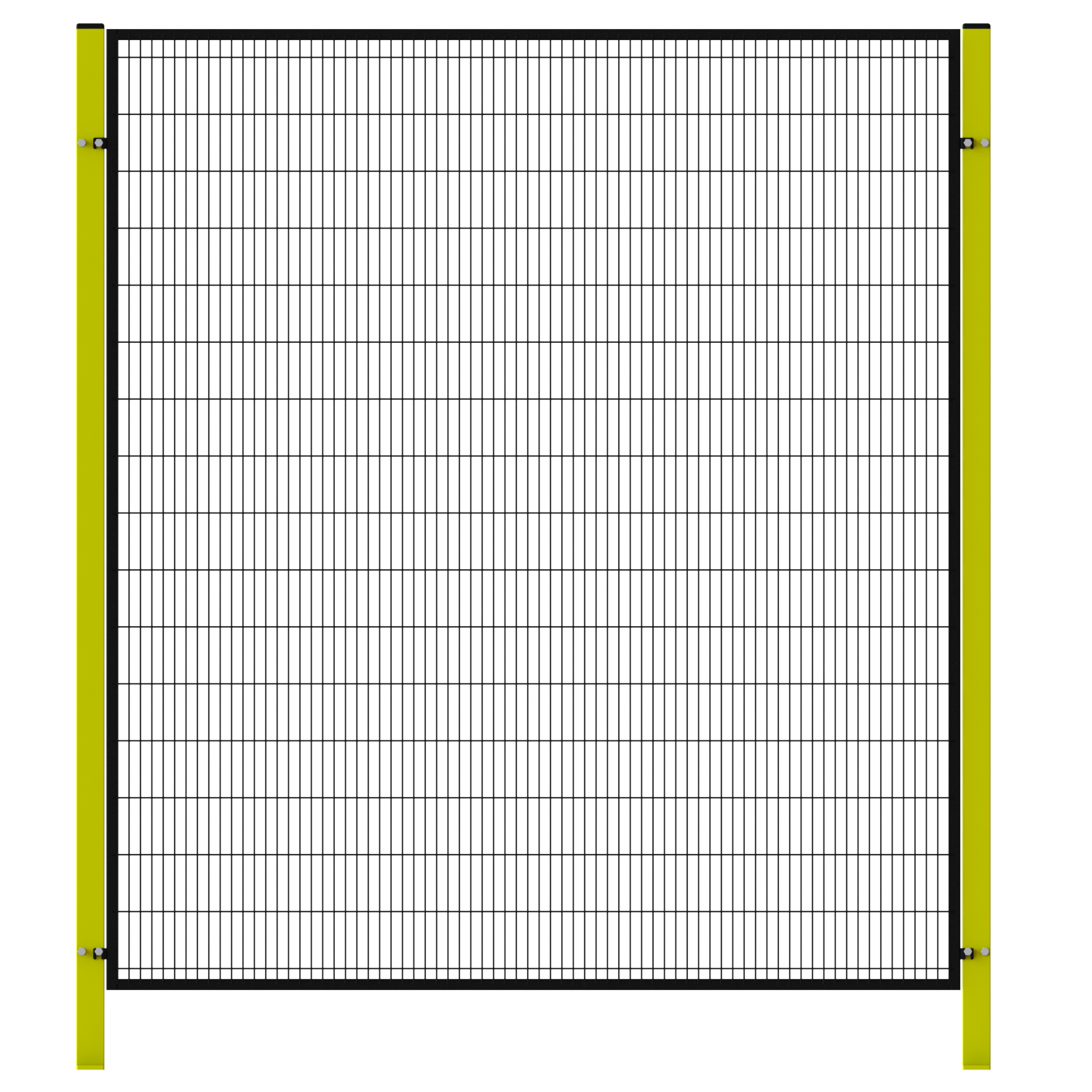

Customizable Framed Machine Guard Panel Systems

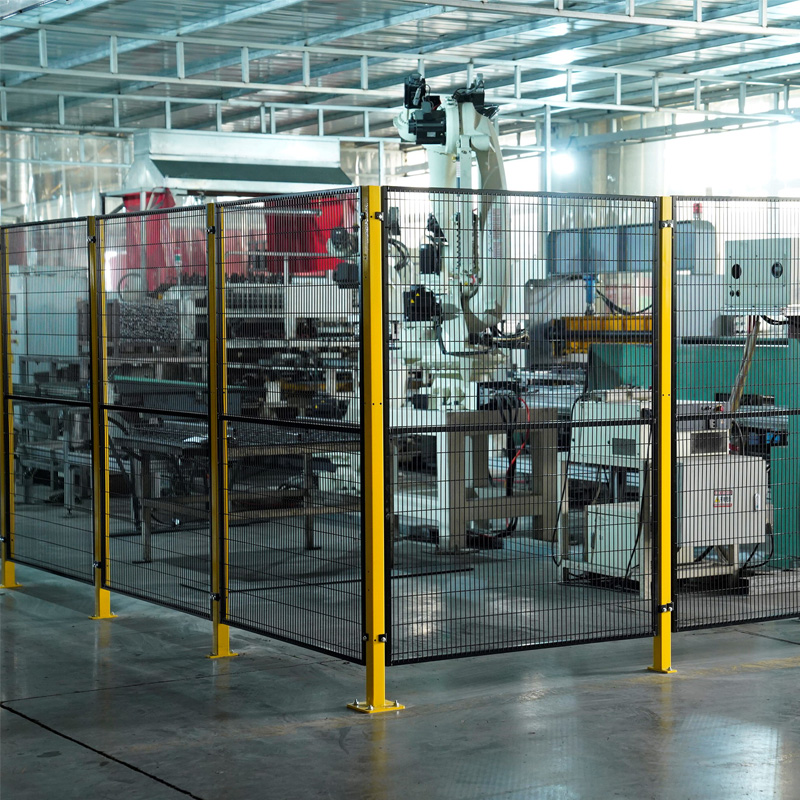

Engineered for versatility, our systems allow seamless customization to fit CNC machines, robotic arms, conveyor belts, and other industrial equipment. Unlike fixed barriers, framed panels offer easy reconfiguration as your layout evolves, minimizing downtime. Choose between heavy-duty steel for high-impact zones or lightweight polycarbonate for visibility and corrosion resistance—all while maintaining optimal airflow and accessibility for maintenance.

Key Benefits:
• Enhanced Safety: Eliminate exposure to moving parts, sparks, and debris.
• Cost Efficiency: Modular designs adapt to changes without full replacements.
• Compliance: Pre-installed mounting points simplify adherence to regulatory audits.

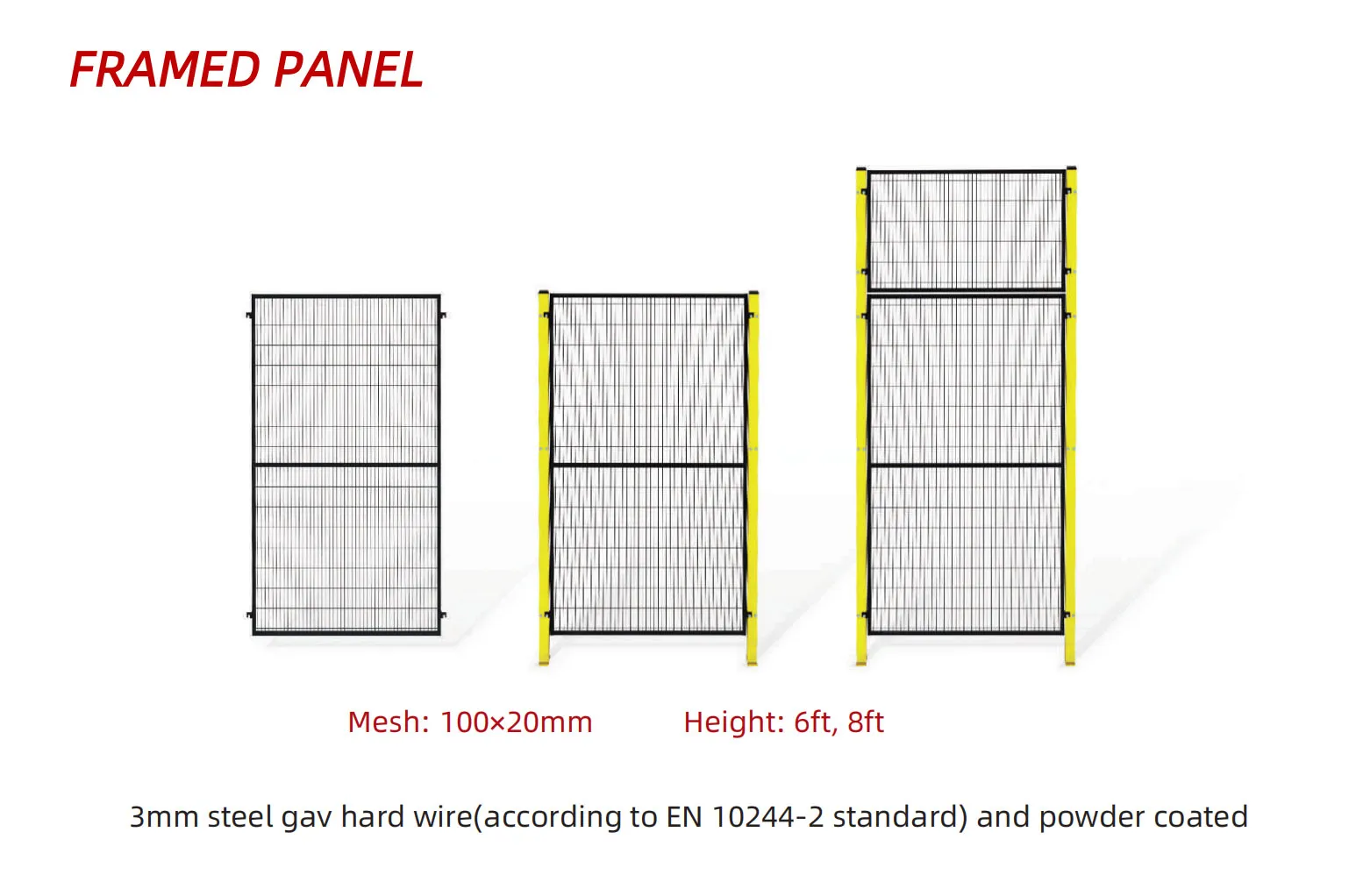

Industrial Grade Durability & Visibility

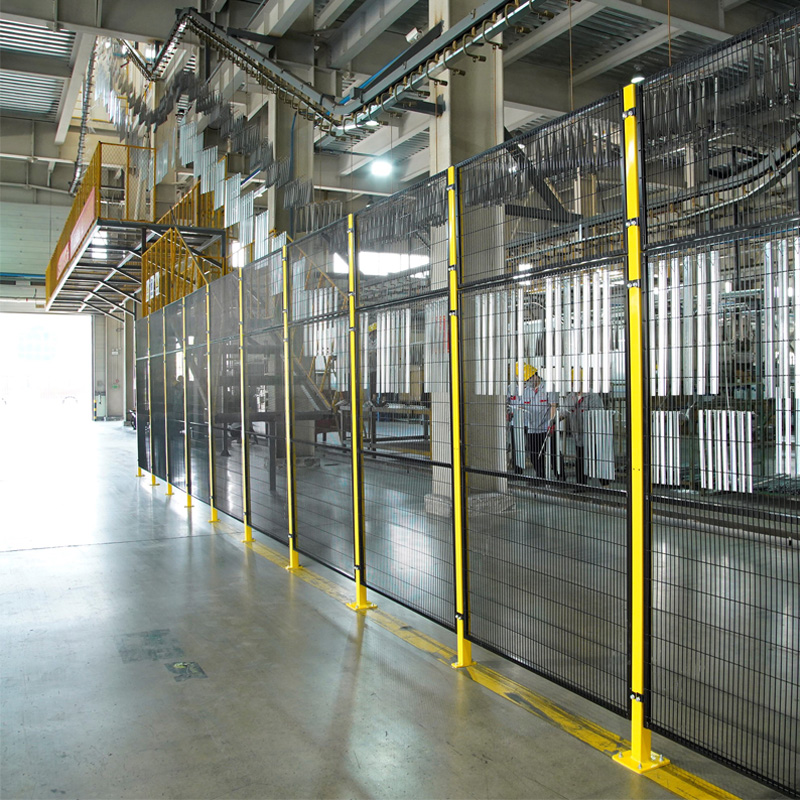

Each panel is made of high-strength steel and powder-coated in RAL9005 black, delivering excellent corrosion resistance and visibility. What sets these framed machine guard panels apart is their tested impact resistance up to 1600J, in compliance with ISO 14120:2015. The vertical wire design discourages climbing and allows clear views of machinery operation, helping improve workplace awareness and efficiency.

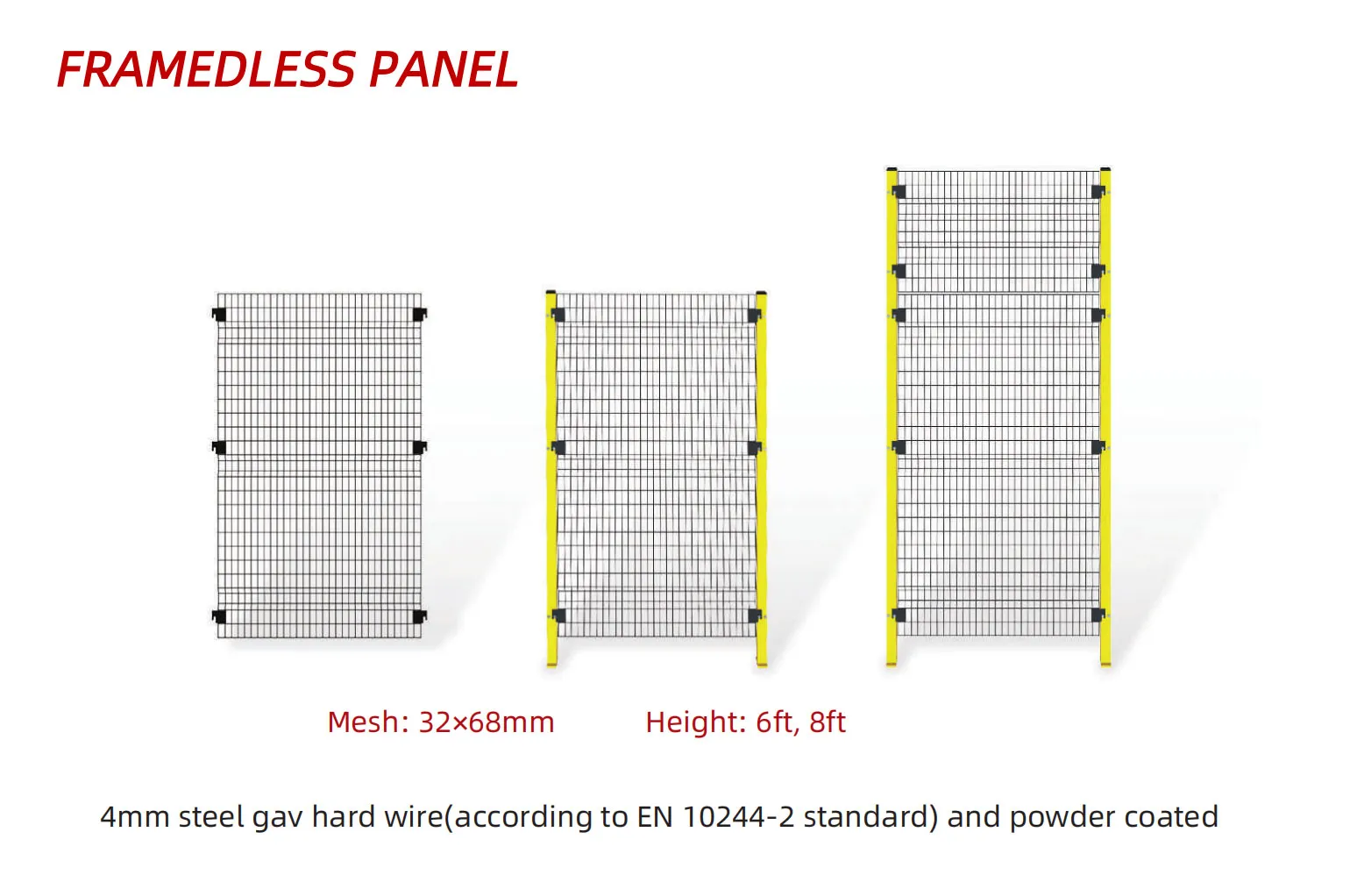

Framed vs. Frameless Machine Guarding

Framed panels provide structural rigidity ideal for high-impact environments and long-term value through robust construction. In contrast, frameless panels offer a budget-friendly, lightweight alternative for dynamic or temporary setups. Both systems ensure adherence to safety regulations while meeting specific facility space constraints.
