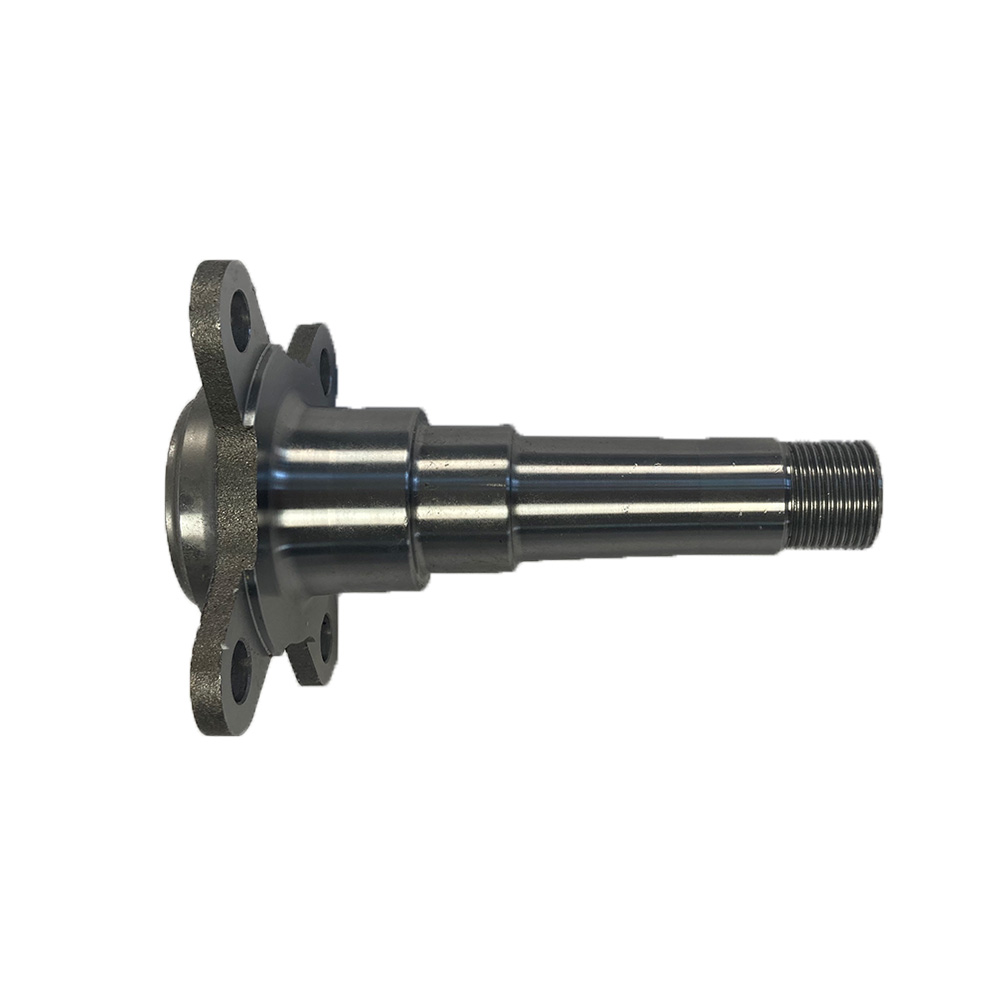

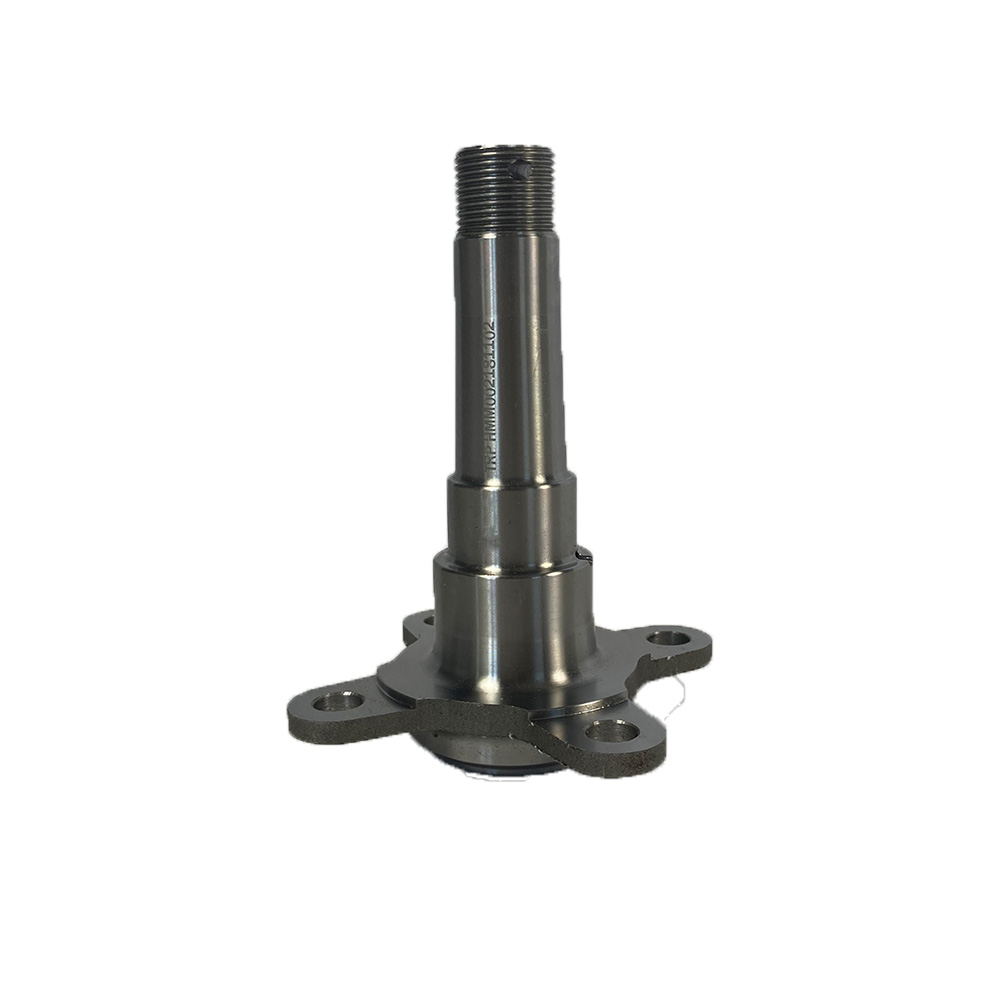

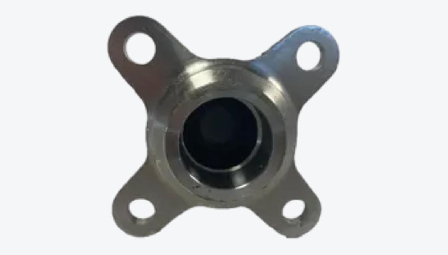

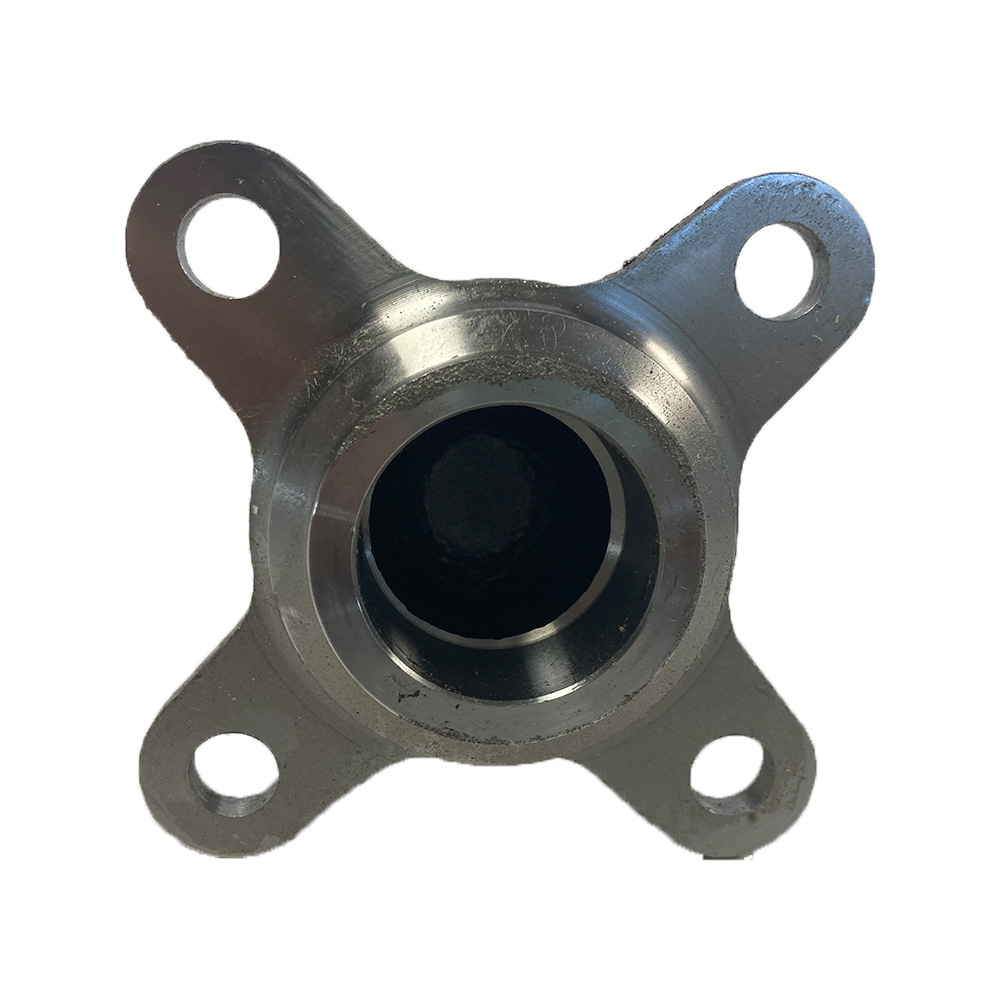

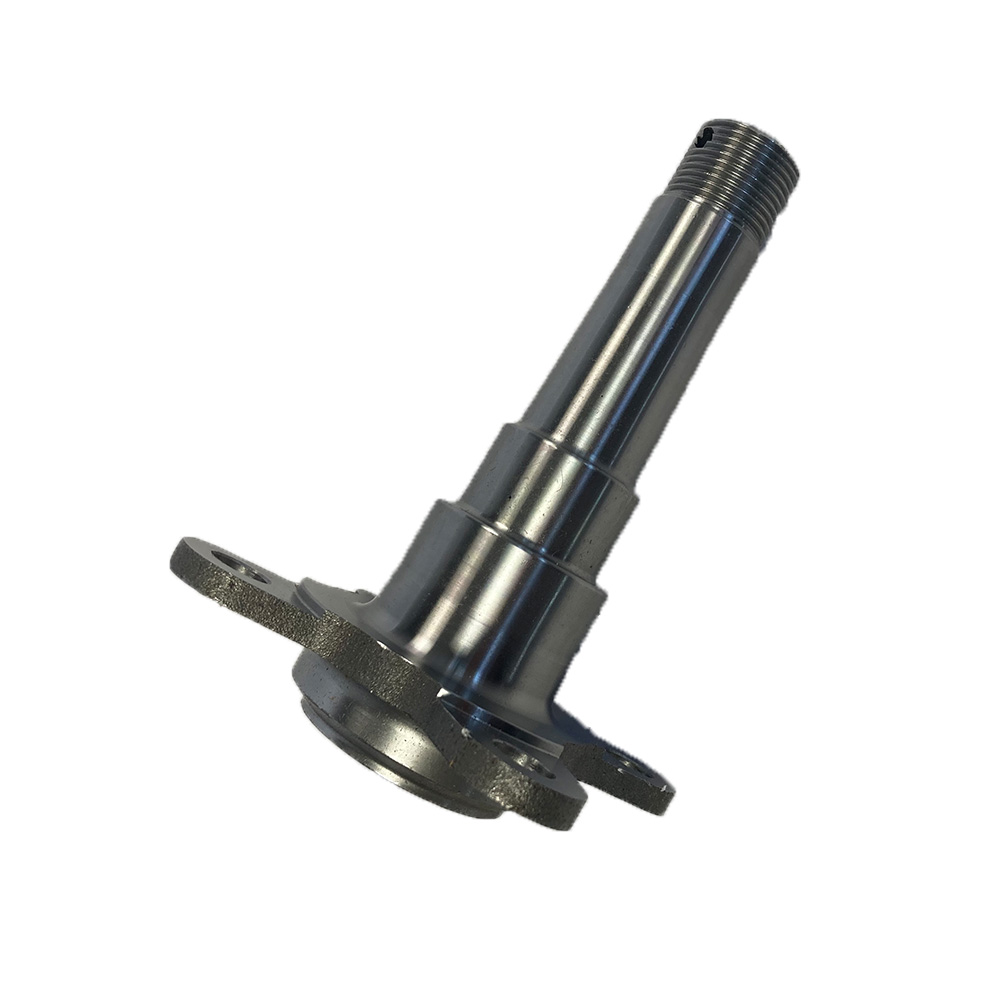

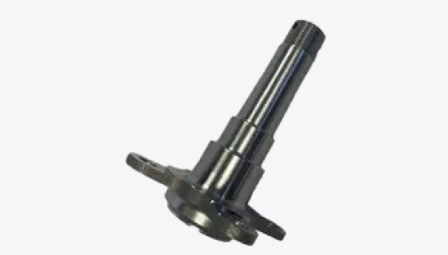

Suitable for almost all brands of axles like Dexter, Rockwell American, and Lippert.
Axle capacity equals 2 times of spindle’s rating capacity.
Can also be used when building a custom axle.
High tensile strength steel and precisely machined for durability.

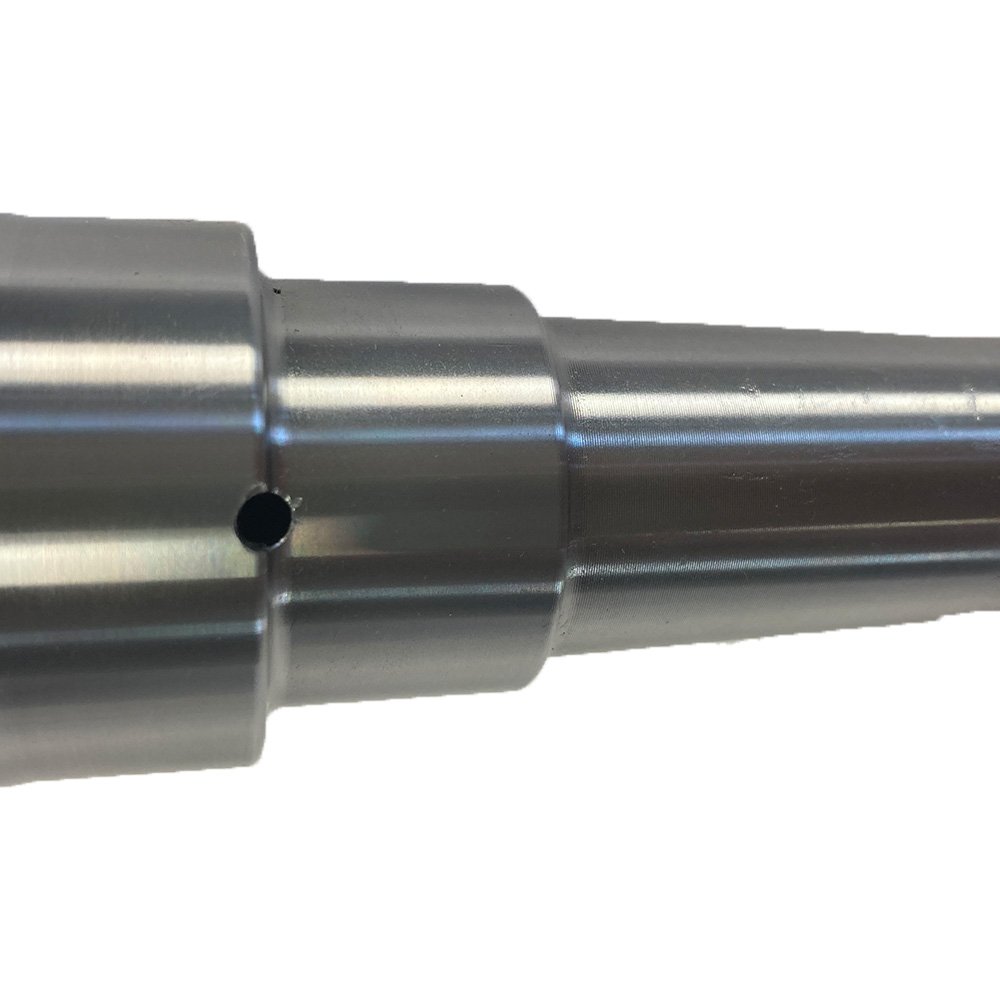

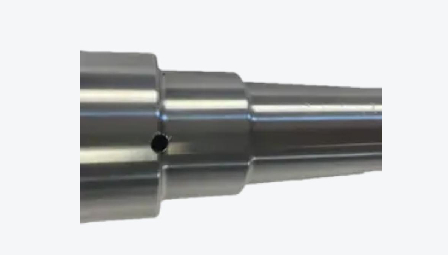

Easy lube design equipped with grease zerk.
Compatible with standard washer, spindle nut, and cotter pin (needed for installation).
Includes a 1-year limited warranty for peace of mind.
| DESCRIPTION | DIMENSIONS | APPLICATION | |||||||||||
| PART NO. | REF NO. | CAPACITY | UNIT WT. | A | B | C | D | E | F | H | I | Axle Tube | Flange |
| SP-HF-IF-84L | SP126288 | 1750LBS | 3.29LBS | 1.95" | 3.00" | 6.35" | 1.72" | 1.376" | 1.062" | 2.45" | 5.36" | 2-3/8" | 4 bolt 10" |
| SP-HF-IF-8455 | SP-HF-IF-8455 | 1750LBS | 3.97LBS | 2.55" | 3.00" | 6.35" | 1.72" | 1.376" | 1.062" | 3.00" | 5.46" | 2-3/8" | 4 bolt 10" |
| SP-HF-IFB-42L-213 | SP-HF-IFB-42L-213 | 3500LBS | 7.31LBS | 2.45" | 3.25" | 8.25" | 2.13" | 1.749" | 1.249" | 3.00" | 7.25" | 3" | 5 bolt 12" |
| SP-HF-IFB-42L-225 | SP124551 | 3500LBS | 7.31LBS | 2.45" | 3.25" | 8.25" | 2.25" | 1.749" | 1.249" | 3.00" | 7.25" | 3" | 5 bolt 12" |
