Couplers

Description

Product Description

Product Description
  • A-frame trailer couplers are specifically designed to mount onto A-frame trailers, where the tongue meets in an "A" shape at the front end.
  • Typically rated higher than straight-tongue models, these couplers are the industry standard for RVs and travel trailers.
  • Features a pin and chain assembly for a superior towing experience that prioritizes safety and convenience.
  • Manufactured to meet the most rigorous quality standards, ensuring unmatched durability and long-term performance.
  • Constructed using premium-grade materials for reliable service under various towing conditions.
⚠️ SAFETY NOTES

Every time the coupler is used, ensure the ball is completely engaged in the socket and the coupler is securely locked. Failure to verify the connection could result in serious or fatal injury.

Key Advantages
  • Easy-Grip Handling: Features a locking handle designed for use even while wearing gloves, complemented by a self-centering locking plate.
  • Smooth Towing: The tight ball fit significantly reduces jarring and vibration on rough roads or during speed changes.
  • Corrosion Resistance: High-quality zinc-plated construction provides a long-lasting, weather-resistant finish.
  • Certified Quality: European E-MARK certification ensures the product meets international safety and quality benchmarks.
  • Quick-Lock System: Trigger latch design allows for rapid locking and unlocking without requiring adjustment wrenches.
  • Versatile Installation: Simple setup that can be either bolted or welded directly to the trailer tongue.
Technical Parameters

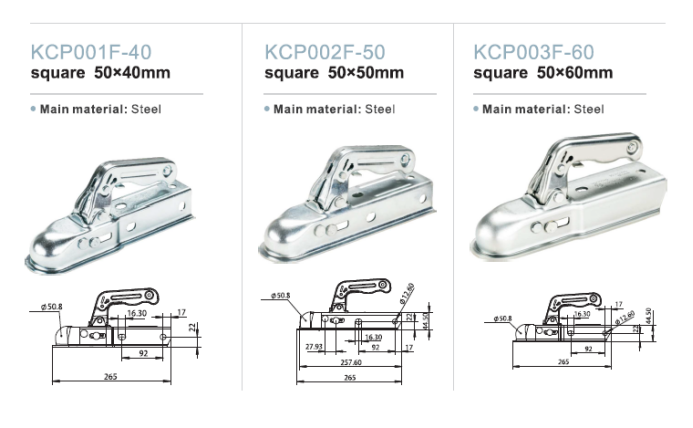

Trailer Coupler Parameter 1

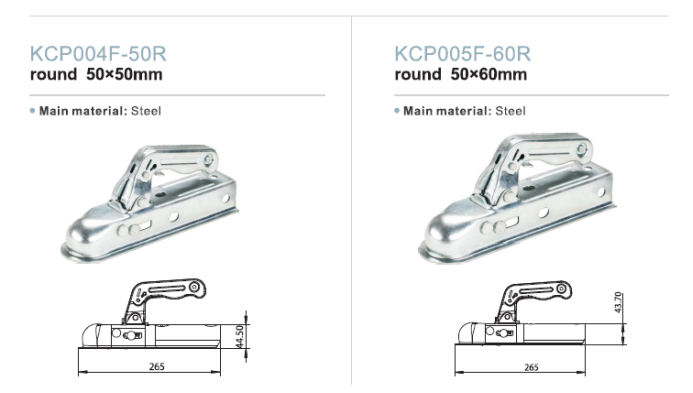

Trailer Coupler Parameter 2

Our coupling head is engineered for trailers with a gross vehicle weight of 800-1,400 kg and compatible with square 40mm, 50mm, and 60mm drawbars.

Specifications
Material
Galvanized Steel (T2.75 & 4.0 mm)
Landing Profile
Square 40x40; 50x50; 60x60 mm
Max Trailer Weight
800 kg & 1400 kg options
Coupling Ball Diameter
50 mm (ISO Standard)
Mounting Distance
92 mm
Mounting Method
Vertical / Horizontal
Wear Indicator
Integrated Automatic System
Warranty
12 Months

This coupling head combines reliability, ease of use, and high-quality materials designed to ensure safety and comfort when using a trailer on the road. The automatic closing mechanism ensures a secure attachment; simply press onto the ball, and the head closes automatically.

Frequently Asked Questions
What is the difference between an A-frame coupler and a straight-tongue coupler?
A-frame couplers are designed for trailers where the frame meets in a triangle at the front, offering higher weight ratings and better stability for RVs and travel trailers compared to straight-tongue models.
How does the wear indicator work?
The integrated wear indicator allows for visual monitoring of the hitch's condition. It signals when the internal mechanism or the ball connection has worn down, prompting timely replacement for safety.
Is the coupler weather-resistant?
Yes, the coupler is made from stamped galvanized steel with an additional zinc coating to provide superior protection against corrosion, rust, and external environmental factors.
What sizes of trailer tongues does this coupler fit?
This specific series is designed to fit square drawbars/tongues with profiles of 40mm, 50mm, or 60mm.
Does the coupler require tools for adjustment?
No, the Quick-Lock ball clamp system features a trigger latch design that allows for fast locking and unlocking without the need for wrenches or manual adjustments.
Can this coupler be welded?
Yes, the design allows for versatile installation; it can be either bolted or welded to the trailer tongue depending on your trailer's requirements.
