Hexagonal Wire Netting

Mainly made by weaving with Right twist, reverse twist, double twist, first braiding after plating

Send Inquiry

Product Description

📦 Description

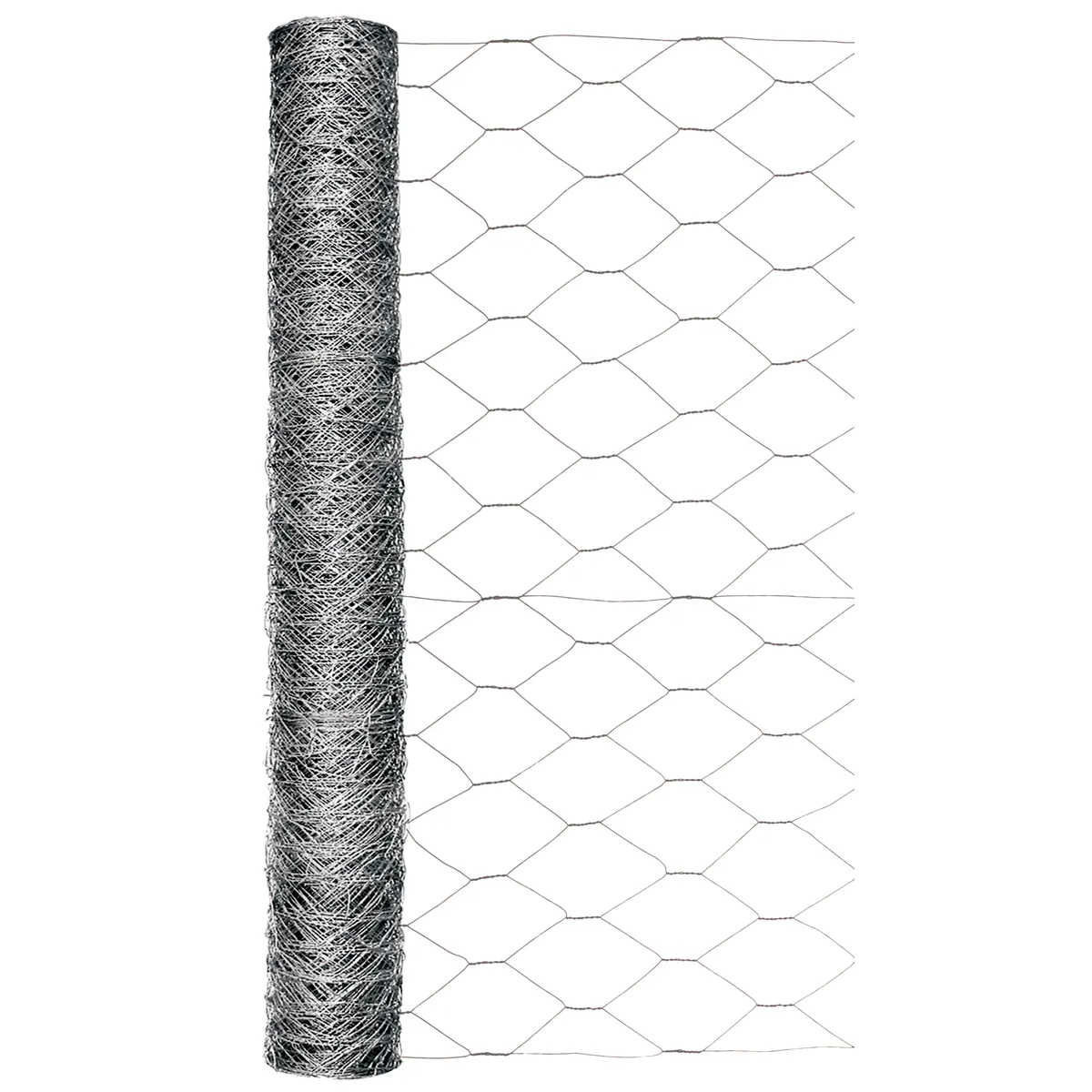

Hexagonal wire netting is produced with superior quality of low carbon iron wire, normally galvanized or plastic coated for long life. The mesh is firm in structure and has a flat surface.
Hexagonal wire netting is commonly known as chicken wire, poultry wire, poultry netting, and hexagonal mesh.

🎁 Package

In rolls. Wrapped by water-proof paper, or shrink-wrapped.
Remark: sizes other than those above-mentioned may be made to order after consideration.
It can protect the inner goods and is easy to handle, transport, and stock multiple cartons.
Outer cartons can protect the inner box and goods, are easy to transport and stock, inner box are very nice for display in shops.
Colors available: green, blue, yellow, gold, silver, etc. Other colors may be available upon request.
With the newly developed technology of plastic coated wire in different colors, decent becomes available in green yard range, with so many different colors, it is the best net for the decoration at homes, shops, and restaurants.

🛠️ Application

Wire mesh fencing

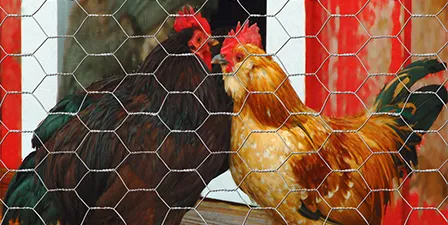

Wire mesh chicken coops

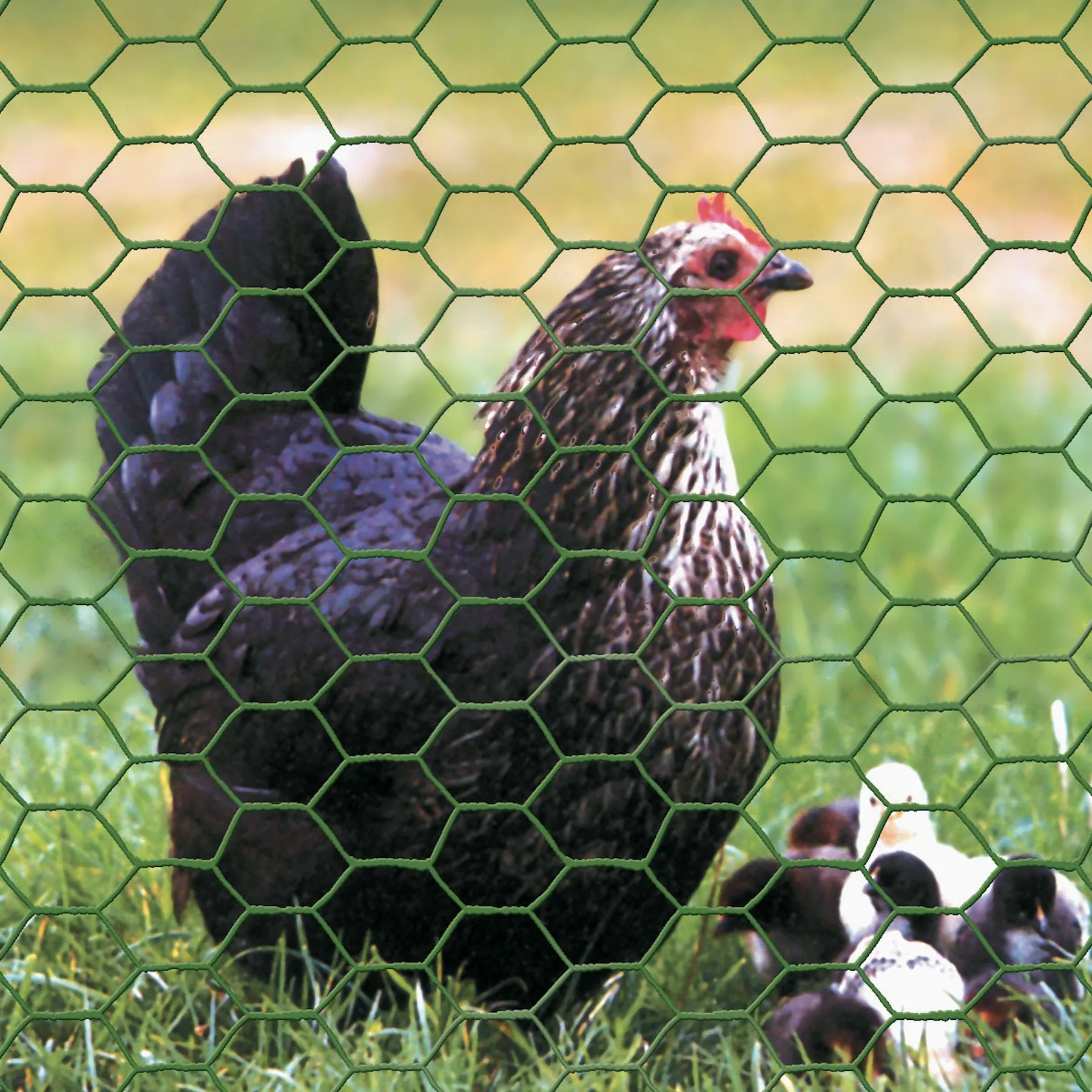

Poultry Hexagonal wire netting
Flood control hexagonal wire netting
Construction reinforcement hexagonal wire netting

General-purpose wire netting
Wire mesh window guards

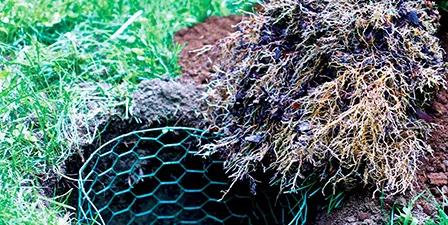

Wire mesh tree guards
Trellis for climbing plants and flowers
Framework for sculpture and float decorations

📏 Hexagonal Wire Mesh Sizes

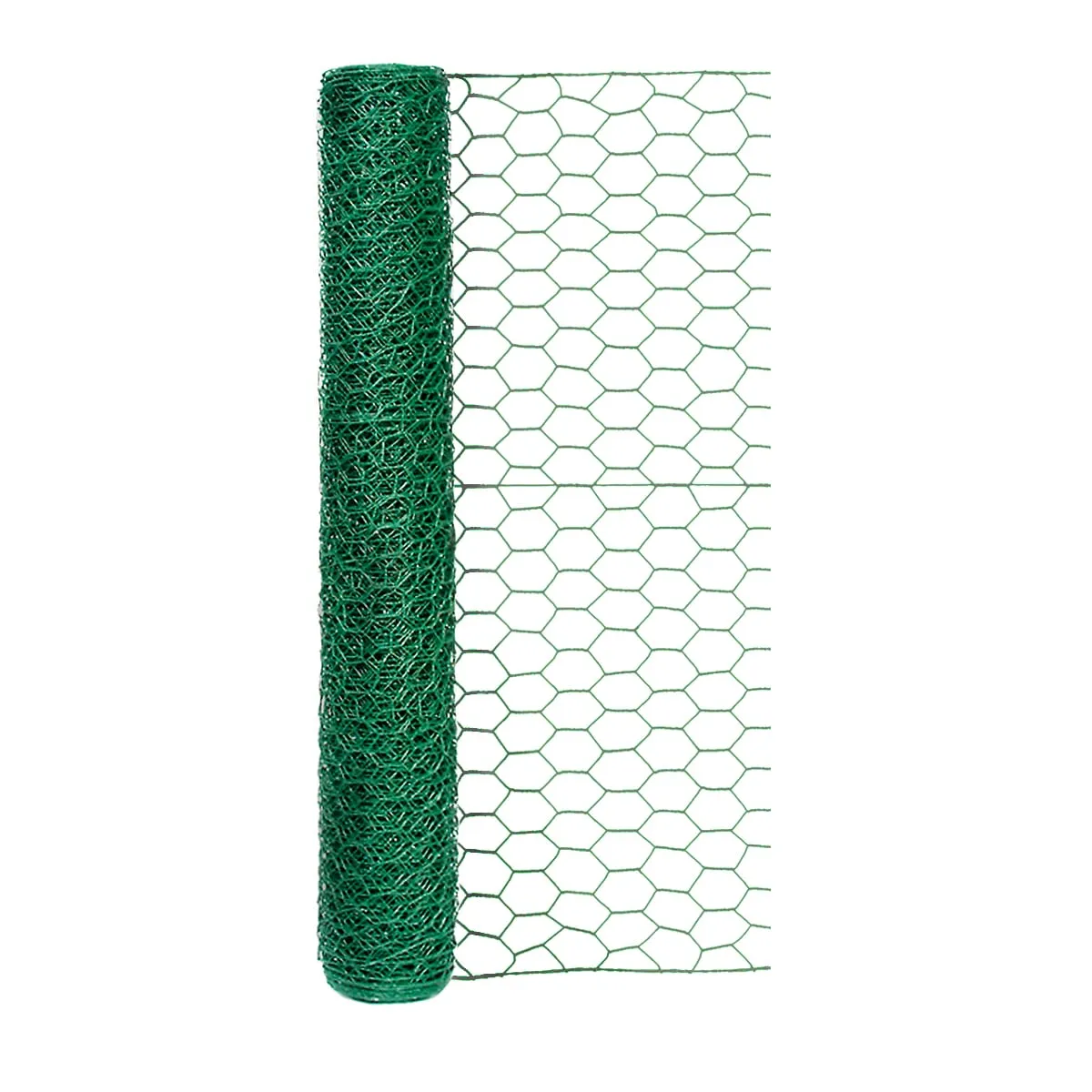

HEX. WIRE NETTING IN PVC-COATED

MESH	WIRE GAUGE
1/2”	13MM	0.9MM, 1.0MM
5/8”	16MM	0.9MM, 1.0MM
3/4”	19MM	0.9MM, 1.0MM
1”	25MM	1.0MM, 1.2MM, 1.4MM
1-1/2”	40MM	1.0MM, 1.2MM, 1.4MM, 1.6MM
2”	50MM	1.0MM, 1.2MM, 1.4MM, 1.6MM, 2.0MM

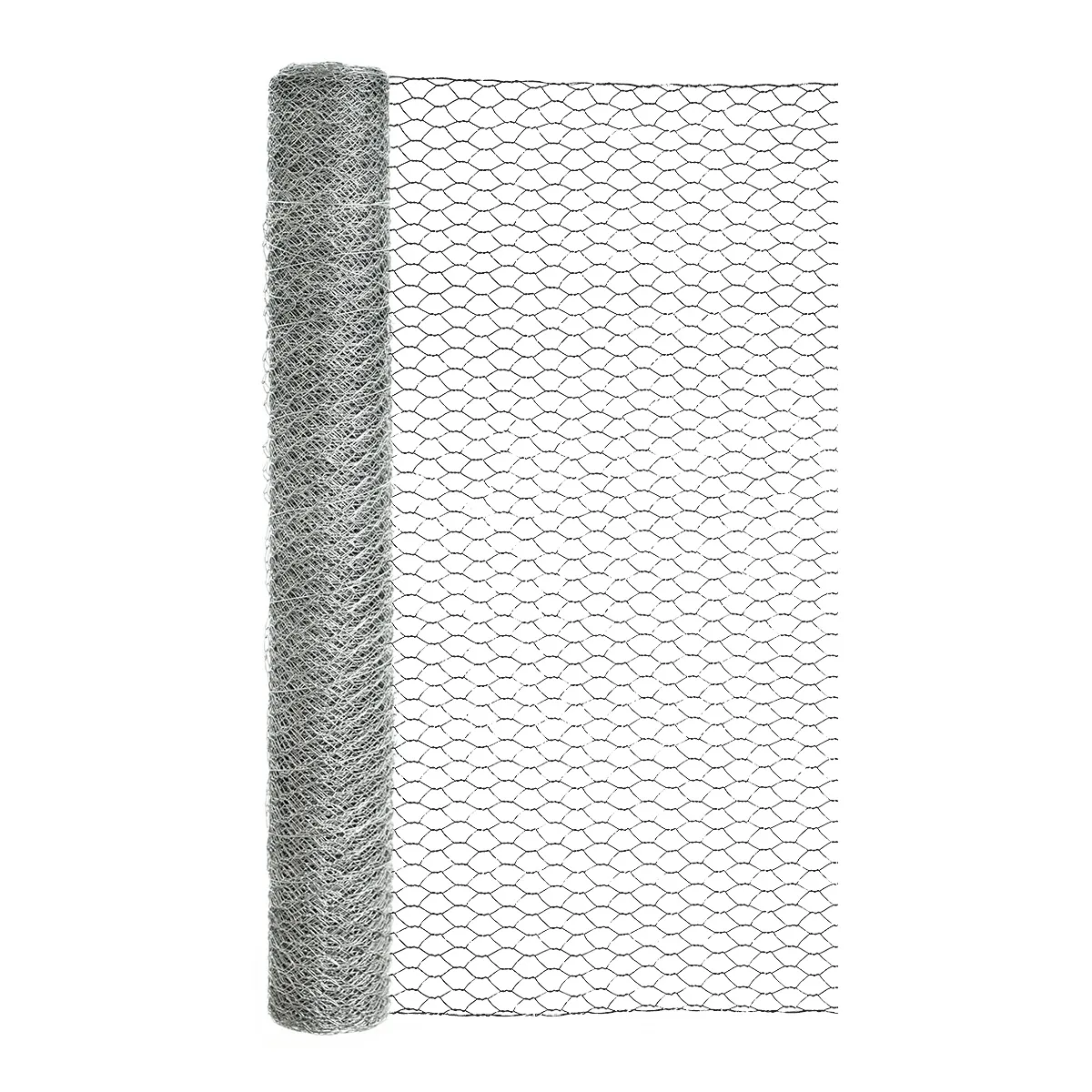

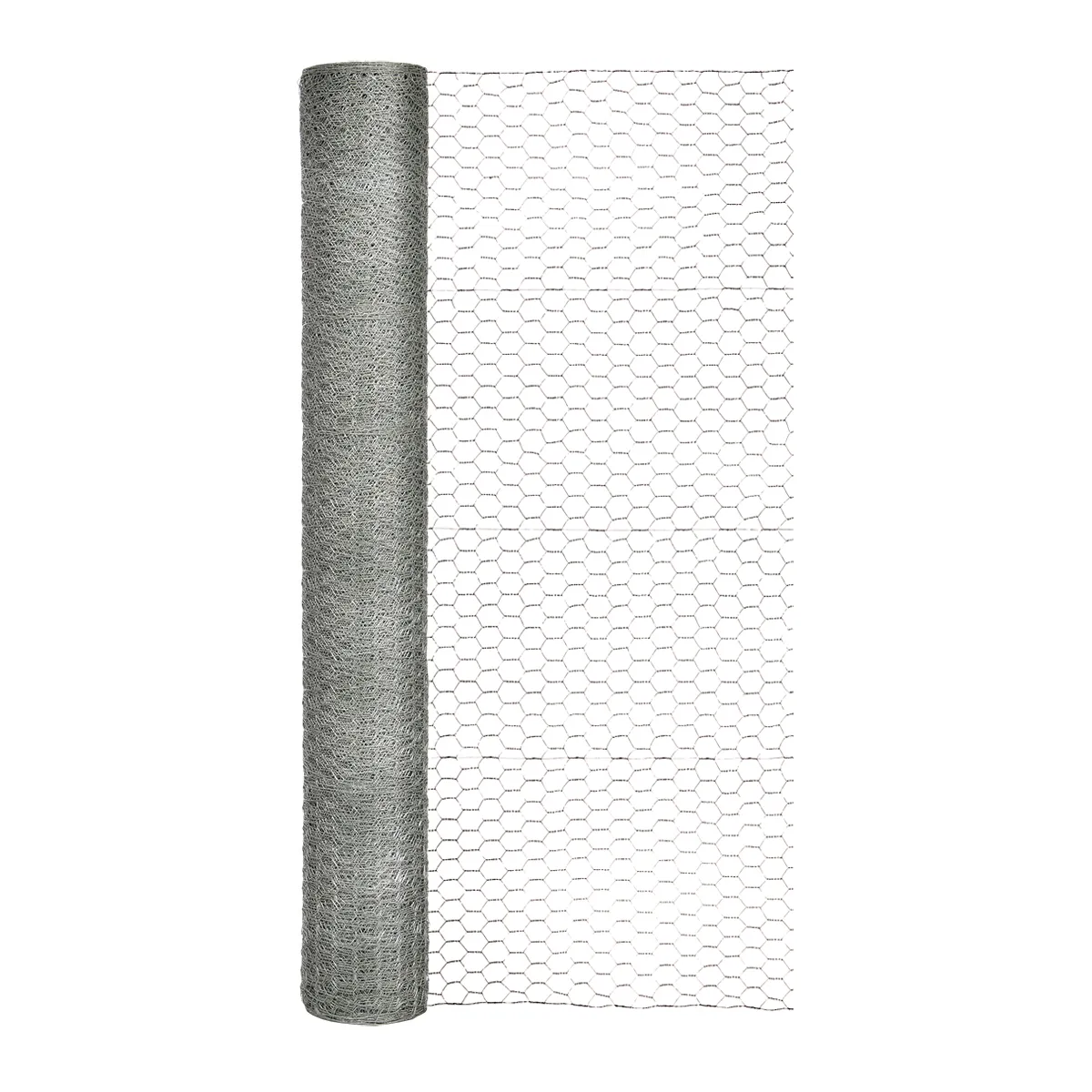

HEX. WIRE NETTING IN NORMAL TWIST (GALVANISED) - (5M to 3000M Rolls)

MESH	MM	WIRE GAUGE
3/8”	10MM	27, 26, 25, 24, 22, 21
1/2”	13MM	27, 26, 25, 24, 22, 21, 20
5/8”	16MM	27, 26, 25, 24, 22
3/4”	20MM	25, 24, 22, 21, 20, 19
1”	25MM	25, 24, 22, 21, 20, 19, 18
1-1/4”	30MM	22, 21, 20, 19, 18
1-1/2”	40MM	22, 21, 20, 19, 18, 17
2”	50MM	22, 21, 20, 19, 18, 17, 16, 15, 14
3”	75MM	21, 20, 19, 18, 17, 16, 15, 14
4”	100MM	17, 16, 15, 14

SPECIFICATION REFERENCE (WIDTH/LENGTH/WEIGHT)

WIDTH (M)	LENGTH (M)	REF. WEIGHT (KGS)
0.2	1.2	0.09
0.2	1.8	0.13
0.2	2	0.14
0.2	2.5	0.18
0.25	2	0.18
0.25	2.5	0.22
0.5	2	0.36
0.5	2.5	0.45
0.5	3	0.55
0.5	5	0.9
1	2	0.7
1	3	1.05
1	5	1.75

❓ Frequently Asked Questions

What materials are used for hexagonal wire netting? It is produced using high-quality low carbon iron wire, which is typically galvanized or PVC-coated to ensure a long service life and resistance to corrosion.

What are the common names for this product? Hexagonal wire netting is widely known as chicken wire, poultry wire, poultry netting, and hexagonal mesh.

Can I request custom sizes or colors? Yes, while standard colors include green, blue, yellow, gold, and silver, other sizes and colors can be made to order upon request.

How is the wire mesh packaged for shipping? The mesh is typically supplied in rolls, wrapped in waterproof paper or shrink-wrapped to protect the product during handling, transport, and storage.

What are the main applications for hexagonal mesh? It is used for poultry coops, garden fencing, flood control, construction reinforcement, tree guards, and even decorative frameworks for sculptures.

Is the structure of the mesh durable? Yes, the hexagonal wire netting features a firm structure and a flat surface, designed to withstand various environmental conditions when galvanized or coated.
