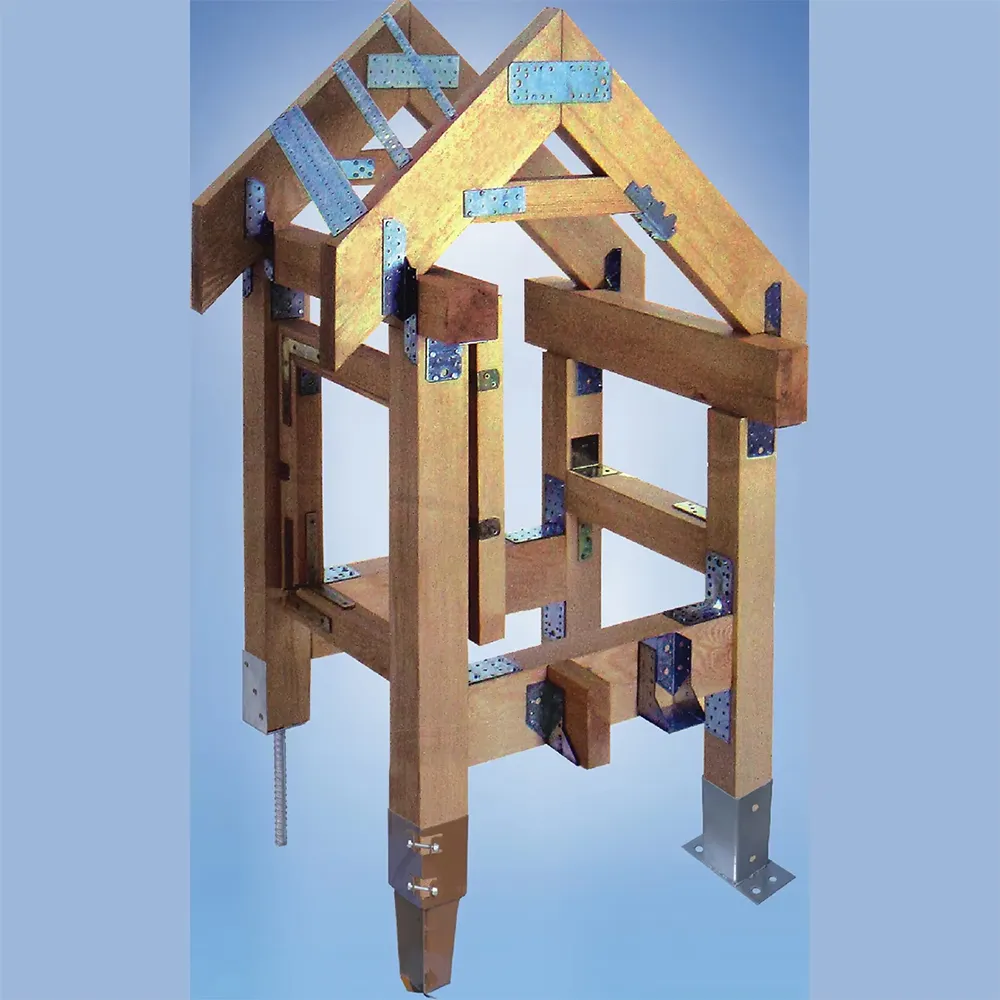

Wood Frame Connector

Features of Wood Frame Connector Premium Material: These corner fasteners are made of great stainl

Send Inquiry

Product Description

Joist Hanger

Art No.	Dimentions(mm)
Art No.	A	B	D
JH001	25	100	2
JH002	32	109	2
JH003	36	142	2
JH004	38	106	2
JH005	40	110	2
JH006	45	197	2
JH007	48	95	2
JH008	50	195	2
JH009	60	100	2
JH010	60	160	2
JH011	80	180	2
JH012	80	210	2
JH013	90	115	2
JH014	120	160	2
JH015	140	180	2
JH016	160	200	2.5
JH017	200	140	2.5

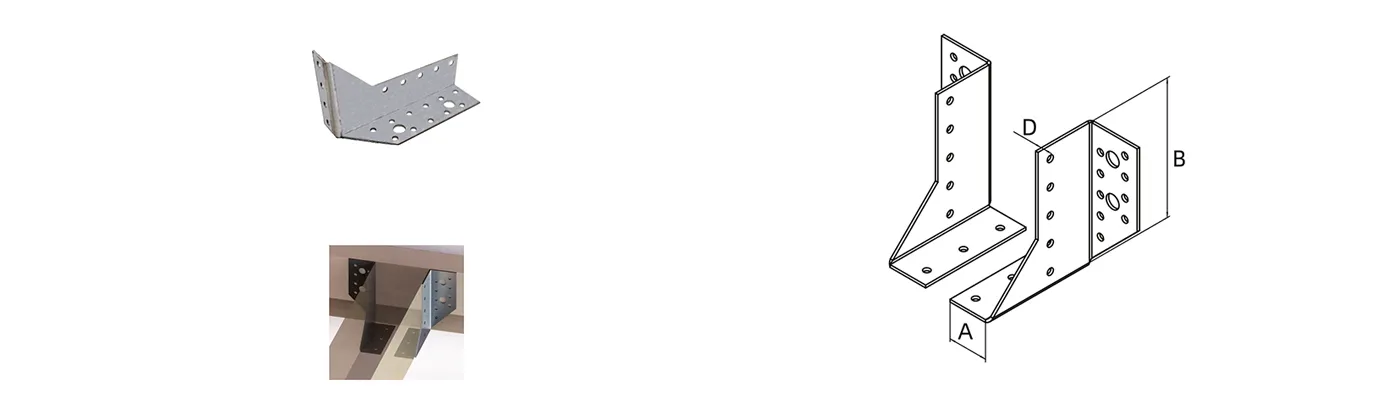

Joist Hanger Separated

Art No.	Dimentions(mm)
Art No.	A	B	C
JHS001	30	80	2
JHS002	30	100	2
JHS003	30	120	2
JHS004	30	140	2
JHS005	30	150	2
JHS006	30	160	2

Joist Hanger Inner Folded

Art No.	Dimentions(mm)
Art No.	A	B	C
JHIF001	40	70	2
JHIF002	45	105	2
JHIF003	51	195	2
JHIF004	60	100	2
JHIF005	70	125	2
JHIF006	80	120	2
JHIF007	100	200	2
JHIF008	120	190	2
JHIF009	140	180	2
JHIF010	150	145	2

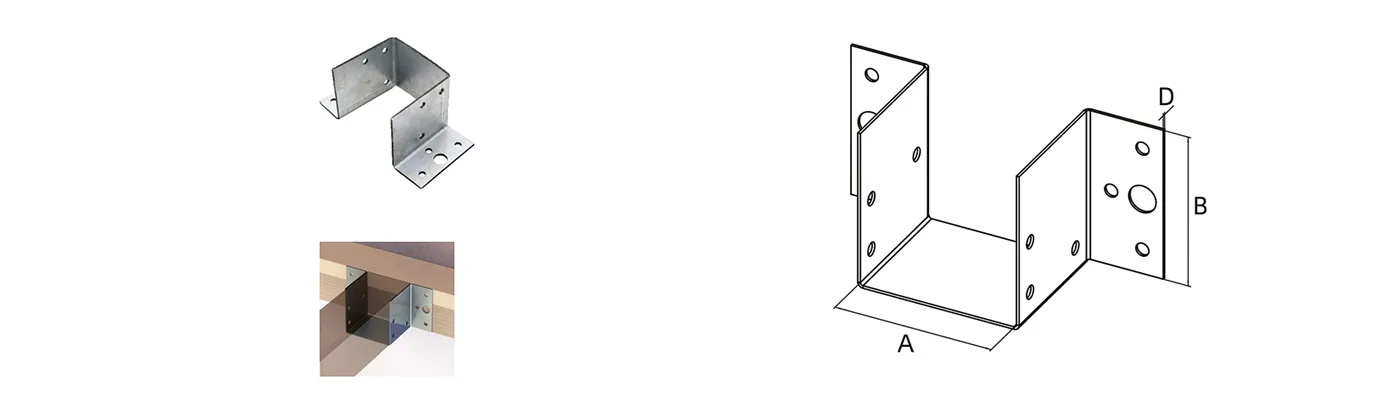

Joist Hanger Light Duty

Art No.	Dimentions(mm)
Art No.	A	B	C
JHLD001	25	77	1
JHLD002	38	71	1
JHLD003	41	70	1
JHLD004	51	65	1
JHLD005	60	60	1

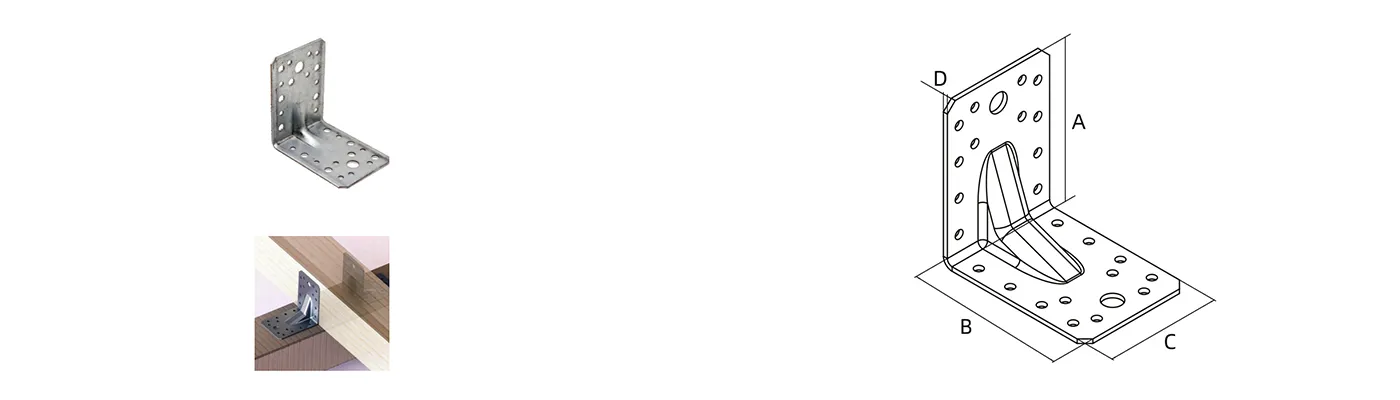

Reinforced Angle Bracket

Art No.	Dimentions(mm)
Art No.	A	B	C	D
RAB001	150	150	65	2.5
RAB002	50	50	35	2
RAB003	70	70	55	2
RAB004	90	90	40	2
RAB005	100	100	55	2
RAB006	120	120	90	2
RAB007	140	140	90	2
RAB008	50	50	35	2.5
RAB009	70	70	55	2.5
RAB010	90	90	65	2.5
RAB011	100	100	55	2.5
RAB012	105	105	90	2.5
RAB013	120	120	90	2.5
RAB014	150	150	65	2.5

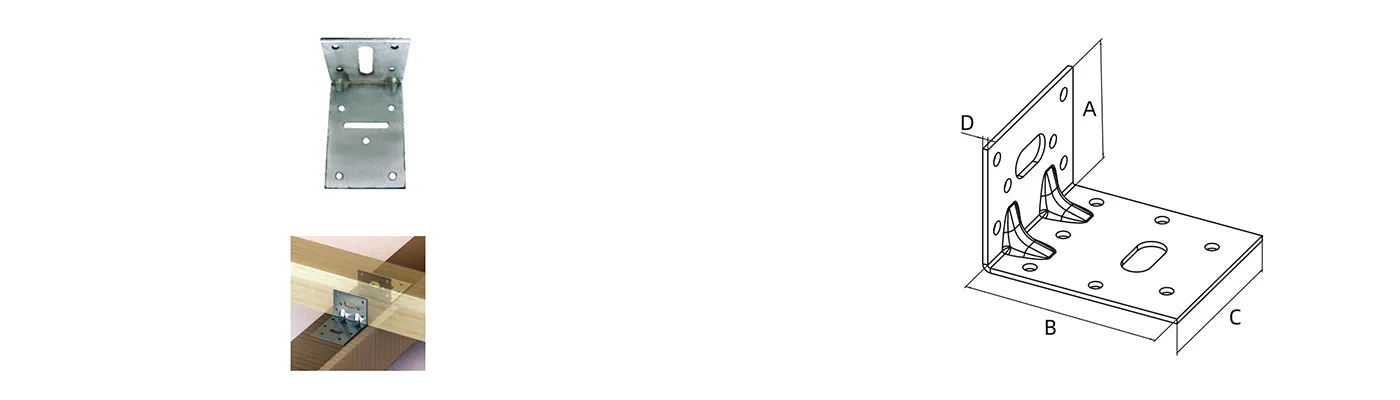

Adjustable Square Bracket

Art No.	Dimentions(mm)
Art No.	A	B	C	D
ASB001	40	160	40	2.5
ASB002	40	120	40	2.5
ASB003	40	90	40	2.5
ASB004	50	90	50	2.5
ASB005	60	35	60	2.5
ASB006	60	90	60	2.5
ASB007	80	60	40	2.5
ASB008	90	40	40	2.5

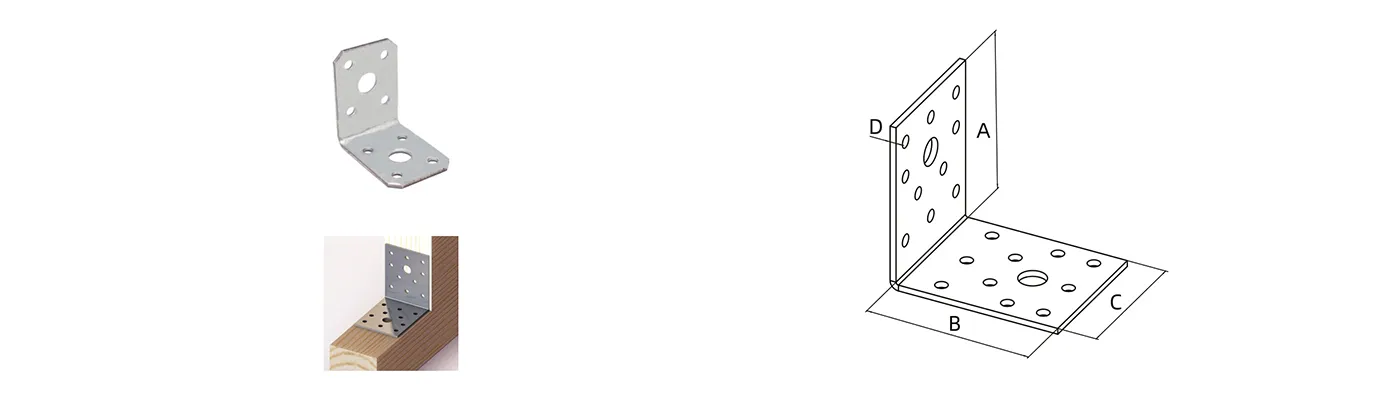

Merging Square Bracket

Art No.	Dimentions(mm)
Art No.	A	B	C	D
MSB001	50	50	35	2.5
MSB002	60	60	45	2.5
MSB003	65	65	55	2.5
MSB004	70	70	55	2.5
MSB005	90	90	40	2.5
MSB006	100	100	55	2.5
MSB007	105	105	90	2.5
MSB008	40	90	40	2.5
MSB009	40	160	40	2.5
MSB010	50	90	50	2.5
MSB011	60	90	60	2.5
MSB012	80	50	40	2.5
MSB013	90	120	40	2.5

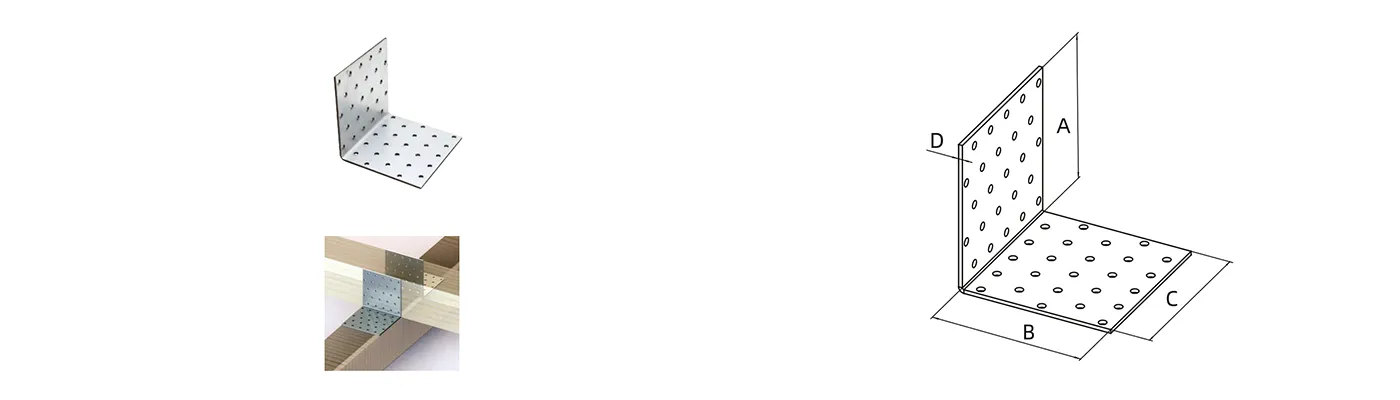

Assembly Angle Bracket

Art No.	Dimentions(mm)
Art No.	A	B	C	D
AAB001	40	40	40	2
AAB002	40	40	60	2
AAB003	40	40	200	2
AAB004	50	50	40	2.5
AAB005	60	60	40	2
AAB006	80	80	100	2
AAB007	70	70	55	2.5
AAB008	100	100	40	2
AAB009	100	100	60	2
AAB010	100	100	80	2
AAB011	100	100	100	2.5
AAB012	105	105	90	3

Flat Connector

Art No.	Dimentions(mm)
Art No.	A	B	C
FC001	80	40	2
FC002	120	40	2
FC003	200	40	2
FC004	300	40	2
FC005	140	60	2
FCO06	160	60	2
FC024	1200	40	2
FC025	1200	60	2

Steel Banding

Art No.	Dimentions(mm)
Art No.	A	B	D
SB001	4000	25	2
SB002	4000	50	2
SB003	6000	25	2
SB004	6000	50	2
SB005	8000	25	2
SB006	8000	50	2

Frequently Asked Questions

What are the primary applications for these joist hangers and brackets?

These connectors are essential for timber construction, providing strong, reliable joints for floor joists, rafters, and various structural framing projects.

Are the dimensions customizable for specific project requirements?

We offer a wide range of standard sizes as listed in our tables. For bulk orders with specific dimension requirements, please consult our technical specifications.

What material and finish are used for these connectors?

Most items are manufactured from high-quality galvanized steel to ensure excellent load-bearing capacity and long-term corrosion resistance in various environments.

How do I choose between standard and reinforced angle brackets?

Reinforced angle brackets feature a central rib for added strength, making them ideal for heavy-duty structural applications where extra rigidity is required.

Can the steel banding be cut to custom lengths?

Yes, while we provide standard lengths like 4000mm and 6000mm, the steel banding is designed to be versatile and can be trimmed to fit your specific bracing needs.

Are these products compatible with both indoor and outdoor construction?

Yes, due to their galvanized finish, they are suitable for protected outdoor environments as well as standard indoor framing applications.
