⚙️ Applications
- Wire Mesh Production: Widely used in manufacturing wire mesh for construction, agriculture, and industrial purposes.
- Construction: Commonly used for reinforcing, tying, and binding in construction projects.
- Agricultural Use: Ideal for creating fences, supports, and other agricultural structures.
- General Industry: Suitable for various industries where flexibility, softness, and corrosion resistance are required.
📊 Parameters Table
| Name |
Black annealed wire |
Black annealed cut iron wire |
Black annealed binding tie wire |
| Wire Guage |
BWG8 ~ 26# |
AWG8 ~ 26# |
SWG8 ~ 26# |
| Wire Diameter |
4mm ~ 0.46mm |
4mm ~ 0.46mm |
4mm ~ 0.46mm |
| Material |
Q195 or as needed |
| Coil weight |
10-100KGS |
| Tensile Strength |
30KGS/mm²— 55KGS/mm² |
| Wire Gauge Size |
SWG(mm) |
BWG(mm) |
BG(mm) |
| 8 | 4.06 | 4.19 | 3.988 |
| 9 | 3.66 | 3.76 | 3.551 |
| 10 | 3.25 | 3.40 | 3.175 |
| 11 | 2.95 | 3.05 | 2.827 |
| 12 | 2.64 | 2.77 | 2.517 |
| 13 | 2.34 | 2.41 | 2.24 |
| 14 | 2.03 | 2.11 | 1.994 |
| 15 | 1.83 | 1.83 | 1.775 |
| 16 | 1.63 | 1.65 | 1.588 |
| 17 | 1.42 | 1.47 | 1.412 |
| 18 | 1.22 | 1.25 | 1.257 |
| 19 | 1.02 | 1.07 | 1.118 |
| 20 | 0.91 | 0.89 | 0.996 |
| 21 | 0.81 | 0.813 | 0.887 |
| 22 | 0.71 | 0.711 | 0.749 |
| 23 | 0.61 | 0.635 | 0.707 |
| 24 | 0.56 | 0.559 | 0.629 |
| 25 | 0.51 | 0.508 | 0.56 |
| 26 | 0.46 | 0.457 | 0.498 |

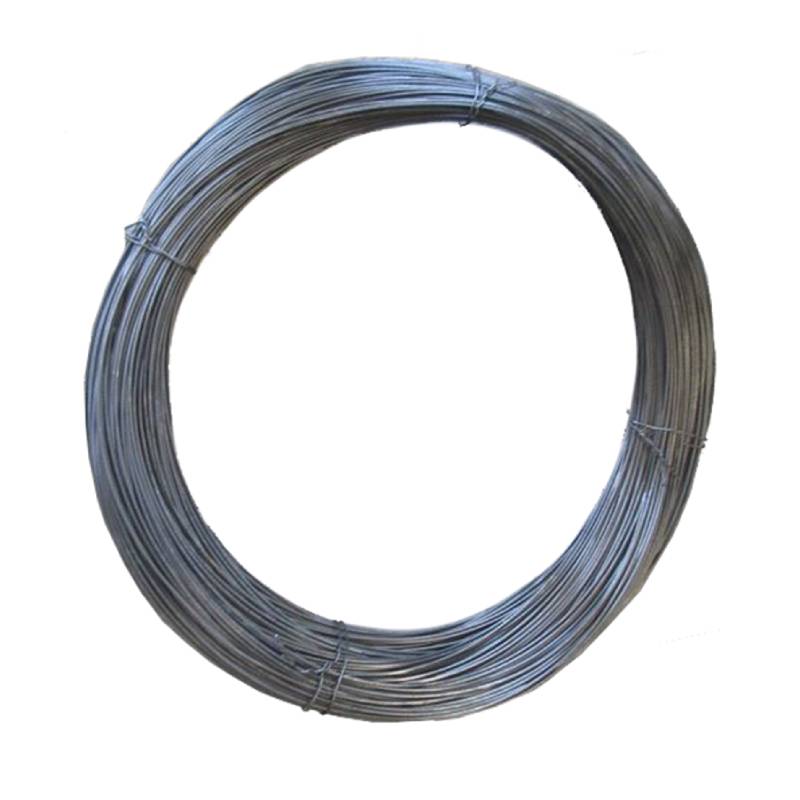

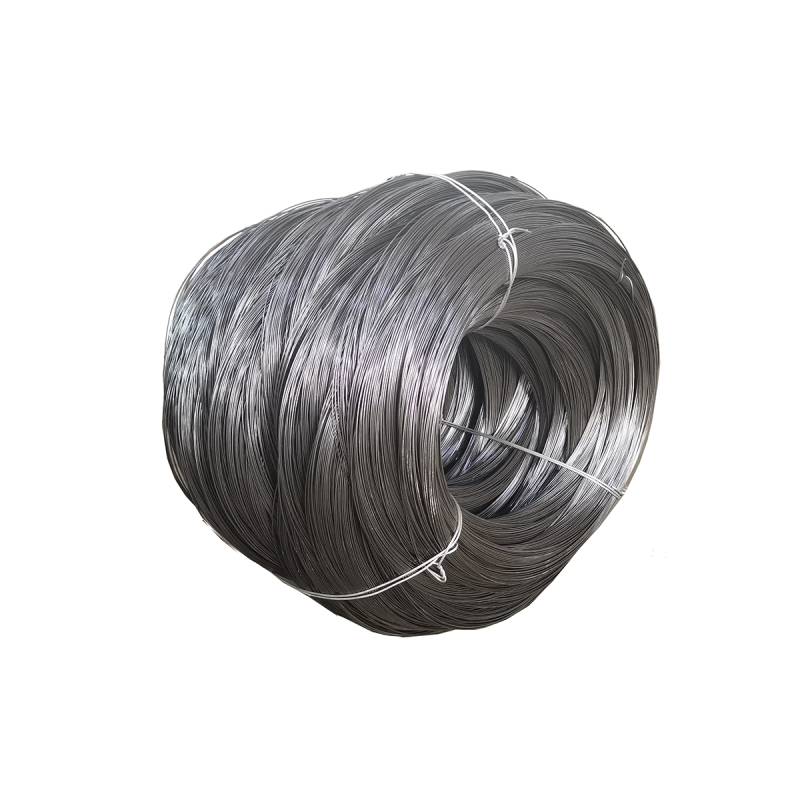

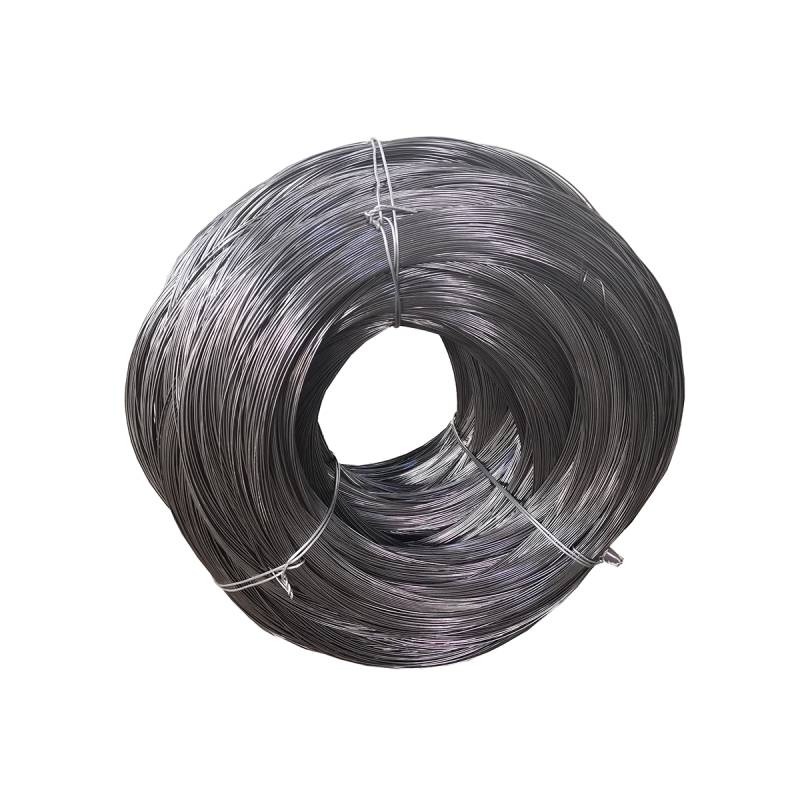

🖼️ Black Anneal Wire Display
Frequently Asked Questions
What are the primary uses of black annealed wire?
It is widely used in construction for reinforcing and binding, in agriculture for fencing, and for manufacturing various types of wire mesh.
What material is used to produce this wire?
The wire is typically made from high-quality Q195 low carbon steel or other materials as required by the customer.
What is the range of wire diameters available?
We offer a wide range of diameters from 0.46mm up to 4mm, covering gauges from BWG/SWG 8 to 26.
What is the tensile strength of the black annealed wire?
The tensile strength typically ranges from 30KGS/mm² to 55KGS/mm², ensuring both flexibility and durability.

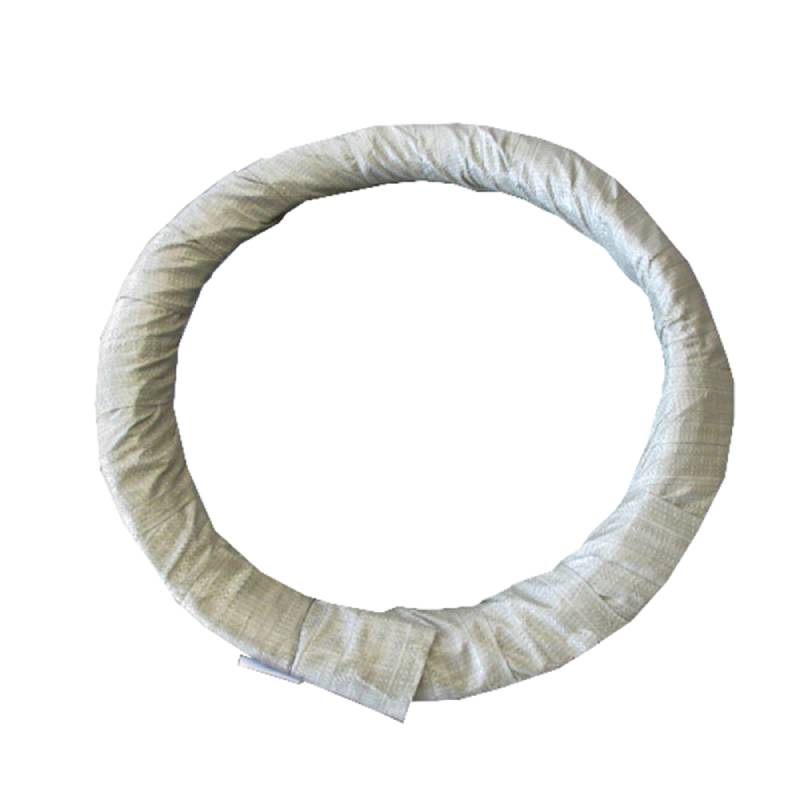

How is the wire packaged for delivery?
The wire is standardly supplied in coils, with coil weights ranging from 10KGS up to 100KGS.
Why choose annealed wire over standard iron wire?
The annealing process makes the wire much softer and more flexible while maintaining strength, making it easier to bend and tie manually.
