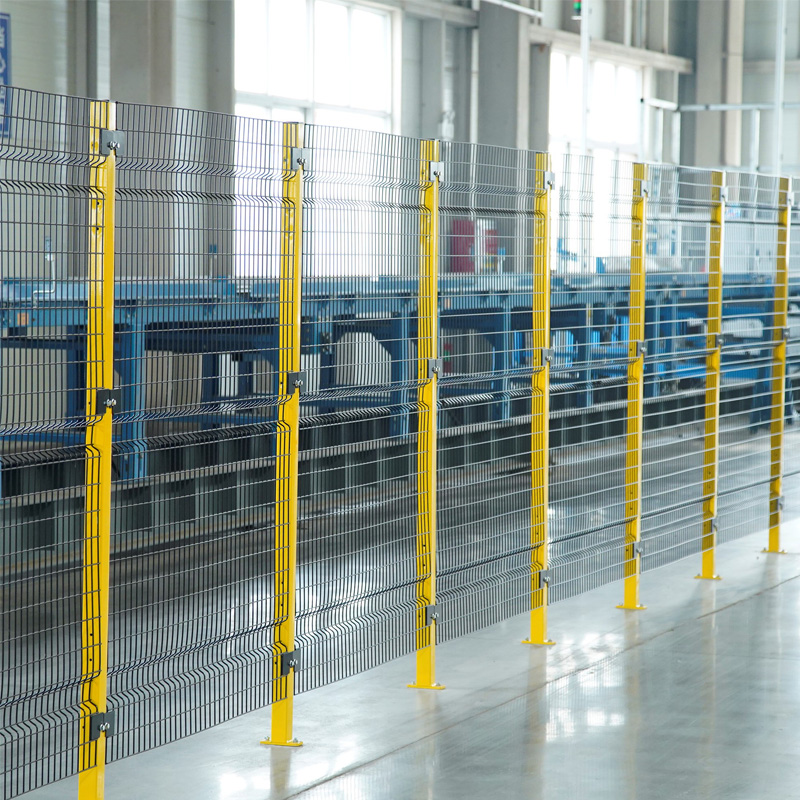

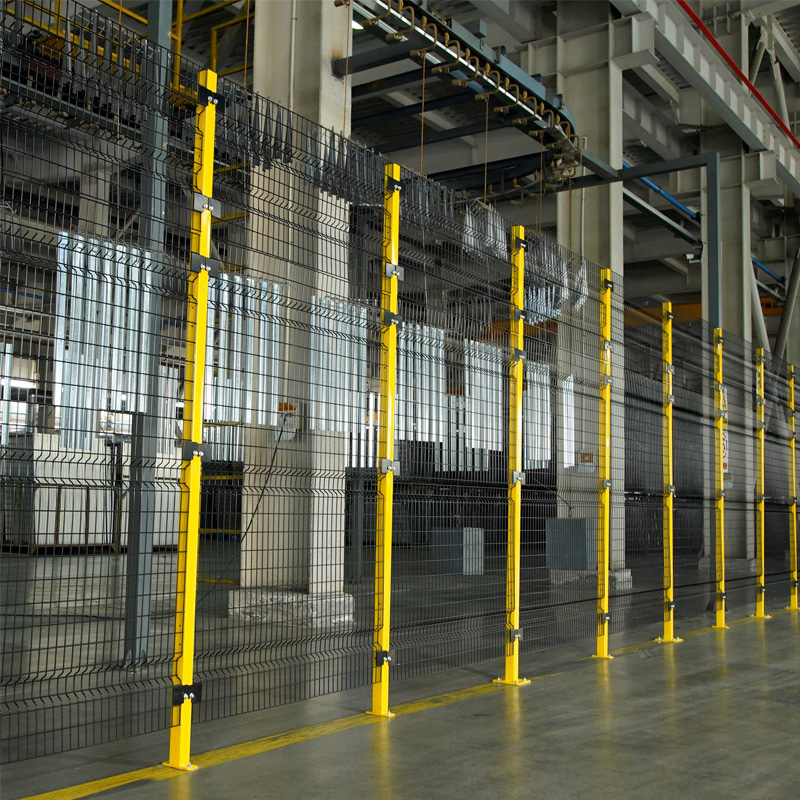

Framedless Panel
Framedless Panel
Framedless Panel
Framedless Panel
1 / 4
Framedless Panel
Framedless Panel
Framedless Panel
Framedless Panel

Framedless Panel

Description
Send Inquiry

Product Description

Description

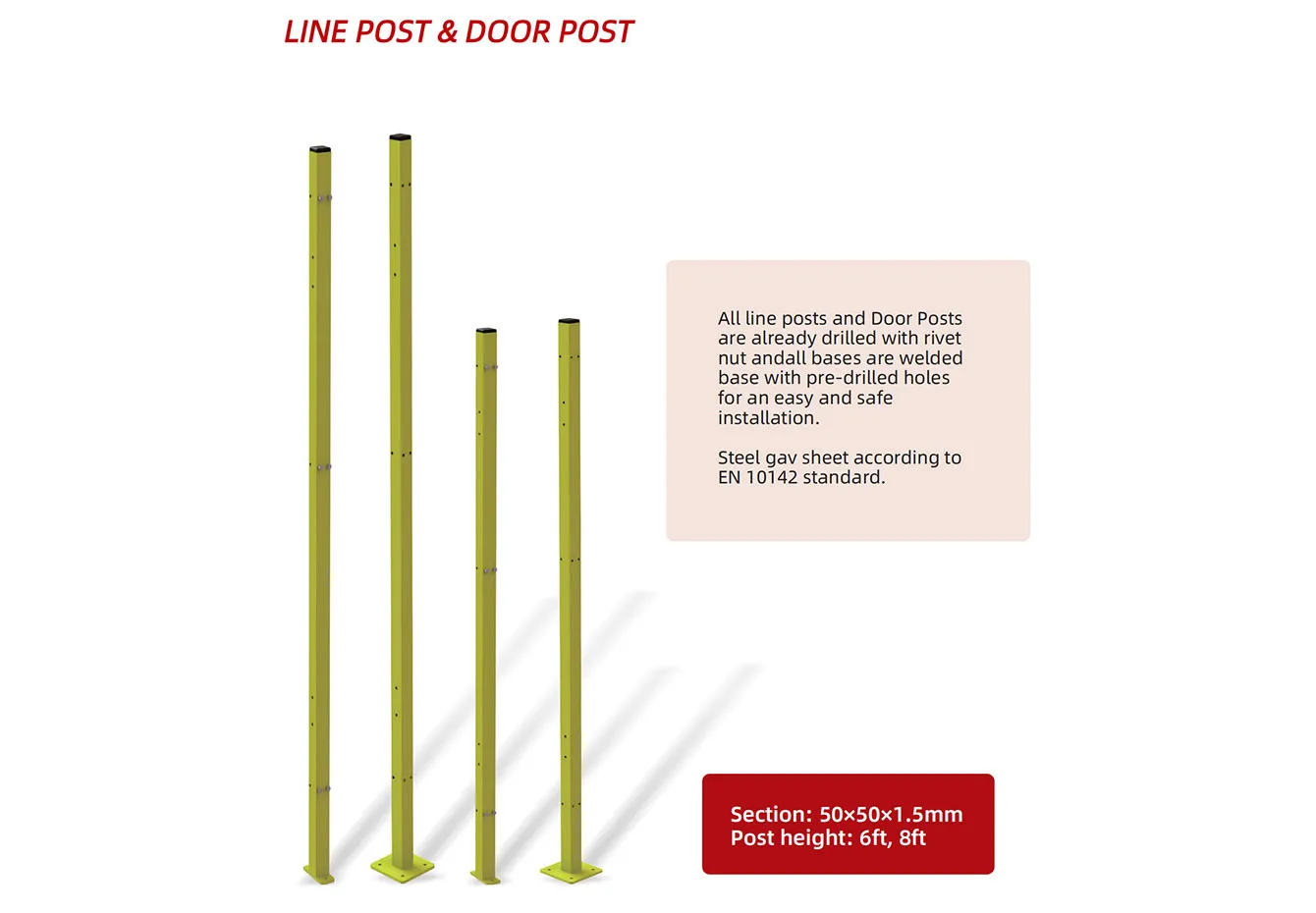

  • All line posts and door posts are already drilled with rivet nut and all bases are welded base with pre-drilled holes for an easy and safe installation.
  • Steel GAV sheet according to EN10142 standard.

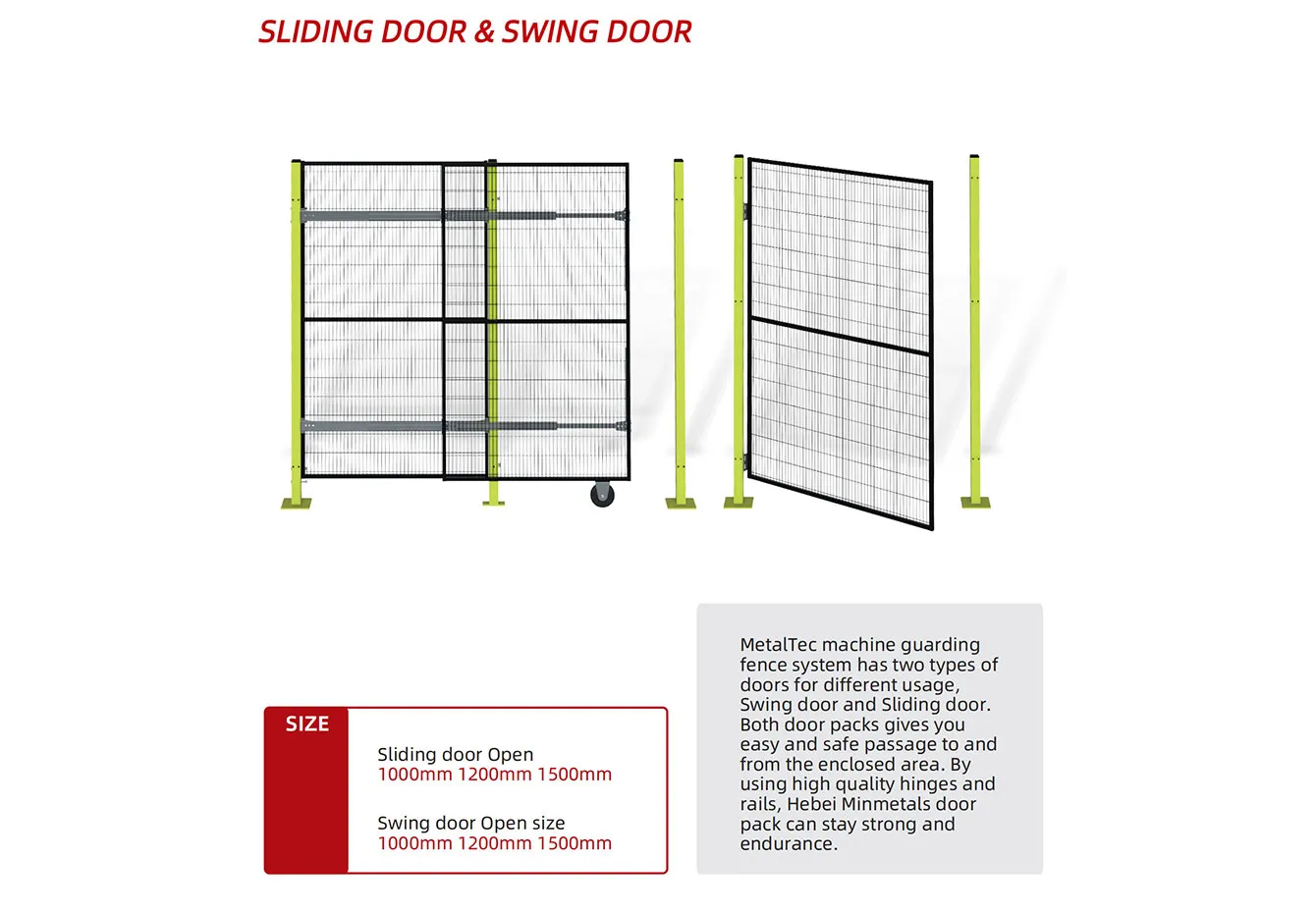

  • Metaltec machine guarding fence system has two types of doors for different usage, swing door and sliding door.
  • Both door packs gives you easy and safe passage to and from the enclosed area.
  • By using high quality hinges and rails, door pack can stay strong and endurance.
  • The framed panels, posts have been tested according to the recommendations on the impact tests described in ISO 14120:2015 annex C with the impact energies 1600J.
  • The unframed panels, posts have been tested according to the recommendations on the impact tests described in ISO 14120:2015 annex C with the impact energies 1200J.

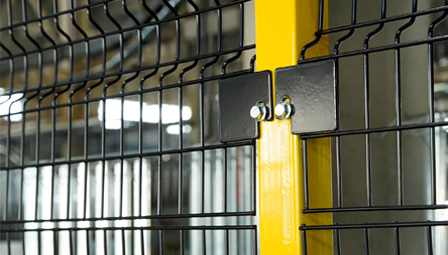

Machine Guarding 1

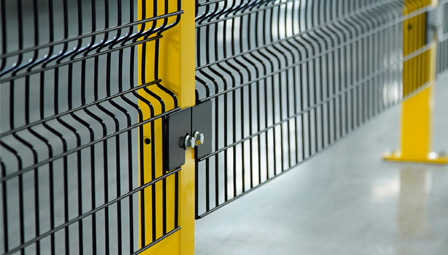

Machine Guarding 2

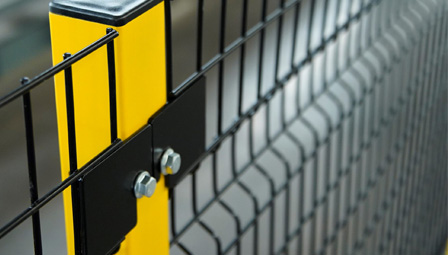

Machine Guarding 3
Advantage
⚙️ Easy & Quick Assembly
  • With a comprehensive range of standard components and Post & Welded base with pre-drilled holes, our MetalTec can be easily and quickly assembled.
🛡️ Anti-Climbing
  • External vertical wires limit toeholds and effectively deter climbing.
👁️ Visibility
  • The vertical slots and black painted finish ensure excellent visibility of the machinery through the wire mesh panels.
✂️ Cut Arbitrarily
  • If necessary, panels can also be cut to length or height on site and finished with the cut kit.
Parameter Table

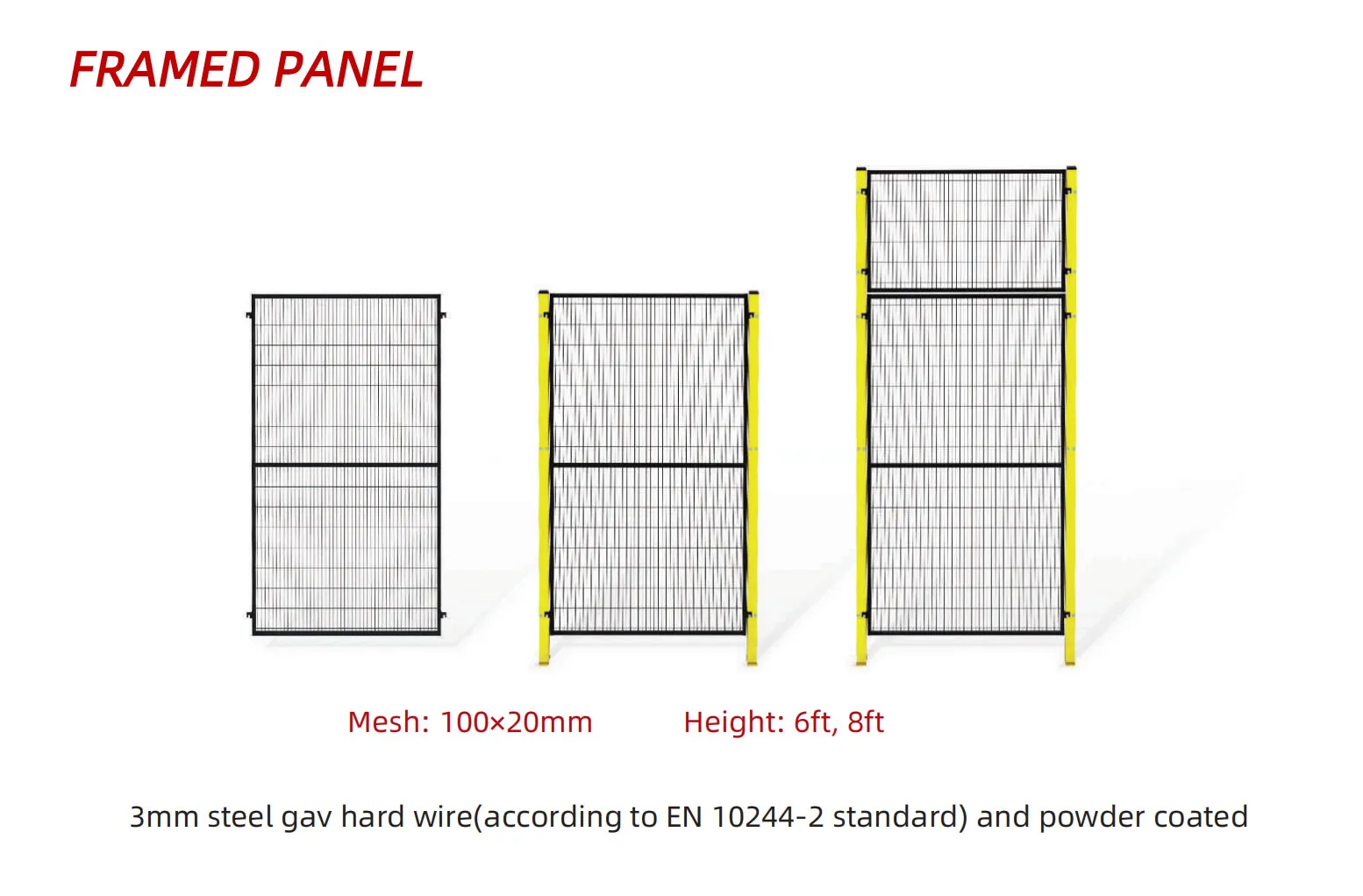

Parameter Data 1
Parameter Data 2
DESCRIPTION (FRAMED PANEL) PART #
FRAMED PANEL, 200 X 600, PAINTED RAL9005 BLACKFP200X600
FRAMED PANEL, 300 X 600, PAINTED RAL9005 BLACKFP300X600
FRAMED PANEL, 700 X 600, PAINTED RAL9005 BLACKFP700X600
FRAMED PANEL, 800 X 600, PAINTED RAL9005 BLACKFP800X600
FRAMED PANEL, 1000 X 600, PAINTED RAL9005 BLACKFP1000X600
FRAMED PANEL, 1200 X 600, PAINTED RAL9005 BLACKFP1200X600
FRAMED PANEL, 1500 X 600, PAINTED RAL9005 BLACKFP1500X600
FRAMED PANEL, 200 X 1688, PAINTED RAL9005 BLACKFP200X1688
FRAMED PANEL, 300 X 1688, PAINTED RAL9005 BLACKFP300X1688
FRAMED PANEL, 700 X 1688, PAINTED RAL9005 BLACKFP700X1688
FRAMED PANEL, 800 X 1688, PAINTED RAL9005 BLACKFP800X1688
FRAMED PANEL, 1000 X 1688, PAINTED RAL9005 BLACKFP1000X1688
FRAMED PANEL, 1200 X 1688, PAINTED RAL9005 BLACKFP1200X1688
FRAMED PANEL, 1500 X 1688, PAINTED RAL9005 BLACKFP1500X1688
DESCRIPTION (UNFRAMED PANEL) PART #
UNFRAMED PANEL, 300 X 600, PAINTED RAL9005 BLACKUP300X600
UNFRAMED PANEL, 500 X 600, PAINTED RAL9005 BLACKUP500X600
UNFRAMED PANEL, 800 X 600, PAINTED RAL9005 BLACKUP800X600
UNFRAMED PANEL, 1000 X 600, PAINTED RAL9005 BLACKUP1000X600
UNFRAMED PANEL, 1200 X 600, PAINTED RAL9005 BLACKUP1200X600
UNFRAMED PANEL, 1500 X 600, PAINTED RAL9005 BLACKUP1500X600
UNFRAMED PANEL, 1800 X 600, PAINTED RAL9005 BLACKUP1800X600
UNFRAMED PANEL, 2400 X 600, PAINTED RAL9005 BLACKUP2400X600
UNFRAMED PANEL, 300 X 1688, PAINTED RAL9005 BLACKUP300X1688
UNFRAMED PANEL, 500 X 1688, PAINTED RAL9005 BLACKUP500X1688
UNFRAMED PANEL, 800 X 1688, PAINTED RAL9005 BLACKUP800X1688
UNFRAMED PANEL, 1000 X 1688, PAINTED RAL9005 BLACKUP1000X1688
UNFRAMED PANEL, 1200 X 1688, PAINTED RAL9005 BLACKUP1200X1688
UNFRAMED PANEL, 1500 X 1688, PAINTED RAL9005 BLACKUP1500X1688
UNFRAMED PANEL, 1800 X 1688, PAINTED RAL9005 BLACKUP1800X1688
UNFRAMED PANEL, 2400 X 1688, PAINTED RAL9005 BLACKUP2400X1688
Product Detail 1
Product Detail 2
Frequently Asked Questions
Q1: What materials and standards are used for the fencing?
Our system uses Steel GAV sheet manufactured according to the EN10142 standard, ensuring high quality and durability.
Q2: How much impact can the panels withstand?
The framed panels are tested to withstand impact energies of 1600J, while unframed panels are tested to 1200J, both in accordance with ISO 14120:2015 Annex C.
Q3: What types of doors are available with the system?
The system offers two versatile door options: swing doors and sliding doors, designed for easy and safe passage.
Q4: Is the installation process difficult?
No, the installation is designed to be quick and easy. All posts are pre-drilled with rivet nuts, and bases are welded with pre-drilled holes for immediate assembly.
Q5: Can the panels be customized on-site?
Yes, the panels can be cut to a specific length or height arbitrarily on-site and finished professionally using a cut kit.
Q6: Does the fencing provide good visibility of the machines?
Yes, the black painted RAL9005 finish combined with vertical slots ensures excellent visibility of the machinery through the mesh panels.
