Decking

Features

Send Inquiry

Product Description

Features

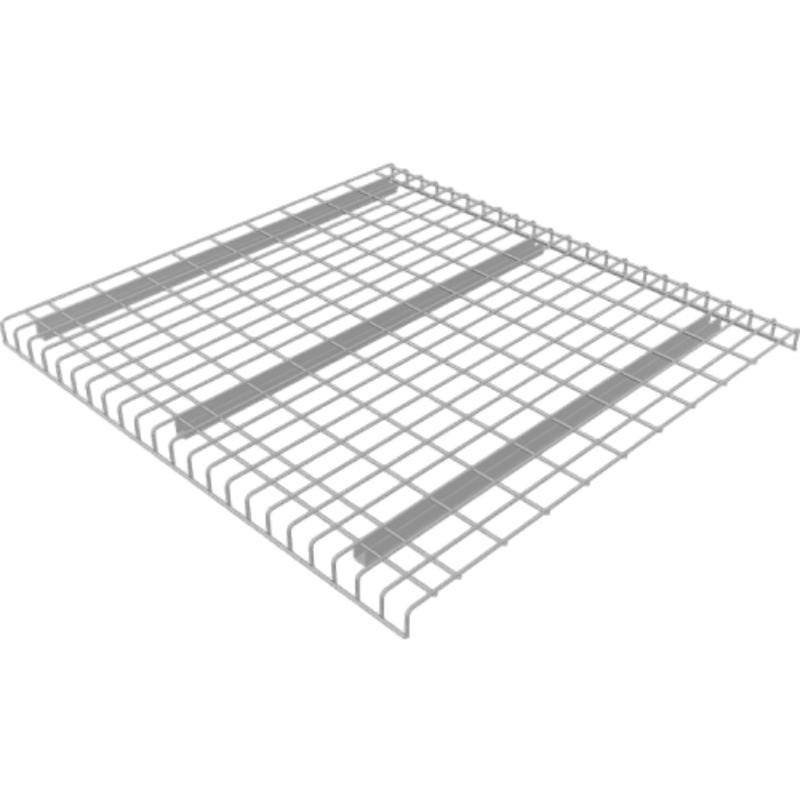

✓ Standard 2-1/2" x 4" x 6 ga. Wire mesh pattern

✓ 14ga & 16ga support channels

✓ 1.5" waterfall front and rear

✓ High quality heavy-duty gray powder coating finish

✓ Capacities based on UDL (uniformly distributed load)

Parameters Table

EURO & AUSTRALIA SIZES

DEPTH (mm)	WIDTH (mm)	MESH (mm)	WIRE DIA (mm)	SUPPORT		CAP. (kg)
DEPTH (mm)	WIDTH (mm)	MESH (mm)	WIRE DIA (mm)	TYPE	N.O	CAP. (kg)
1000	880	50*100	5	FLARED	3	800
1050	880	50*100	5	FLARED	3	800
1100	880	50*100	5	FLARED	3	800
1000	1340	50*100	5	FLARED	4	1000
1050	1340	50*100	5	FLARED	4	1000
1100	1340	50*100	5	FLARED	4	1000
840	1250	50*100	5	FLARED	4	1000
840	1350	50*100	5	FLARED	4	1000
900	1118	50*100	5	FLARED	3	800
1100	1118	50*100	5	FLARED	3	800
900	1320	50*100	5	FLARED	4	1000
1100	1320	50*100	5	FLARED	4	1000

AMERICA SIZES

DEPTH (inch)	WIDTH (inch)	MESH (inch)	WIRE DIA (gauge)	SUPPORT		CAP. (kg)
DEPTH (inch)	WIDTH (inch)	MESH (inch)	WIRE DIA (gauge)	TYPE	N.O	CAP. (kg)
24	46	2.5*4.5	5	U-SHAPE	3	3000
30	46	2.5*4.5	5	U-SHAPE	3	3000
36	46	2.5*4.5	5	U-SHAPE	3	2700
36	52	2.5*4.5	5	U-SHAPE	3	2500
36	58	2.5*4.5	5	U-SHAPE	3	2750
42	46	2.5*4.5	5	U-SHAPE	3	2800
42	52	2.5*4.5	5	U-SHAPE	3	2500
42	58	2.5*4.5	5	U-SHAPE	4	2800
44	46	2.5*4.5	5	U-SHAPE	3	2500
44	52	2.5*4.5	5	U-SHAPE	3	2600
44	58	2.5*4.5	5	U-SHAPE	3	2500
48	46	2.5*4.5	5	U-SHAPE	4	2500
48	52	2.5*4.5	5	U-SHAPE	4	2500
48	58	2.5*4.5	5	U-SHAPE	4	2500
60	46	2.5*4.5	5	U-SHAPE	4	2500

The Benefits of Wire Mesh Decking for Your Warehouse Needs

In today’s fast-paced industrial environment, efficiency and safety are paramount. One of the most effective solutions for maximizing storage capabilities is wire mesh decking. This innovative product has become an essential component in warehouses and storage facilities, offering a range of benefits that enhance operational productivity.

1. Enhanced Visibility:

One of the primary advantages of wire mesh decking is its ability to improve visibility within storage areas. Unlike solid shelving options, wire mesh allows for better air circulation and visibility of the products stored above. This feature not only helps in inventory management but also aids in reducing the potential for accidents.

2. Increased Safety:

Wire mesh decking contributes significantly to the safety of your warehouse environment. The open design allows for easy drainage of liquids, preventing spills and reducing fire risks by allowing sprinkler water to pass through. Sturdy construction ensures goods remain securely in place.

3. Versatility:

Wire mesh decking is versatile and can be adapted to various storage systems, including pallet racks and shelving units. This adaptability means warehouses can change layouts easily to accommodate different types of inventory, optimizing space.

4. Improved Cleanliness:

The design promotes a cleaner environment. Air circulation reduces dust accumulation and facilitates quick clean-up processes, maintaining high hygiene standards for sensitive products.

Understanding Wire Decking Variations

1. Outside Waterfall Deck: Features a curve that extends over the edges of the shelving unit, preventing products from slipping while enhancing stability and airflow.

2. Inverted Channel Deck: Provides enhanced support for heavier items by distributing weight effectively, minimizing sagging in industrial environments.

3. Inside Waterfall Deck: Optimizes vertical space by allowing items to be positioned closer to the back while remaining secure at the front.

4. Flush (or Drop-in) Deck: Offers a seamless surface that sits directly on shelves, perfect for storing smaller items without gaps.

5. Upturned Deck: Features edges turned upwards for extra security in high-traffic areas where products might move or jostle.

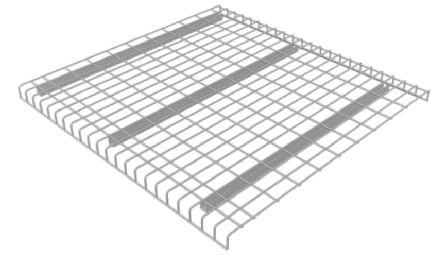

Wire Mesh Decking for Pallet Racking

Wire mesh decking is a robust storage platform constructed from high-quality steel wire. Its design allows for excellent air circulation and visibility, promoting safety and maintaining inventory conditions. It is compatible with most standard pallet racking systems, offering straightforward installation and reduced downtime for business operations.

Frequently Asked Questions (FAQ)

What is the main purpose of wire mesh decking?

It provides a safe and sturdy platform for pallets and hand-stacked items on pallet racking, improving warehouse safety and structural integrity.

Is wire mesh decking fire-resistant?

Yes, the open-mesh design allows water from overhead fire sprinklers to pass through to lower levels, which is a key fire safety requirement in many warehouses.

What does "Waterfall" mean in wire decking?

"Waterfall" refers to the edge of the mesh that bends over the top of the rack beam, preventing the deck from moving and securing it in place.

How do I choose between U-shape and Flared supports?

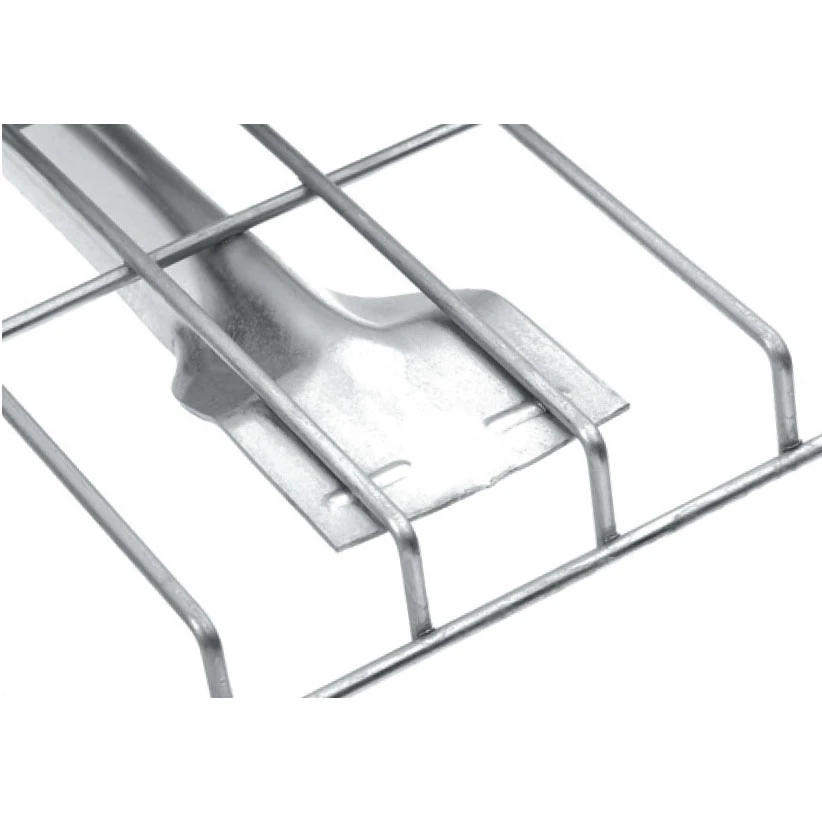

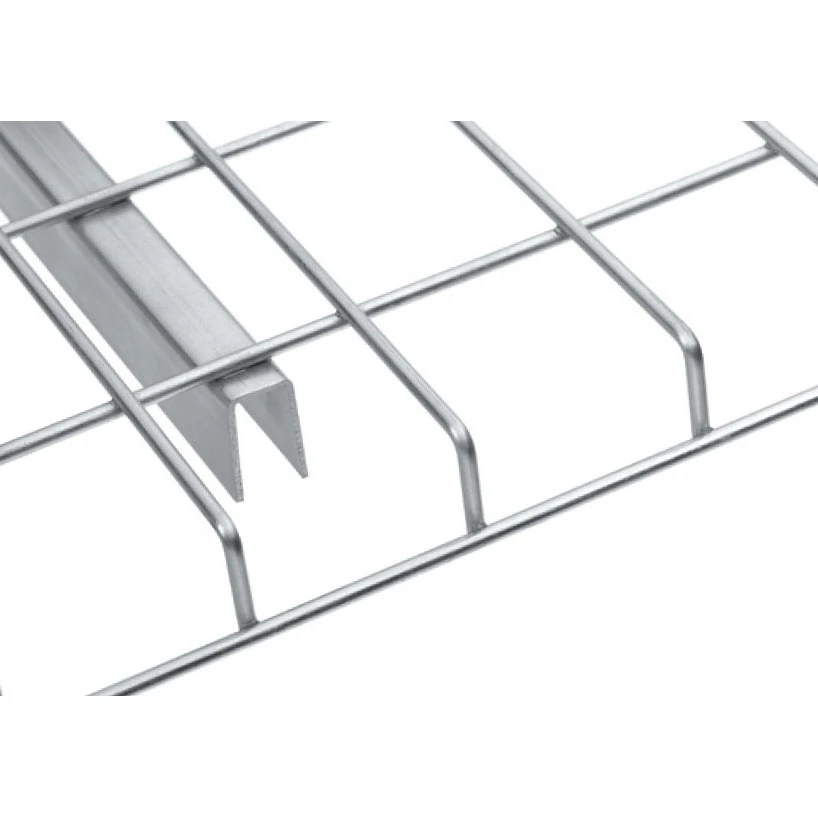

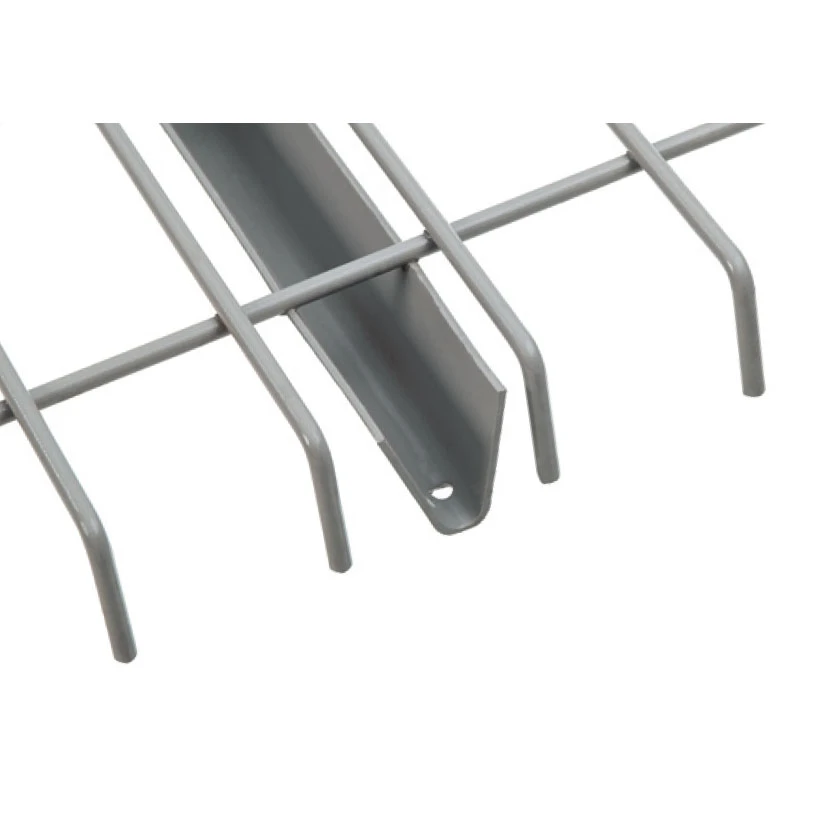

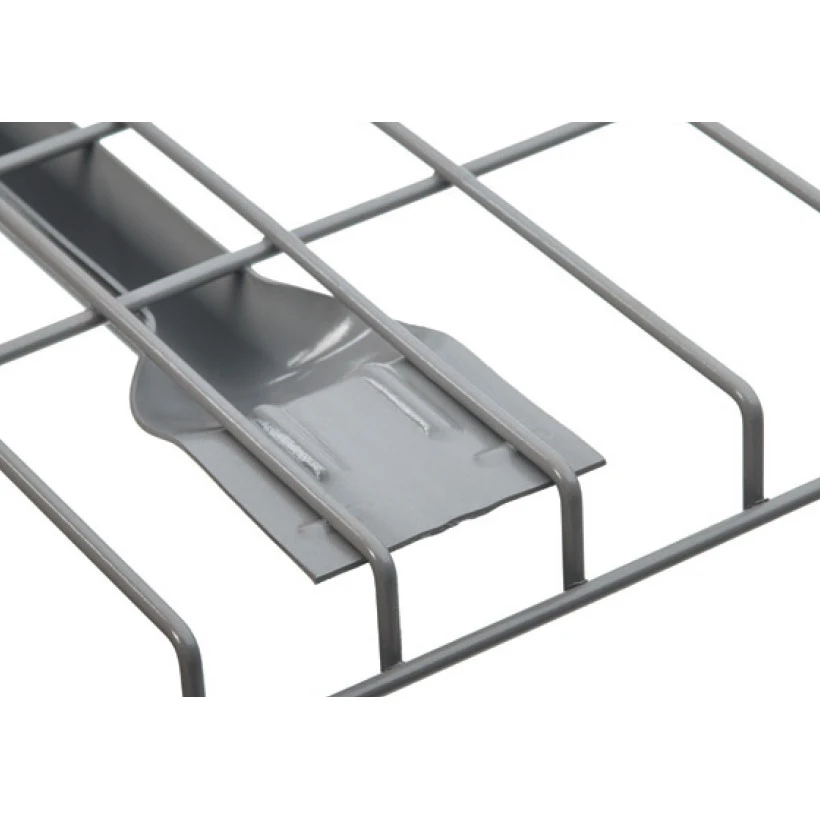

U-shape channels sit in the step of the beam, while Flared supports can sit on top of box beams or other non-step beams, providing universal fit.

Does wire mesh decking require special tools for installation?

No, most wire decking simply drops into place onto the pallet rack beams without the need for bolting or specialized tools.

Can it support different weight capacities?

Yes, capacity depends on the wire gauge and the number of support channels. Standard decks are designed for Uniformly Distributed Loads (UDL).
